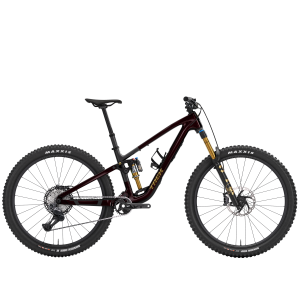

Fuel EX 9.8 XT Di2 Gen 7	Fuel EX 9.8 XT Di2 Gen 7 $6,499.99	Buy
Fuel EX 9.8 XT Di2	Fuel EX 9.8 XT Di2 $6,499.99	Buy
Fuel+ MX 9.8 XT Di2 Gen 2	Fuel+ MX 9.8 XT Di2 Gen 2 $8,499.97	Buy
Fuel+ MX 9.8 XT Gen 2	Fuel+ MX 9.8 XT Gen 2 $7,999.99	Buy
Fuel MX 9.8 XT DI2	Fuel MX 9.8 XT DI2 $6,499.99	Buy
Fuel MX 9.8 XT	Fuel MX 9.8 XT $5,999.99	Buy
Fuel EX 9.8 Eagle 90	Fuel EX 9.8 Eagle 90 $6,199.99	Buy
Fuel EX 9.8 Eagle 90 Gen 7	Fuel EX 9.8 Eagle 90 Gen 7 $5,999.99	Buy
Fuel+ EX 9.8 XT Gen 2	Fuel+ EX 9.8 XT Gen 2 $7,999.97	Buy
Fuel LX 9.8 XT Di2 Gen 7	Fuel LX 9.8 XT Di2 Gen 7 $6,699.99	Buy
Fuel+ EX 9.8 XT Di2 Gen 2	Fuel+ EX 9.8 XT Di2 Gen 2 $8,499.99	Buy
Fuel LX 9.8 XT	Fuel LX 9.8 XT $6,499.99	Buy
Fuel LX 9.8 XT DI2	Fuel LX 9.8 XT DI2 $6,999.99	Buy
Powerfly+ FS 4 Gen 4	Powerfly+ FS 4 Gen 4 $4,499.99	Buy
FX+ 1 Midstep	FX+ 1 Midstep $1,999.99	Buy
Fuel EX 9.9 X0 AXS	Fuel EX 9.9 X0 AXS $8,499.99	Buy
Fuel EX 9.9 X0 AXS Gen 7	Fuel EX 9.9 X0 AXS Gen 7 $8,499.99	Buy
Checkpoint SL Gen 3 Frameset	Checkpoint SL Gen 3 Frameset $1,199.93	Buy
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Trek Top Fuel Frame

Intended Use

Cross Country

Rider

Sizes and Geometry

15.5

17.5

18.5

19.5

21.5

View Full Geometry

Size	15.5	17.5	18.5	19.5	21.5
Top Tube Length	21.6	23	23.8	24.6	25.2
Head Tube Angle	70°	70°	70°	70°	70°
Head Tube Length	4.1	5.1	5.5	5.9	6.7
Seat Tube Angle	73.5	73.5	73.5	73.5	73.5
Seat Tube Length	15.5	17.5	18.5	19.5	21.5
Bottom Bracket Height	12.9	12.9	12.9	12.9	12.9
Chainstay Length	16.8	16.8	16.8	16.8	16.8
Wheelbase	41.4	43	43.8	44.6	45.3
Standover	28.3	28.6	28.7	28.9	29.6

Sizes Additional Info

Wheel Size

Frame Material

Carbon Fiber

Frame Material Details

OCLV Carbon Fiber

Rear Travel

100mm

Rear Shock

Fox Factory Series Float RP-2 BSD w/Kashima coat, remote ProPedal, rebound; 6.5x1.5", tuned by Trek in California

Head Tube Diameter

1.5 Taper

Bottom Bracket

BB90

Rear Dropout / Hub Dimensions

135x5

Front Derailleur Size

Seatpost Diameter

Bontrager Race XXX Lite, 34.0mm, 5mm offset

Max Tire Size

ISCG Tabs

Bottle Cage Mounts

Colors

Crystal Pearl White/Gloss Carbon

Warranty

Weight

N/A

Miscellaneous

Comes with: Cane Creek IS-3, E2, alloy cartridge

Price

$4,199.99
