Allied Cycle Works BC40 Frame

Views:
Allied Cycle Works BC40 (Matte Black)
 Allied Cycle Works BC40 Frame  Allied Cycle Works BC40 Frame
Create New Tag

Compare to other Frames

Need more info? View our Cross Country Mountain Bike Frames or Trail Mountain Bike Frames buyer's guides.

Specifications

Product Allied Cycle Works BC40 Frame
Riding Type Cross Country, Trail
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length
Head Tube Angle 66.5° 66.5° 66.5° 66.5°
Head Tube Length 95mm 105mm 120mm 135mm
Seat Tube Angle 76° 76° 76° 76°
Seat Tube Length
Bottom Bracket Height 40mm drop 40mm drop 40mm drop 40mm drop
Chainstay Length 435mm 435mm 435mm 435mm
Wheelbase 1145mm 1174mm 1210mm 1241mm
Standover 705mm 705mm 705mm 705mm
Reach 420mm 445mm 475mm 501mm
Stack 598mm 609mm 622mm 633mm
* Additional Info All specifications listed are with 120mm travel fork with 44mm offset
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details Carbon front and rear triangles, machined aluminum linkage and floating brake mount
Rear Travel 120mm
Rear Shock FOX FLOAT DPS Factory, 3-position lever, Kashima coating
Option: RockShox SIDLuxe Ultimate, TwistLoc remote lockout
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Bottom Bracket 73mm English/BSA threaded
Rear Dropout / Hub Dimensions
Front Derailleur Size N/A (1x-specific)
Seatpost Diameter 31.6mm
Max Tire Size
ISCG Tabs None
Bottle Cage Mounts Two inside front triangle
Colors Stock: Matte Black
Personalized (+$300): Ecru, Cavalry Blue, Dove Grey, Gulf, Wineberry, Miami Vice Green, Matte Slate, Matte Quicksand

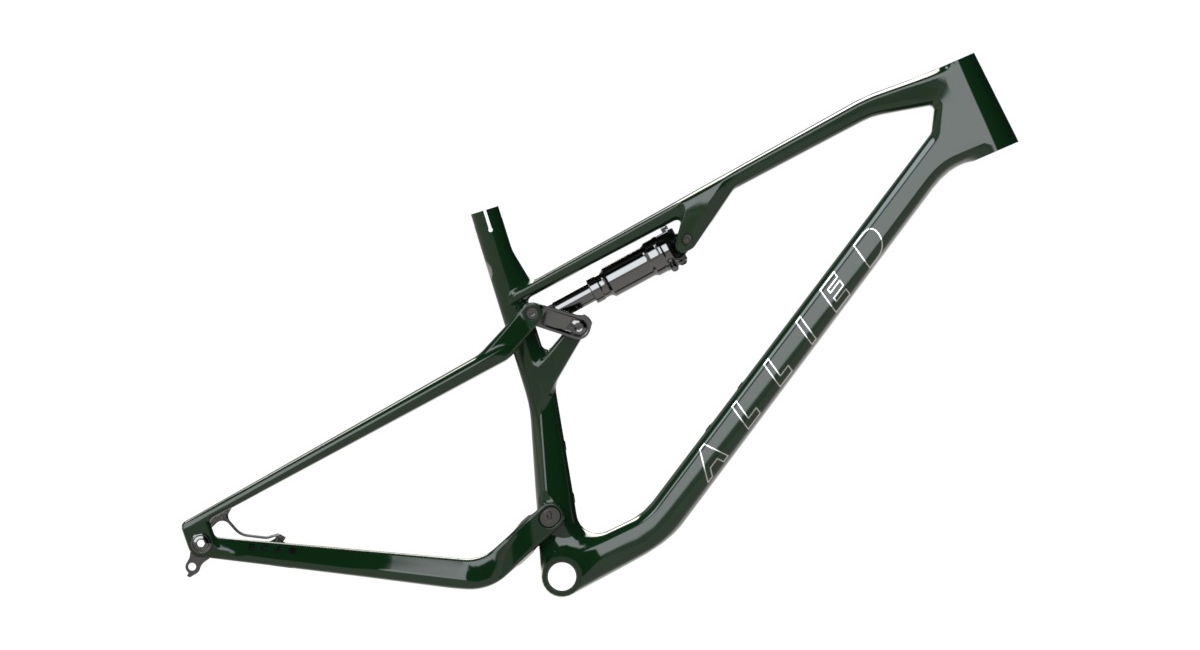

Personalized (+$500): Midnight Blue Metallic, British Racing Green, Maroon Metallic
Premium (+$800): Harlequin - Purple to Green, Harlequin - Blue to Red, Harlequin - Magenta to Gold
Warranty Lifetime
Weight 4 lb 4.8 oz (1,950 g)
Miscellaneous • 2022 version
• Single pivot flex stays rear suspension design
• Internal cable routing
• Designed for 120mm travel forks
• Weight given for size LG
• Includes fork: FOX FLOAT 34 Step-Cast (SC) Factory, FIT4 damper, 3-position lever, Kashima coating
• Fork option: RockShox SID Ultimate, Charger Race Day damper, TwistLoc remote lockout
• Includes headset: Cane Creek HellBender 70 Lite, IS41/IS52
Price $5,590
More Info ALLIED Cycle Works Debuts Domestic Carbon Mountain Bike (press release)
