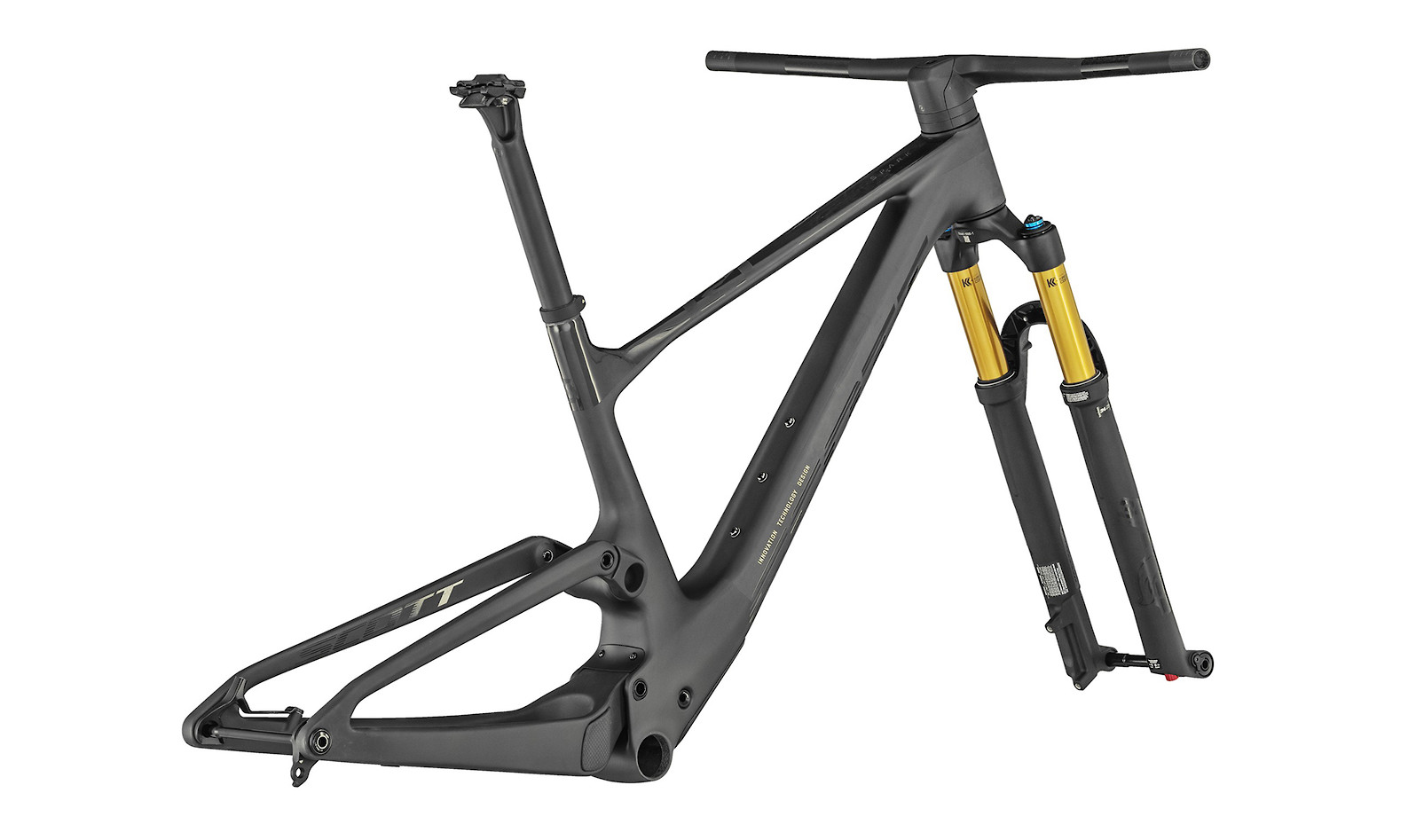

Scott Spark RC HMX SL Frame

Views:
Create New Tag

Compare to other Frames

Need more info? View our Trail Mountain Bike Frames buyer's guide.

Specifications

Product Scott Spark RC HMX SL Frame
Riding Type Trail
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 562mm 590mm 614mm 642mm
Head Tube Angle 67.2° 67.2° 67.2° 67.2°
Head Tube Length 90mm 90mm 105mm 115mm
Seat Tube Angle 75.9° 76.1° 76.6° 76.9°
Seat Tube Length 415mm 440mm 490mm 540mm
Bottom Bracket Height 330mm (45mm drop) 330mm (45mm drop) 330mm (45mm drop) 330mm (45mm drop)
Chainstay Length 437.5mm 437.5mm 437.5mm 437.5mm
Wheelbase 1129mm 1159mm 1190mm 1231mm
Standover 758mm 765mm 776mm 799mm
Reach 411mm 441mm 471mm 501mm
Stack 602.5mm 602.5mm 616.0mm 625.0mm
* Additional Info Head angle adjustable (+/- 6°) by rotation of headset cups. All specifications listed are with 120mm travel fork.
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details HMX SL carbon front and rear triangles, molded chainstay protection
Rear Travel 120mm
Rear Shock FOX FLOAT DPS NUDE 5 Factory, EVOL, 3-mode adjust via Scott TwinLoc 2 (Lockout, Traction Control, Descend), rebound adjust, Kashima Coating, trunnion mount, 165mm x 45mm
Head Tube Diameter Straight, 56mm
Bottom Bracket 92mm press-fit
Rear Dropout / Hub Dimensions 148x12mm Boost
Front Derailleur Size N/A (1x-specific)
Seatpost Diameter 31.6mm
Max Tire Size
ISCG Tabs None
Bottle Cage Mounts Two inside front triangle
Colors Black
Warranty 5 years
Weight 4 lb 2.0 oz (1,870 g)
Miscellaneous • 2022 version
• Integrated Suspension Technology (rear shock located within frame, accessible via lower hatch)
• Single Pivot/Flex Stays rear suspension design
• Scott TwinLoc 2 system provides three suspension modes (Lockout, Traction Control, Descend) for shock and fork via handlebar-mounted remote
• Rear travel by mode: Lockout 0mm; Traction Control 80mm; Descend 120mm
• Head angle adjustable (+/- 6°) by rotation of headset cups
• Internal cable routing, with rear cables/hose routed through stem/headset via Cable Integration System
• Integrated sag meter at rocker link pivot
• Port in non-drive-side seat tube to view rear travel o-ring on shock
• SRAM UDH (Universal Derailleur Hanger)
• Weight given with shock

Includes:
• Scott TwinLoc 2 remote control shifter kit
• Headset: Syncros/ACROS Pro
• Handlebar/stem: Syncros Fraser iC SL XC Carbon integrated bar/stem, 740mm width, 8° backsweep, 12° drop, Cable Integration System
• Seatpost: Syncros carbon
• Syncros rear axle
• Fork: FOX FLOAT 34 Step-Cast (SC) Factory, FIT4 damper, 3-mode adjust via Scott TwinLoc 2 (Lockout, Traction Control, Descend), low-speed compression adjust, rebound adjust, Kashima Coating, 44mm offset, 15x110mm thru-axle, 120mm travel
Price $5,999.99
More Info scott-sports.com
