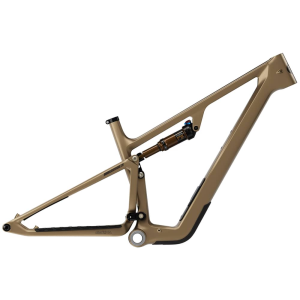

Ibis Ripley SL Frame

frame blue.jpg?VersionId=nAqIfQlkIIHqE3wzE2t3qWHlkIId

Ibis


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $4,499.00	Buy
Ibis Bicycles \| Ripley Sl Frameset 2026 \| Carbon \| Xm	Ibis Bicycles \| Ripley Sl Frameset 2026 \| Carbon \| Xm $4,499.00	Buy
Ibis Bicycles \| Ripley Sl Xtr Bike 2026 \| Carbon \| M	Ibis Bicycles \| Ripley Sl Xtr Bike 2026 \| Carbon \| M $11,449.00	Buy
Ibis Bicycles \| Ripley Sl 90 Bike 2026 \| Carbon \| S	Ibis Bicycles \| Ripley Sl 90 Bike 2026 \| Carbon \| S $6,249.00	Buy
Ibis Bicycles \| Ripley Sl Xt Bike 2026 \| Blue \| Xl	Ibis Bicycles \| Ripley Sl Xt Bike 2026 \| Blue \| Xl $7,799.00	Buy
Ibis Bicycles \| Ripley V5 Deore Bike 2026 \| Blue \| Xl	Ibis Bicycles \| Ripley V5 Deore Bike 2026 \| Blue \| Xl $4,999.00	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Ibis Ripley SL Frame

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	SM	MD	XM	LG	XL
Top Tube Length	577mm	607mm	632mm	652mm	677mm
Head Tube Angle	66°	66°	66°	66°	66°
Head Tube Length	85mm	90mm	112mm	125mm	140mm
Seat Tube Angle	74.25°	74.50°	74.75°	75.00°	75.25°
Seat Tube Length	377mm	403mm	410mm	438mm	470mm
Bottom Bracket Height	329mm (42mm drop)	332mm (39mm drop)	335mm (36mm drop)	339mm (32mm drop)	342mm (29mm drop)
Chainstay Length	432mm	434mm	436mm	438mm	440mm
Wheelbase	1130mm	1170mm	1201mm	1228mm	1263mm
Standover	710mm	727mm	732mm	737mm	752mm
Reach	407mm	440mm	463mm	484mm	509mm
Stack	597mm	599mm	617mm	625mm	635mm
Additional Info	• All specifications listed are with 130mm travel fork with 542mm axle-to-crown length • Saddle heights for effective seat tube angle: 650mm (SM), 700mm (MD), 745mm (XM), 790mm (LG), 835mm (XL)

Sizes Additional Info

• All specifications listed are with 130mm travel fork with 542mm axle-to-crown length

• Saddle heights for effective seat tube angle: 650mm (SM), 700mm (MD), 745mm (XM), 790mm (LG), 835mm (XL)

View Full Geometry

Size	SM	MD	XM	LG	XL
Top Tube Length	577mm	607mm	632mm	652mm	677mm
Head Tube Angle	66°	66°	66°	66°	66°
Head Tube Length	85mm	90mm	112mm	125mm	140mm
Seat Tube Angle	74.25°	74.50°	74.75°	75.00°	75.25°
Seat Tube Length	377mm	403mm	410mm	438mm	470mm
Bottom Bracket Height	329mm (42mm drop)	332mm (39mm drop)	335mm (36mm drop)	339mm (32mm drop)	342mm (29mm drop)
Chainstay Length	432mm	434mm	436mm	438mm	440mm
Wheelbase	1130mm	1170mm	1201mm	1228mm	1263mm
Standover	710mm	727mm	732mm	737mm	752mm
Reach	407mm	440mm	463mm	484mm	509mm
Stack	597mm	599mm	617mm	625mm	635mm
Additional Info	• All specifications listed are with 130mm travel fork with 542mm axle-to-crown length • Saddle heights for effective seat tube angle: 650mm (SM), 700mm (MD), 745mm (XM), 790mm (LG), 835mm (XL)

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

Carbon Fiber Monocoque front and rear triangles; molded chainstay, seatstay, lower link, and lower down tube protection; compatible with Ibis Truckee shuttle guard

Rear Travel

117mm

Rear Shock

FOX FLOAT SL Factory, Kashima coating, 210mm length x 50mm stroke

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Bottom Bracket

73mm English/BSA threaded

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Front Derailleur Size

Not compatible (1x-specific)

Seatpost Diameter

34.9mm

Max Tire Size

29" x 2.4"

ISCG Tabs

None

Bottle Cage Mounts

One (26oz. capacity) inside front triangle on SM, two (22oz. capacity each) inside front triangle on MD-XL

Colors

Gold Rush, Raw Carbon, Tahoe Blue

Warranty

Lifetime frame and linkage bushings; 1 year paint and finish

Weight

Size XM without shock: 4 lb 0 oz (1814 g)

Size XM with FOX FLOAT SL shock: 5 lb 0 oz (2268 g)

Miscellaneous

• 2026 V1 version
• dw-link rear suspension design
• STOW (Snacks, Tools, Or Whatever) internal frame storage in down tube; includes two Cotopaxi internal bags (one roll and one pouch)
• Internal cable routing with internal tunnels on front triangle and integrated external routing on rear triangle
• SRAM UDH (Universal Derailleur Hanger)
• Designed for 130mm travel forks, also compatible with 120mm travel forks
• 160mm post-style rear brake mounts; 180mm max rear rotor
• Includes integrated upper slider chainguide

Price

$4,499.00
