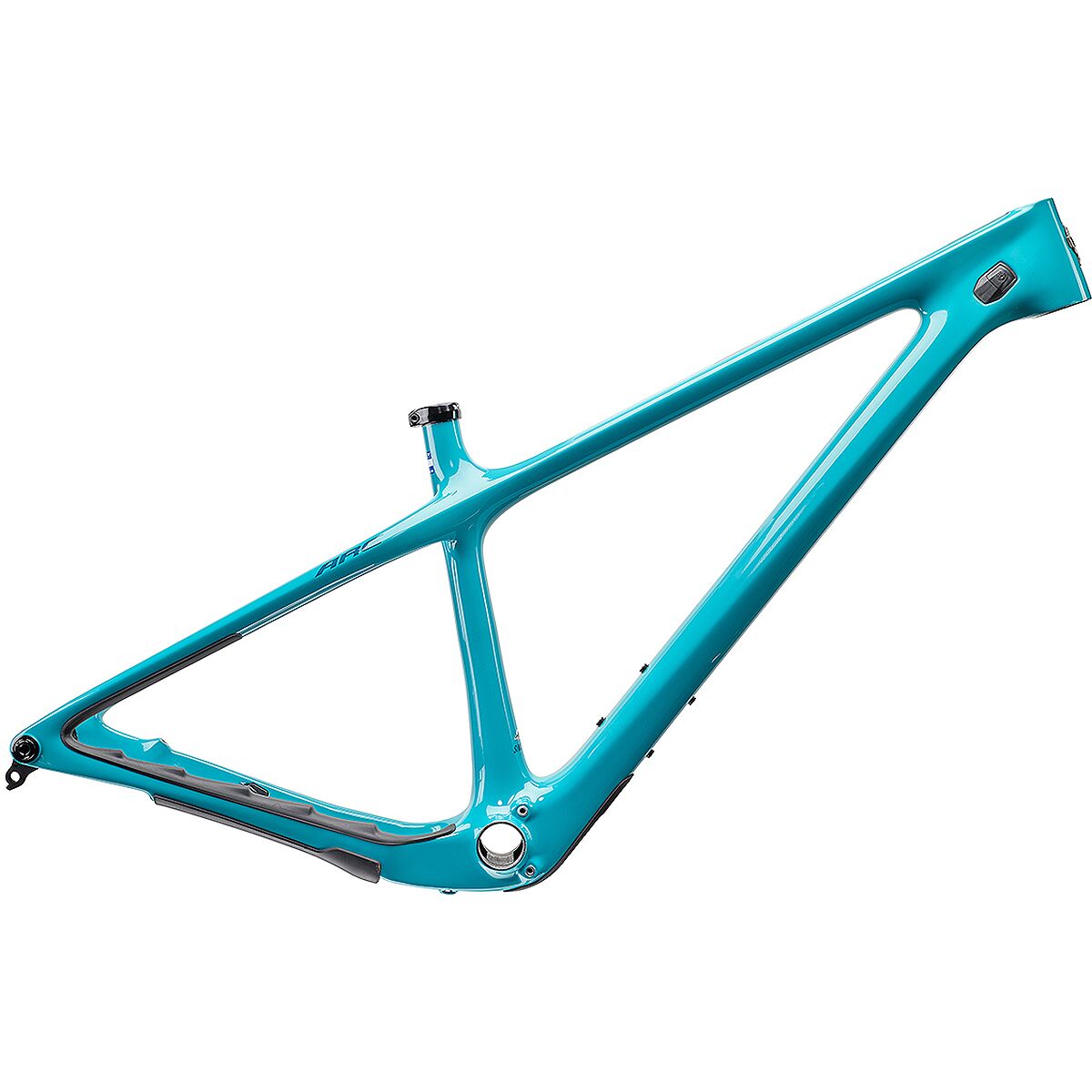

Yeti ARC Frame

Views:
2021 Yeti ARC (Turquoise)
 Yeti ARC Frame  Yeti ARC Frame
Create New Tag

Compare to other Frames

Need more info? View our Cross Country Mountain Bike Frames or Trail Mountain Bike Frames buyer's guides.

Specifications

Product Yeti ARC Frame
Riding Type Cross Country, Trail
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length 577.4mm 604.3mm 626.0mm 653.4mm
Head Tube Angle 67° 67° 67° 67°
Head Tube Length 95.0mm 102.9mm 109.6mm 119.6mm
Seat Tube Angle 76° 76° 76° 76°
Seat Tube Length 380mm 410mm 450mm 495mm
Bottom Bracket Height 310mm 310mm 310mm 310mm
Chainstay Length 433mm 433mm 433mm 433mm
Wheelbase 1143.5mm 1171.5mm 1194.2mm 1223.1mm
Standover 723mm 722mm 720mm 720mm
Reach 420mm 445mm 465mm 490mm
Stack 631.7mm 638.9mm 645.1mm 654.3mm
* Additional Info Bottom bracket heights are listed as "estimated" by Yeti
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details TURQ Series carbon fiber frame; down tube, seatstay, and chainstay protection
Rear Travel Hardtail
Rear Shock N/A
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Bottom Bracket BB92 press-fit
Rear Dropout / Hub Dimensions 148x12mm Boost
Front Derailleur Size N/A
Seatpost Diameter 31.6mm
Max Tire Size 29" x 2.6"
ISCG Tabs Integrated ISCG 05 tabs
Bottle Cage Mounts Dual sided downtube mounts
Colors Black, turquoise
Warranty Lifetime main frame, 1 year paint and finish
Weight 2 lb 13.1 oz (1,279 g)
Miscellaneous Internally routed cable tubes with secure closures at entry and exit points
New chain slap protector
Integrated derailleur hanger
2021 model year release
Price $1,900
