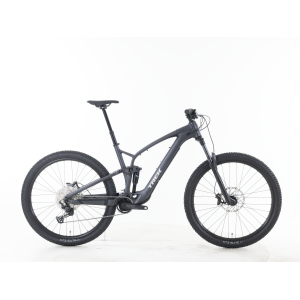

Fuel EXe 5
$5,499.99

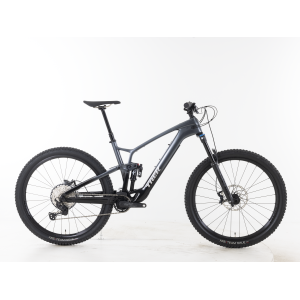

Fuel EXe 9.7
$8,099.99

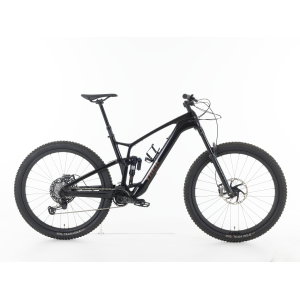

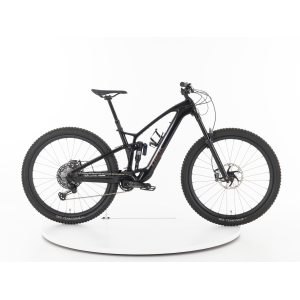

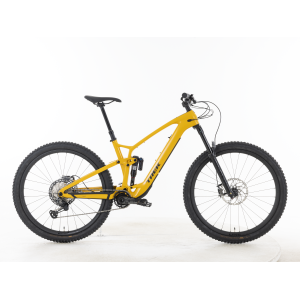

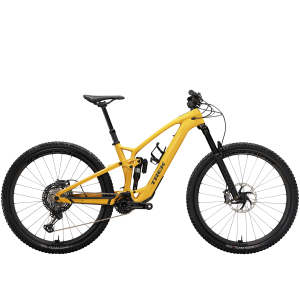

Fuel EXe 9.9 XTR
$13,000.00

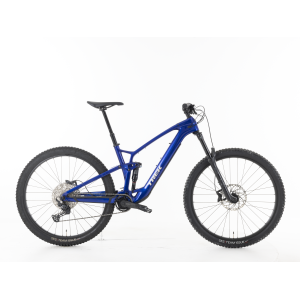

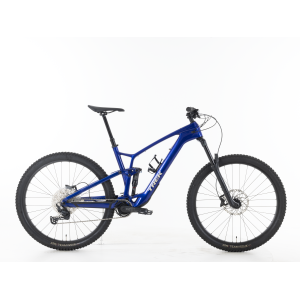

Fuel EXe 9.5
$6,499.99

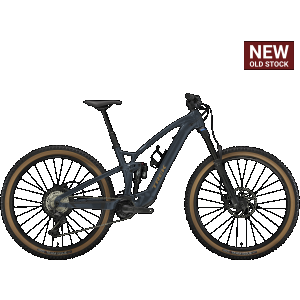

Fuel EXe 8 XT
$6,599.99

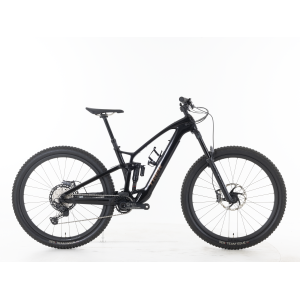

Fuel EXe 9.8 XT
$9,299.99
Fuel EX 5 Gen 5
$2,499.99

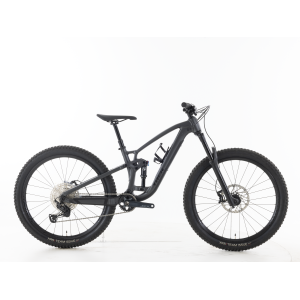

Fuel EX 7 Gen 6
$3,199.99
Fuel EX 8 Gen 6
$3,999.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product

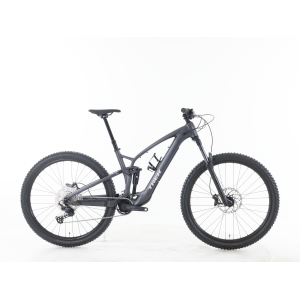

Trek Fuel EXe 5 E-Bike
Model Year
2024
Riding Type
Enduro / All-Mountain
Trail
Rider
Unisex
Sizes and Geometry
SM (High, Low)
MD (High, Low)
LG (High, Low)
XL (High, Low)
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
TQ HPR50, Harmonic Pin Ring drive transmission, 50 Nm max torque, 300W peak power, 250W maximium continuous power
Battery
TQ, integrated, removable
Optional 160 Wh range extender battery fits into included standard water bottle cage with built-in retention strap
Battery Capacity
360 Wh
Display/Remote
Display: TQ LED, top tube integrated, 2" screen, Bluetooth and ANT+ connectivity
Display screens: battery/ride time, range/ride time, speed/average speed, rider power/motor power
Remote: TQ 2-button
Modes
Three dynamic assist modes plus walk assist
Max Speed with Assist
EU and APAC: 15.5 mph (25 km/h)
All other countries: 20 mph (32.2 km/h)
Frame Material
Aluminum
Frame Material Details

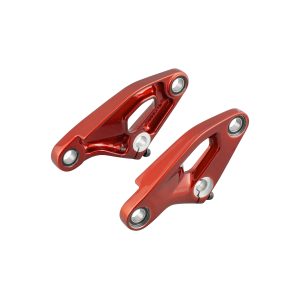

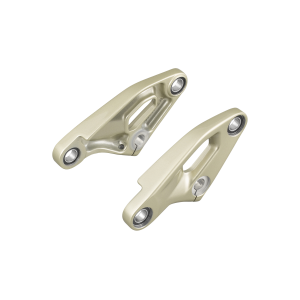

Alpha Platinum Aluminum; alloy rocker link; molded chainstay and down tube protection
Rear Travel
140mm
Rear Shock
X-Fusion Pro 2, 2-position compression lever, 205mm length x 60mm stroke
Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, 32mm stanchions, 42mm offset, Maxle Stealth thru-axle
Fork Travel
150mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Integrated cartridge bearings, angle adjust cup compatible (sold separately)
Handlebar
Bontrager Rhythm Comp, alloy, 750mm width, 15mm rise, 31.8mm clamp diameter
Stem
Bontrager, alloy, 50mm length, 7° rise, 31.8mm bar clamp, Blendr compatible
Grips
Bontrager XR Trail Comp, nylon lock-on
Brakes
Tektro Orion HD-M745, 4-piston, Tektro 6-bolt 203mm rotors
Brake Levers
Tektro Orion HD-M745
Drivetrain
1x
Shifters
Shimano Deore M6100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M6100, 12-speed, long cage
Chainguide
None
Cranks
e*thirteen e*spec Plus, 165mm length
Chainrings
e*thirteen e*spec, 32 tooth, alloy
Pedals
None
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Bontrager Line 30 wheelset, 32 hole, tubeless ready
Hubs
Bontrager, sealed bearings, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes
Bontrager Line wheelset
Tires
Bontrager XT3 Elite, wire bead, 60 TPI, 29" x 2.4"
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
TranzX JD-YSI-22PLQ dropper
Drop: 100mm (SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.5"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Matte Blue Sage, Matte Dnister Black
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
45 lb 13.7 oz (20,800 g)
Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Head tube angle adjustable via optional headset cups (sold separately)
• Compatible with mixed ("Mullet") wheel setups (29" front, 27.5" rear) with Mino Link flip chip in High position
• Internal cable routing
• Compatible with SRAM UDH (Universal Derailleur Hanger)
• Trek Central mobile app provides motor assist tuning, range monitoring and calculation, navigation and tracking, suspension and tire pressure recommendations, pressure monitoring with AirWiz and TireWiz sensors, and integrates with third-party apps
• Weight given for size MD set up tubeless
• Includes TQ 4A battery charger
• Includes Bontrager TLR tubeless rim strips
Price
$5,499.99
