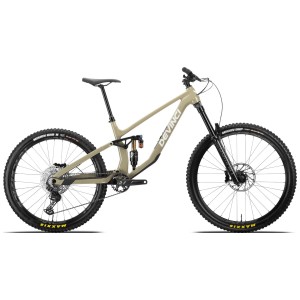

Devinci Spartan Deore 12s Complete Mountain Bike 2026 - Large	Devinci Spartan Deore 12s Complete Mountain Bike 2026 - Large $3,899.00	Buy

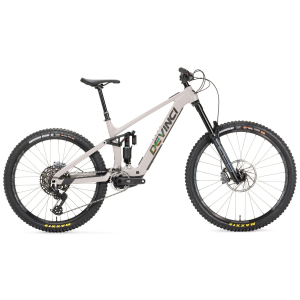

Devinci E-Spartan Lite Eagle 90 E-Mountain Bike 2026 - Large in Gray \| Aluminum	Devinci E-Spartan Lite Eagle 90 E-Mountain Bike 2026 - Large in Gray \| Aluminum $7,899.00	Buy
Devinci Spartan Carbon 29 GX 12s Complete Mountain Bike 2024 - Medium	Devinci Spartan Carbon 29 GX 12s Complete Mountain Bike 2024 - Medium $4,649.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Devinci Spartan Frame

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

SM (MX/Short, MX/Long, 29"/Short, 29"/Long)

MD (MX/Short, MX/Long, 29"/Short, 29"/Long)

LG (MX/Short, MX/Long, 29"/Short, 29"/Long)

XL (MX/Short, MX/Long, 29"/Short, 29"/Long)

View Full Geometry

Size	SM (MX/Short, MX/Long, 29"/Short, 29"/Long)	MD (MX/Short, MX/Long, 29"/Short, 29"/Long)	LG (MX/Short, MX/Long, 29"/Short, 29"/Long)	XL (MX/Short, MX/Long, 29"/Short, 29"/Long)
Top Tube Length	569, 570, 596, 570	594, 595, 594, 595	621, 622, 621, 622	647, 648, 647, 648
Head Tube Angle	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°
Head Tube Length	105	115	120	125
Seat Tube Angle	78.8°, 78.3°, 78.8°, 78.3°	78.5°, 78.0°, 78.5°, 78.0°	78.0°, 77.6°, 78.0°, 77.6°	77.6°, 77.1°, 77.6°, 77.1°
Seat Tube Length	390	420	450	470
Bottom Bracket Height	347, 340, 347, 340	347, 340, 347, 340	347, 340, 347, 340	347, 340, 347, 340
Chainstay Length	440, 447, 443, 450	440, 447, 443, 450	450, 457, 453, 460	450, 457, 453, 460
Wheelbase	1234, 1241, 1236, 1242	1258, 1265, 1260, 1267	1291, 1298, 1293, 1299	1313, 1320, 1315, 1322
Standover	745, 740, 745, 740	745, 740, 745, 740	745, 740, 745, 740	745, 740, 745, 740
Reach	445, 440, 445, 440	465, 460, 465, 460	485, 480, 485, 480	505, 500, 505, 500
Stack	627, 631, 627, 631	636, 640, 636, 640	640, 645, 640, 644	645, 649, 645, 649
Additional Info	• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) or 29" wheels front/rear, via two-position flip chip at lower shock mount • Chainstay length adjustable via two-position flip chip at main pivot • Above values given in millimeters (mm) unless otherwise noted • All specifications listed are with 170mm travel fork with 586mm axle-to-crown length and 44mm offset

Sizes Additional Info

• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) or 29" wheels front/rear, via two-position flip chip at lower shock mount
• Chainstay length adjustable via two-position flip chip at main pivot
• Above values given in millimeters (mm) unless otherwise noted
• All specifications listed are with 170mm travel fork with 586mm axle-to-crown length and 44mm offset

View Full Geometry

Size	SM (MX/Short, MX/Long, 29"/Short, 29"/Long)	MD (MX/Short, MX/Long, 29"/Short, 29"/Long)	LG (MX/Short, MX/Long, 29"/Short, 29"/Long)	XL (MX/Short, MX/Long, 29"/Short, 29"/Long)
Top Tube Length	569, 570, 596, 570	594, 595, 594, 595	621, 622, 621, 622	647, 648, 647, 648
Head Tube Angle	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°	63.5°, 63.0°, 63.5°, 63.0°
Head Tube Length	105	115	120	125
Seat Tube Angle	78.8°, 78.3°, 78.8°, 78.3°	78.5°, 78.0°, 78.5°, 78.0°	78.0°, 77.6°, 78.0°, 77.6°	77.6°, 77.1°, 77.6°, 77.1°
Seat Tube Length	390	420	450	470
Bottom Bracket Height	347, 340, 347, 340	347, 340, 347, 340	347, 340, 347, 340	347, 340, 347, 340
Chainstay Length	440, 447, 443, 450	440, 447, 443, 450	450, 457, 453, 460	450, 457, 453, 460
Wheelbase	1234, 1241, 1236, 1242	1258, 1265, 1260, 1267	1291, 1298, 1293, 1299	1313, 1320, 1315, 1322
Standover	745, 740, 745, 740	745, 740, 745, 740	745, 740, 745, 740	745, 740, 745, 740
Reach	445, 440, 445, 440	465, 460, 465, 460	485, 480, 485, 480	505, 500, 505, 500
Stack	627, 631, 627, 631	636, 640, 636, 640	640, 645, 640, 644	645, 649, 645, 649
Additional Info	• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) or 29" wheels front/rear, via two-position flip chip at lower shock mount • Chainstay length adjustable via two-position flip chip at main pivot • Above values given in millimeters (mm) unless otherwise noted • All specifications listed are with 170mm travel fork with 586mm axle-to-crown length and 44mm offset

Wheel Size

29"

Mixed Wheel Size

Frame Material

Aluminum

Frame Material Details

6061-T6 Aluminum Optimum G04; molded chainstay, seatstay, and lower down tube protection

Rear Travel

165mm

Rear Shock

RockShox Vivid Ultimate, trunnion mount, 205mm length x 65mm stroke

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Bottom Bracket

73mm English/BSA threaded

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Front Derailleur Size

Not compatible (1x-specific)

Seatpost Diameter

31.6mm

Max Tire Size

27.5" x 2.6"

ISCG Tabs

ISCG05

Bottle Cage Mounts

One inside front triangle

Colors

Greige

Warranty

Lifetime frame; 1 year pivots, paint, and decals

Weight

10 lb 5.8 oz (4,700 g)

Miscellaneous

• 2026 Gen 4 version
• Split Pivot four-bar rear suspension design
• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) or 29" wheels front/rear, via two-position flip chip at lower shock mount
• Chainstay length adjustable via two-position flip chip at main pivot
• SHED in-frame storage in down tube
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• 200mm post-style rear brake mounts
• Designed for 170mm travel forks with 44mm offset
• 28-34 tooth chainring compatibility
• Weight listed for size MD
• Includes headset: FSA Orbit 1.5 Zero Stack, ZS44 upper, ZS56 lower
• Includes seatpost clamp: single bolt, CNC alloy, 34.9mm
• Canadian price: 2899 CAD

Price

$2,399.00

More Info
