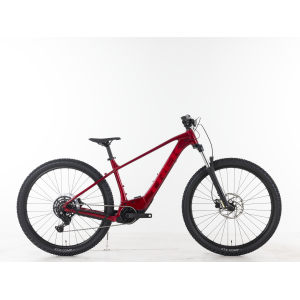

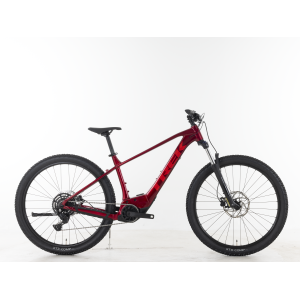

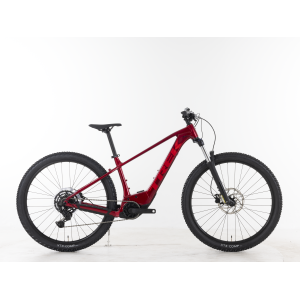

Marlin+ 6
$3,199.99

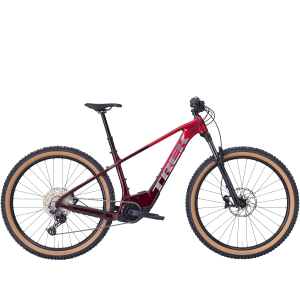

Marlin+ 8
$3,999.99

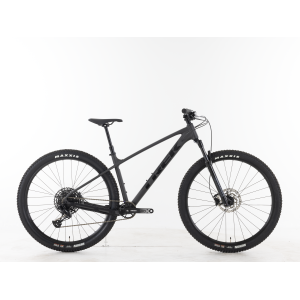

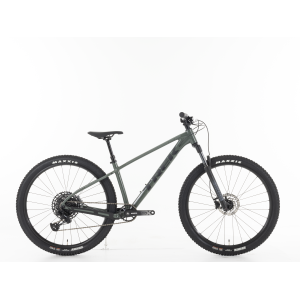

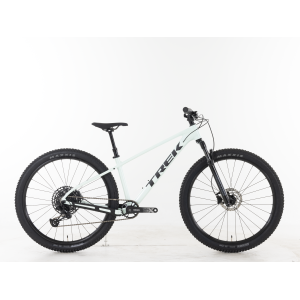

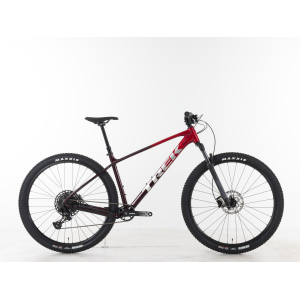

Marlin 7 Gen 3
$1,399.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Marlin+ 6 E-Bike
Model Year
2026
Intended Use
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
XS
SM
MD
LG
XL
View Full Geometry
Sizes Additional Info
• XS/SM have 27.5" wheels; MD-XL have 29" wheels


• All specifications listed are with 120mm travel fork with 46mm (XS/SM) or 42mm (MD-XL) offset
View Full Geometry
Wheel Size
27.5" (650b)
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Active Line Plus, 50 Nm max torque
Battery
Bosch CompactTube, integrated
Option: Bosch PowerMore range extender
Battery Capacity
400 Wh
Display/Remote
Bosch Purion 200, full-color screen
Modes
Eco, Tour, Auto, Turbo, and walk assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material
Aluminum
Frame Material Details
Alpha Gold aluminum, molded chainstay and motor protection
Rear Travel
Hardtail
Rear Shock
None
Fork
SR Suntour XCM 34, air spring, lockout, 44mm offset
Fork Travel
XS: 100mm; SM-XL: 120mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Semi-integrated, loose ball bearings
Handlebar
Bontrager alloy, 31.8mm clamp diameter
XS/SM: 720mm width, 15mm rise; MD-XL: 780mm width, 40mm rise
Stem
Bontrager Comp, 7° rise, 31.8mm bar clamp
Length: 35mm (XS/SM), 50mm (MD/LG), 60mm (XL)
Grips
Trek Line Comp, nylon lock-on
Brakes
Tektro HD-M275, 2-piston
Rotors: Tektro, CENTER LOCK, 203mm
Brake Levers
Tektro HD-M275
Drivetrain
1x
Shifters
Shimano CUES U4000, 9-speed
Front Derailleur
None
Rear Derailleur
Shimano CUES U4000, 9-speed
Chainguide
None
Cranks
FSA CK-220 Alloy, 165mm length
Chainrings
FSA, steel, 32 tooth
Pedals
VP-536 nylon platform
Chain
Shimano LG500
Cassette
Shimano LG300, 9-speed, 11-46 tooth, LINKGLIDE
Rims
Bontrager Connection, double-wall alloy, 20mm width, 32 hole
Hubs
Shimano TC500 alloy, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with HG driver
Spokes

Tires
Bontrager Montrose Comp, wire bead, 30 TPI, tubeless ready, 2.4"
Saddle
Bontrager Verse P3, steel rails
Seatpost
TranzX JD-YSI34 dropper
Drop: 100mm (XS/SM), 150mm (MD/LG), 170mm (XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
2.6"
Bottle Cage Mounts
Two inside front triangle
Colors
Fjord Blue, Matte Keswick Green
Warranty
Lifetime frame, 2 years Trek/Bontrager components and paint/decals
Weight
50 lb 7.8 oz (22900 g)
Miscellaneous
• XS/SM have 27.5" wheels; MD-XL have 29" wheels
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Rack, fender, and kickstand mounts
• Weight listed for size MD
• Includes Bosch standard 2A 110V Smart System battery charger
• Power settings customizable via Bosch eBike Flow Mobile App
