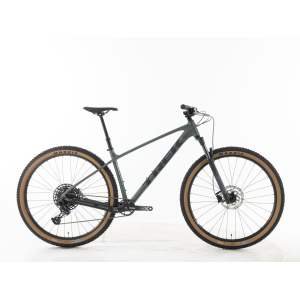

Marlin 7 Gen 3
$1,399.99
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Marlin+ 8 E-Bike
Model Year
2025
Intended Use
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
XS
SM
MD
LG
XL
View Full Geometry
Sizes Additional Info
• XS/SM have 27.5" wheels; MD-XL have 29" wheels
• All specifications listed are with 120mm travel fork with 46mm (XS/SM) or 42mm (MD-XL) offset
View Full Geometry
Wheel Size
27.5" (650b)
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Active Line Plus, 50 Nm max torque
Battery
Bosch CompactTube, integrated
Option: Bosch PowerMore range extender
Battery Capacity
400 Wh
Display/Remote
Bosch Purion 200, full-color screen
Modes
Eco, Tour, Auto, Turbo, and walk assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.19 km/h)
Other: 15.5 mph (24.94 km/h)
Frame Material
Aluminum
Frame Material Details
Alpha Gold aluminum, molded chainstay and motor protection
Rear Travel
Hardtail
Rear Shock
None
Fork
RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, 32mm stanchions, 42mm offset
Fork Travel
XS: 100mm; SM-XL: 120mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Semi-integrated, sealed cartridge bearings, alloy cups
Handlebar
Bontrager alloy, 15mm rise, 31.8mm clamp diameter
Width: 720mm (XS/SM), 750mm (MD-XL)
Stem
Bontrager Comp, 7° rise, 31.8mm bar clamp
Length: 35mm (XS/SM), 50mm (MD/LG), 60mm (XL)
Grips
Bontrager XR Trail Comp, nylon lock-on
Brakes
Shimano MT420, 4-piston
Rotors: Shimano RT64, CENTER LOCK, 203mm
Brake Levers
Shimano MT4100
Drivetrain
1x
Shifters
Shimano Deore M6100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M6100, 12-speed, long cage
Chainguide
None
Cranks
FSA CK-220 Alloy, 165mm length
Chainrings
FSA, steel, 32 tooth
Pedals
VP-536 nylon platform
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Bontrager Line TLR 30 Alloy, 28 hole, tubeless ready
Hubs
Shimano TC500 alloy, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes

Tires
Bontrager Gunnison Pro XR, dual compound, aramid bead, 60 TPI, tubeless ready, 2.6"
Saddle
Bontrager Verse P3, chromoly rails; or Bontrager Arvada, hollow chromoly rails, 138mm width
Seatpost
TranzX JD-YSP18 dropper
Drop: 100mm (XS/SM), 150mm (MD-XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
2.6"
Bottle Cage Mounts
Two inside front triangle
Colors
Mercury, Purple Flip to Black Fade
Warranty
Lifetime frame, 2 years Trek/Bontrager components and paint/decals
Weight
47 lb 6 oz (21,490 g)
Miscellaneous
• XS/SM have 27.5" wheels; MD-XL have 29" wheels
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Rack, fender, and kickstand mounts
• Weight listed for size MD
• Includes Bontrager TLR rim strips and tire sealant
• Power settings customizable via Bosch eBike Flow Mobile App
Price
$3,699.99
