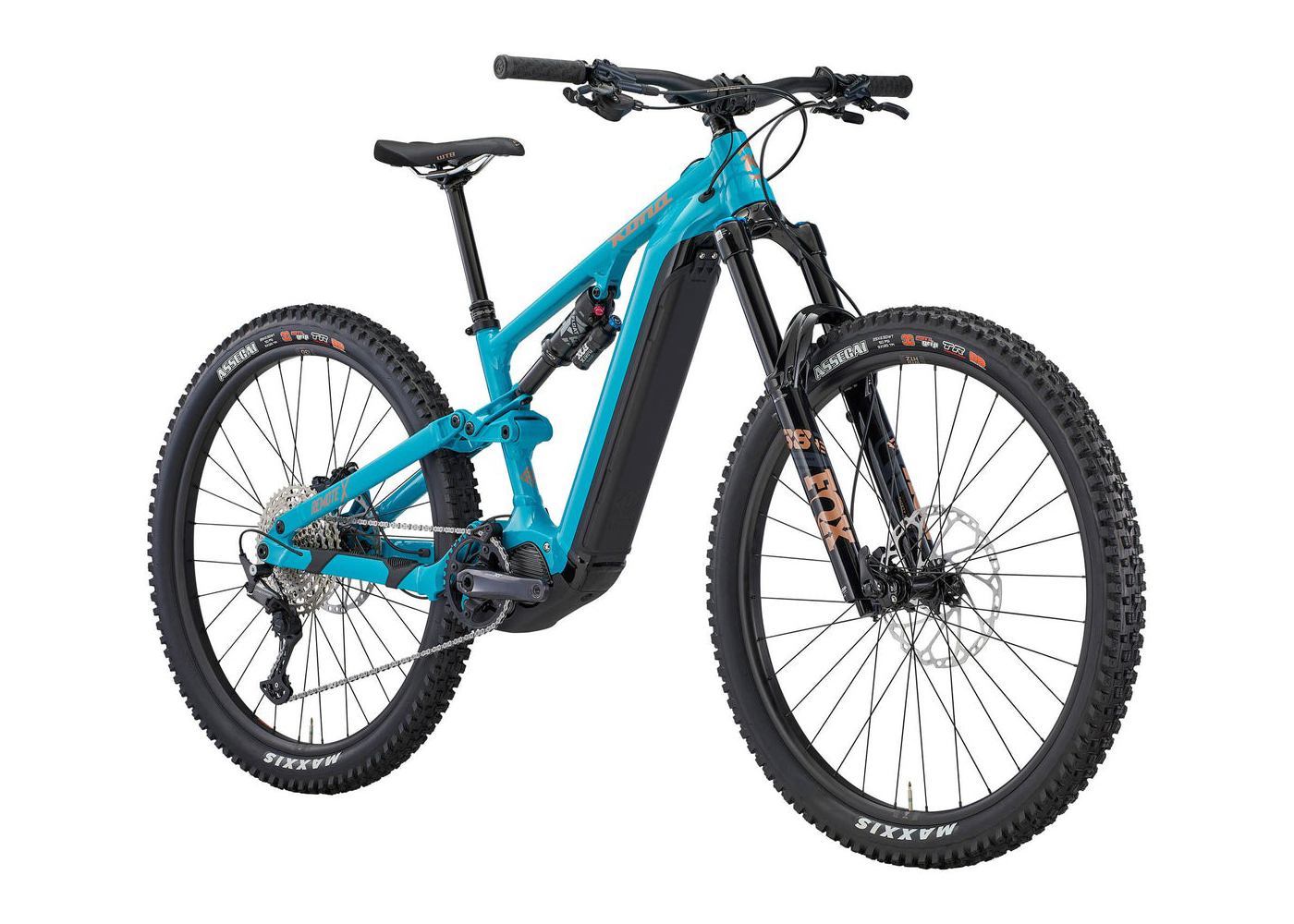

2025 Kona Remote X E-Bike

x 02.jpg?VersionId=kCGK9rLMuGhFIw9DRTSCD

x 03.jpg?VersionId=iebIH brXM2.HtuFLNF183E8ujL

Kona


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $3,249.94	Buy
Kona \| Remote 160 Dl E-Bike \| Matte Lead Powder \| Xl	Kona \| Remote 160 Dl E-Bike \| Matte Lead Powder \| Xl $3,249.94	Buy
Kona \| Process 153 Cr/dl Gx Axs Bike \| Gloss Dark Chrome \| Xl	Kona \| Process 153 Cr/dl Gx Axs Bike \| Gloss Dark Chrome \| Xl $2,999.94	Buy
Kona \| Process X Cr/dl Bike 2023 \| Plum Purple \| Xl 29"	Kona \| Process X Cr/dl Bike 2023 \| Plum Purple \| Xl 29" $3,279.94	Buy
Kona \| Process X Cr Bike \| Dusty Rose \| Xl	Kona \| Process X Cr Bike \| Dusty Rose \| Xl $2,339.95	Buy
Kona \| Process X Bike \| Satin Gose Blue \| L	Kona \| Process X Bike \| Satin Gose Blue \| L $2,105.19	Buy
Kona \| Process X Cr Bike Grey L	Kona \| Process X Cr Bike Grey L $2,999.94	Buy
Kona \| Process X Sram Bike \| Blue \| L	Kona \| Process X Sram Bike \| Blue \| L $2,105.95	Buy
Kona \| Process 153 Cr Slx Bike \| Gloss Viridian \| Xl	Kona \| Process 153 Cr Slx Bike \| Gloss Viridian \| Xl $2,199.94	Buy
Kona \| Process 153 Cr Sram Bike \| Viridian Green \| S	Kona \| Process 153 Cr Sram Bike \| Viridian Green \| S $2,699.95	Buy
Kona \| Process 153 Dl Bike \| Green \| L	Kona \| Process 153 Dl Bike \| Green \| L $2,099.94	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available E-Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Kona Remote X E-Bike

Model Year

2025

Intended Use

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	568mm	593mm	621mm	660mm
Head Tube Angle	63.5°	63.5°	63.5°	63.5°
Head Tube Length	110mm	110mm	121mm	133mm
Seat Tube Angle	77.8°	77.8°	77.7°	77.5°
Seat Tube Length	380mm	380mm	420mm	450mm
Bottom Bracket Height	355mm (20mm drop)	355mm (20mm drop)	355mm (20mm drop)	355mm (20mm drop)
Chainstay Length	440mm	440mm	440mm	440mm
Wheelbase	1225mm	1250mm	1280mm	1320mm
Standover	765mm	765mm	770mm	775mm
Reach	430mm	455mm	480mm	515mm
Stack	635mm	635mm	645mm	655mm
Additional Info	All specifications listed are with 180mm travel fork with 596mm axle-to-crown length and 44mm offset

Sizes Additional Info

All specifications listed are with 180mm travel fork with 596mm axle-to-crown length and 44mm offset

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	568mm	593mm	621mm	660mm
Head Tube Angle	63.5°	63.5°	63.5°	63.5°
Head Tube Length	110mm	110mm	121mm	133mm
Seat Tube Angle	77.8°	77.8°	77.7°	77.5°
Seat Tube Length	380mm	380mm	420mm	450mm
Bottom Bracket Height	355mm (20mm drop)	355mm (20mm drop)	355mm (20mm drop)	355mm (20mm drop)
Chainstay Length	440mm	440mm	440mm	440mm
Wheelbase	1225mm	1250mm	1280mm	1320mm
Standover	765mm	765mm	770mm	775mm
Reach	430mm	455mm	480mm	515mm
Stack	635mm	635mm	645mm	655mm
Additional Info	All specifications listed are with 180mm travel fork with 596mm axle-to-crown length and 44mm offset

Wheel Size

29"

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Shimano STEPS EP800

Battery

Darfon, integrated

Battery Capacity

612Wh

Display/Remote

Shimano STEPS EM8000 display with two-button remote

Modes

Boost, Trail, Eco, Walk Assist

Max Speed with Assist

20 mph (32.2 km/h)

Frame Material

Aluminum

Frame Material Details

Kona 6061 buttted aluminum, molded chainstay protection

Rear Travel

178mm

Rear Shock

FOX FLOAT X Performance Elite

Fork

FOX FLOAT 38 Performance

Fork Travel

180mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA No.57E

Handlebar

Kona XC/BC 35, 35mm clamp diameter

Stem

Kona XC/BC 35, 35mm bar clalmp

Grips

Kona Key Grip

Brakes

Shimano SLX M7120, 4-piston, Shimano RT64 CENTER LOCK rotors (220mm front, 203mm rear)

Brake Levers

Shimano SLX M7100

Drivetrain

Shifters

Shimano Deore M6100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed

Chainguide

OneUp upper slider

Cranks

Shimano Deore XT

Chainrings

Shimano, 36 tooth

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth

Rims

WTB HTZ i30 TCS 2.0, 30mm inner width, tubeless compatible

Hubs

Formula, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver

Spokes

Stainless steel, 14g

Tires

Maxxis Assegai, 3C MaxxGrip compound, DoubleDown (DD) casing, TR, 29" x 2.5" WT

Saddle

WTB Volt

Seatpost

TransX +RAD dropper

Seatpost Diameter

31.6mm

Seatpost Clamp

Kona, single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

Gloss Viridian with Metallic Bronze decals

Warranty

Lifetime frame, 2 years Kona and Darfon components

Weight

Miscellaneous

• Linkage-driven single-pivot rear suspension design
• Suspension updates from previous Remote 160: new kinematics, more progression, better bottom out resistance, and more small bump sensitivity
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Includes Darfon Smart 4A battery charger

Price

$4,999.00

More Info

Introducing All New Kona Remote X and Remote 160 DL (press release)

Kona website
