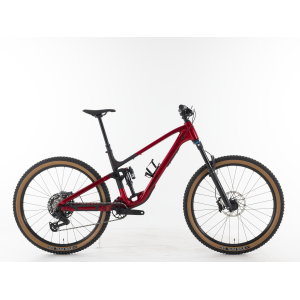

Fuel EX 8 Gen 7
$3,999.99
Fuel EX 5 Gen 7
$2,999.99
Fuel+ EX 5 Gen 2
$6,099.99
Fuel+ EX 8 Gen 2
$7,699.99
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Fuel EX 5 Gen 6 Bike
Model Year
2025
Intended Use
Trail
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
XS (High, Low)
SM (High, Low)
MD (High, Low)
ML (High, Low)
LG (High, Low)
XL (High, Low)
View Full Geometry
Sizes Additional Info
• XS/SM have 27.5" wheels; MD-XL have 29" wheels


• Geometry adjustable via Mino Link flip chip in rocker link pivot and optional angle-adjust headset cups


• Optional angle-adjust headset cups allow +1° and -1° head tube angle adjustments


• All specifications listed are with 150mm travel fork with 533mm (27.5") or 561mm (29") axle-to-crown length and 44mm offset
View Full Geometry
Wheel Size
27.5" (650b)
29"
Frame Material
Aluminum
Frame Material Details
Alpha Platinum Aluminum, magnesium rocker link, molded seatstay and chainstay protection, two-piece dual-density bolt-on down tube protection
Rear Travel
140mm
Rear Shock
X-Fusion Pro 2, 2-position compression lever, 185mm length x 55mm stroke
Fork
RockShox Recon Silver, Solo Air spring, Motion Control damper, Maxle Stealth thru-axle
Fork Travel
27.5": 140mm
29": 150mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Integrated, cartridge bearings, compatible with optional angle-adjust headset cups
Handlebar
Bontrager, alloy, 750mm width, 15mm rise, 31.8mm clamp diameter
Stem
Bontrager Comp, 7° rise, 31.8mm bar clamp
Length: 35mm (XS/SM), 50mm (MD-XXL)
Grips
Bontrager XR Trail Comp, nylon lock-on
Brakes
Shimano MT200, 2-piston, Shimano RT56 180mm 6-bolt rotors
Brake Levers
Shimano MT201
Drivetrain
1x
Shifters
Shimano Deore M6100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M6100, 12-speed, long cage
ISCG Tabs
ISCG05
Chainguide
None
Cranks
Shimano MT512 Alloy, 170mm length
Chainrings
Shimano MT512, 30 tooth
Bottom Bracket
Shimano MT501, 73mm English/BSA threaded
Pedals
None
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Bontrager Line 30, 32 hole, tubeless ready
Hubs
Bontrager, alloy, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes
Bontrager Line wheelset
Tires
Bontrager Gunnison Elite XR, wire bead, tubeless ready, 60 TPI, 2.4"
Saddle
Bontrager Verse Short, stainless steel rails; or Bontrager Arvada, steel rails
Seatpost
TranzX JD-YSI-22PLQ dropper
Drop: 100mm (XS/SM), 150mm (MD/ML), 170mm (LG-XXL)
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
2.5"
Bottle Cage Mounts
One inside front triangle
Colors
Galactic Grey/DarkStar, Matte Blue Sage
Warranty
Lifetime frame; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
34 lb 13.3 oz (15800 g)
Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• XS/SM have 27.5" wheels; MD-XL have 29" wheels
• Compatible with mixed ("Mullet") wheel setups (29" front, 27.5" rear)
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Geometry adjustable via optional angle-adjust headset cups, for +1° and -1° head tube angle adjustments
• Internal frame storage compartment in down tube; includes Bontrager BITS storage bag
• Guided internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Includes Bontrager TLR tubeless rim strips, valve stems, and sealant
• Weight given for size MD

Rear suspension leverage rate adjustable via flip chip at lower shock mount:
• Less progressive setting intended for a plusher feel perfect for rugged trails with square-edge bumps
• More progressive setting intended for hitting big features without bottom-out, or to run a coil shock
Price
$2,699.99
