Specifications

Product

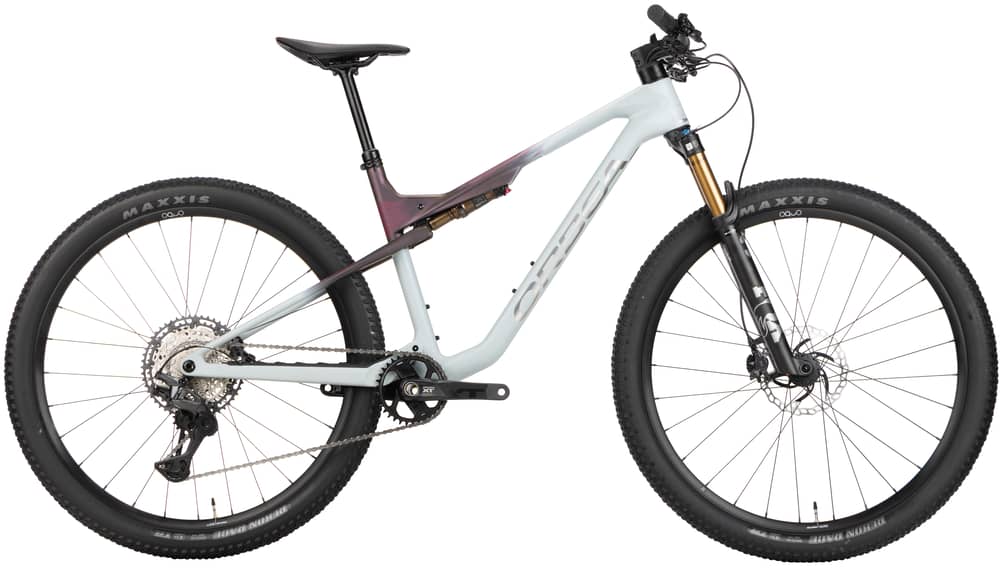

Orbea Oiz M20 Bike
Model Year
2027
Intended Use
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
S
M
L
XL
View Full Geometry
Sizes Additional Info
All specifications listed are with 120mm travel fork with 530mm axle-to-crown length and 44mm offset
View Full Geometry
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
OMR carbon front and rear triangles, Fiberlink, molded chainstay protection
Rear Travel
120mm
Rear Shock
FOX FLOAT SL Factory, EVOL, OC Squidlock MP11 3-position remote lockout, Kashima coating, custom tune, 190mm length x 45mm stroke
Fork
FOX FLOAT 34 SL Factory, GRIP SL damper, OC Squidlock MP11 3-position remote lockout, Kashima coating, 44mm offset
Fork Travel
120mm
Head Tube Diameter
Straight, 1.5"
Headset
FSA, 1.5" integrated, aluminum cup, Orbea Spinblock fork over-rotation protection
Handlebar
OC Mountain Performance MP30, alloy, 760mm width
Stem
OC Mountain Performance MP21, 6° drop
Length: 60mm (S), 75mm (M/L/XL)
Grips
OC, lock-on
Brakes
Shimano MT, 2-piston
Rotors: Shimano
Brake Levers
Shimano
Drivetrain
1x
Shifters
Shimano Deore XT M8100, 12-speed, I-SPEC EV mounting bracket
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
ISCG Tabs
None
Chainguide
Compact/mini upper keeper
Cranks
Shimano Deore XT M8200 Alloy
Length: 170mm (S/M), 175mm (L/XL)
Chainrings
Shimano Deore XT M8200, 34 tooth
Bottom Bracket
English/BSA threaded
Pedals
None
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore XT M8200, 12-speed, 10-51 tooth
Rims
OQUO Mountain Performance MP28PRO Alloy
Hubs
OQUO, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver
Spokes
OQUO wheelset
Tires
Maxxis Rekon Race, EXO casing, 120 TPI, tubeless ready, 29" x 2.4"
Saddle
fi'zi:k Vento Argo X5, alloy rails, 140mm width
Seatpost
OC Mountain Control MC22 dropper
Drop: 125mm (S/M), 150mm (L/XL)
OC Squidlock MP11 3-position remote lockout integrated with dropper lever
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size

Bottle Cage Mounts
Two inside front triangle
Colors
Frozen Concrete / Sunset Carbon View, Noctiluca Carbon View / Cobalt Blue, Burning Ashes Carbon View / Ivory White
Warranty
3 years frame
Weight

Miscellaneous
  • Advanced Dynamics UFO (Unified Flex Optimized) flexstay single-pivot rear suspension
  • Sealed Internal Cable (SIC) internal cable routing through headset
  • Orbea I-line internal shock lockout cable routing
  • Images may show alternate builds
    • Price
    $5,291.00
