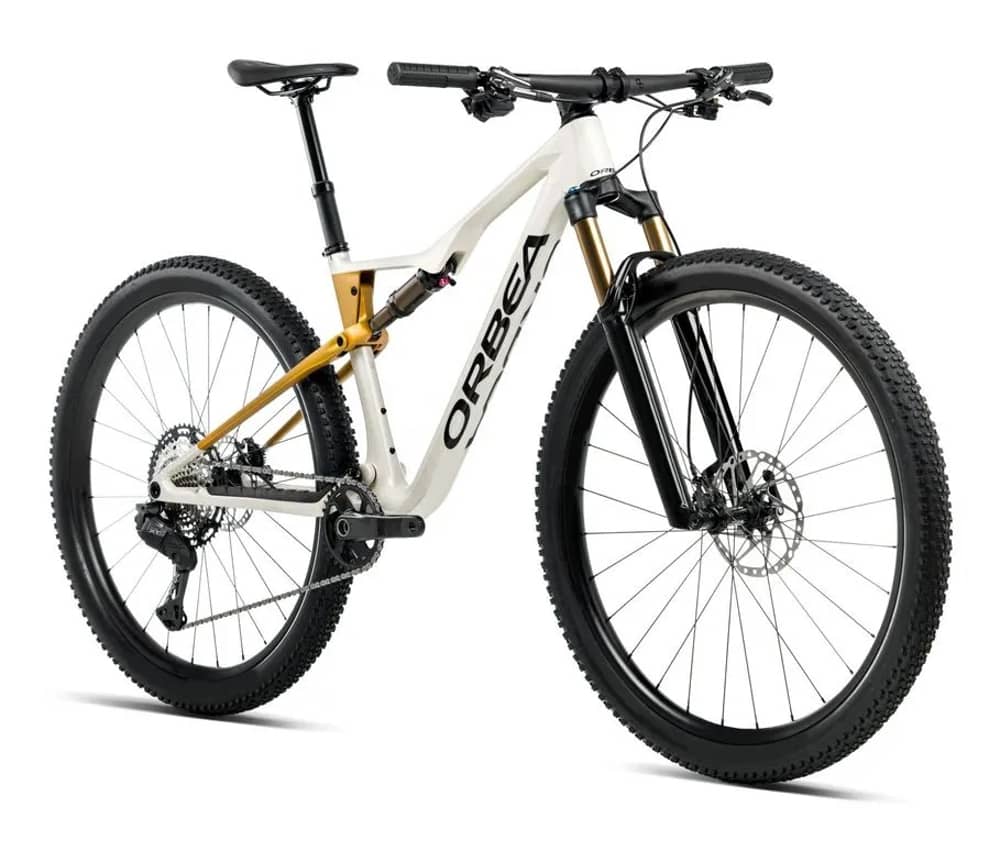

Orbea \| Oiz M21 Axs Bike 2026 \| White \| Yellow Xl	Orbea \| Oiz M21 Axs Bike 2026 \| White \| Yellow Xl $4,282.94	Buy
Orbea \| Oiz M20 Bike 2027 Carbon - Blue L	Orbea \| Oiz M20 Bike 2027 Carbon - Blue L $5,291.00	Buy
Orbea \| Oiz M30 Bike 2027 Carbon - Blue L	Orbea \| Oiz M30 Bike 2027 Carbon - Blue L $4,189.00	Buy
Orbea \| Oiz H10 Bike 2026 \| Blue \| M	Orbea \| Oiz H10 Bike 2026 \| Blue \| M $2,810.00	Buy
Orbea \| Oiz H30 Bike 2026 \| Blue \| M	Orbea \| Oiz H30 Bike 2026 \| Blue \| M $2,342.00	Buy
Orbea \| Oiz M30 Bike 2026 \| Diamond \| M	Orbea \| Oiz M30 Bike 2026 \| Diamond \| M $3,559.94	Buy
Free shipping on orders over $49 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $49 (continental U.S. only). International shipping available. Some exclusions apply. $9,371.00	Buy
2027 Orbea Wild LT M10 Mullet	2027 Orbea Wild LT M10 Mullet $9,371.00	Buy
2027 Orbea Wild LT M20	2027 Orbea Wild LT M20 $7,717.00	Buy
2027 Orbea Wild LT M-TEAM RS	2027 Orbea Wild LT M-TEAM RS $11,024.00	Buy
2027 Orbea Wild LT H20	2027 Orbea Wild LT H20 $6,173.00	Buy
2027 Orbea Wild LT H20 Mullet	2027 Orbea Wild LT H20 Mullet $6,173.00	Buy
Free standard UK delivery on orders over £50.	Browse available Bikes
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Orbea Oiz M21 Bike

Model Year

2025

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	575mm	598mm	623mm	650mm
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	90mm	90mm	100mm	115mm
Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
Seat Tube Length	405mm	432mm	460mm	510mm
Bottom Bracket Height	333mm (42mm drop)	333mm (42mm drop)	333mm (42mm drop)	333mm (42mm drop)
Chainstay Length	432mm	432mm	432mm	432mm
Wheelbase	1138mm	1163mm	1189mm	1219mm
Standover	731mm	741mm	741mm	750mm
Reach	425mm	450mm	472mm	496mm
Stack	596mm	596mm	606mm	619mm
Additional Info	All specifications listed are with 120mm travel fork with 531mm axle-to-crown length and 44mm offset

Sizes Additional Info

All specifications listed are with 120mm travel fork with 531mm axle-to-crown length and 44mm offset

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	575mm	598mm	623mm	650mm
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	90mm	90mm	100mm	115mm
Seat Tube Angle	76.5°	76.5°	76.5°	76.5°
Seat Tube Length	405mm	432mm	460mm	510mm
Bottom Bracket Height	333mm (42mm drop)	333mm (42mm drop)	333mm (42mm drop)	333mm (42mm drop)
Chainstay Length	432mm	432mm	432mm	432mm
Wheelbase	1138mm	1163mm	1189mm	1219mm
Standover	731mm	741mm	741mm	750mm
Reach	425mm	450mm	472mm	496mm
Stack	596mm	596mm	606mm	619mm
Additional Info	All specifications listed are with 120mm travel fork with 531mm axle-to-crown length and 44mm offset

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

OMR (Orbea Monocoque Race) carbon front and rear triangles, FiberLink upper linkage, molded chainstay protection

Rear Travel

120mm

Rear Shock

RockShox SIDLuxe Select+, OC Squidlock MP11 3-position remote lockout, 190mm lengh x 45mm stroke

Fork

RockShox SID Select, DebonAir+ spring, RL damper, 35mm stanchions, OC Squidlock MP11 3-position remote lockout

Fork Travel

120mm

Head Tube Diameter

Straight

Headset

Orbea SIC (Sealed Internal Cables); Spin Block rotation limiter, oxidated bearings

Handlebar

OC Mountain Performance MP30, 760mm width
Option: OC MC20 Alu SL, 800mm width, 20mm rise

Stem

OC Mountain Performance MP21, 6° drop
Option: OC MC20, 0° rise, 40mm or 50mm length options

Grips

OC, lock-on

Brakes

Shimano Deore M6100, 2-piston, Shimano rotors
Option: Shimano Deore XT M8100, 2-piston

Brake Levers

Shimano Deore M6100
Option: Shimano Deore XT M8100

Drivetrain

Shifters

SRAM GX Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM GX Eagle, 12-speed

ISCG Tabs

None

Chainguide

None

Cranks

SRAM GX Eagle Alloy DUB

Chainrings

SRAM GX Eagle, 32 tooth

Bottom Bracket

SRAM DUB, English/BSA threaded

Pedals

None

Chain

SRAM GX Eagle, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

OQUO Mountain Performance MP28Pro, 28mm inner width

Hubs

OQUO Mountain Performance MP28Pro wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver

Spokes

OQUO Mountain Performance MP28Pro wheelset

Tires

Maxxis Rekon Race, EXO casing, TR, 120 TPI, 29" x 2.4"
Option: Schwalbe Wicked Will, EVO line, Addix SpeedGrip compound, TLE, 29" x 2.4"

Saddle

fi'zi:k Vento Argo X5, aluminum rails
Option: Selle Italia SLR Boost SuperFlow

Seatpost

OC Mountain Control MC22 dropper, 125/150/170mm drop options; remote lever integrated with OC Squidlock MP11 suspension lever

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

Two inside front triangle

Colors

Ivory White/Bumblebee Yellow, Seaweed Carbon View/Spaceship Green, Diamond Carbon View

Warranty

Lifetime frame, 3 years paint and finish

Weight

Miscellaneous

• Advanced Dynamics UFO flexstay single pivot rear suspension design
• SIC (Sealed Internal Cables) routing; cables/hoses route through headset
• Frame weight: 1950g
• Photos may show alternate builds

Price

$4,999.00

More Info

Orbea website
