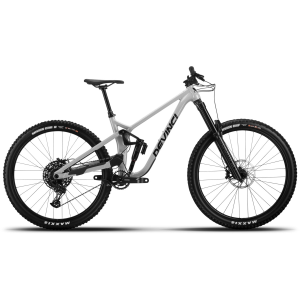

2023 Devinci Chainsaw SX 12s Bike

sx
sx
sx
Related:
Devinci
Where To Buy
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Devinci Chainsaw SX 12s Bike
Model Year
2023
Riding Type
Enduro / All-Mountain
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
SM (Lo, Hi)
MD (Lo, Hi)
LG (Lo, Hi)
XL (Lo, Hi)
Wheel Size
29"
Frame Material
Aluminum
Frame Material Details
Aluminum Optimum G04 6061-T6 alloy, molded polyurethane chainstay, seatstay, and down tube protection
Rear Travel
170mm
Rear Shock
RockShox Super Deluxe Select R, DebonAir spring, trunnion mount, 225mm length x 70mm stroke
Fork
RockShox Domain R, DebonAir spring, 38mm stanchions, 44mm offset
Fork Travel
170mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
FSA Orbit 1.5 Zero Stack
Handlebar
V2 Pro, 780mm width, 15mm rise, 35mm clamp diameter
Stem
V2 Pro, 40mm length, 0° rise, 35mm bar clamp
Grips
Devinci Performance, lock-on
Brakes
SRAM G2 R, 4-piston, SRAM CenterLine 200mm 6-bolt rotors
Brake Levers
SRAM G2 R, tool-free Reach Adjust
Drivetrain
1x
Shifters
SRAM SX Eagle, 12-speed
Front Derailleur
None
Rear Derailleur
SRAM SX Eagle, 12-speed
ISCG Tabs
2-bolt ISCG05
Chainguide
Integrated high-pivot upper idler pulley guide with thermoplastic idler cover, e*thirteen LG1 lower pulley guide
Cranks
SRAM X1 Eagle 1000 DUB
Chainrings
SRAM X1 Eagle, 32 tooth
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Pedals
None
Chain
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Rims
V2 Comp, 29mm inner width, tubeless ready
Hubs
Novatec, D791SB-B15 15mm x 110mm (Boost) front, DH92SB-SH 12mm x 157mm (SuperBoost+) rear with HG driver
Spokes
Sapim, stainless steel, 14g, with Nylok
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5" WT
Rear: Maxxis Minion DHR II, 3C MaxxGrip compound, Double Down (DD) casing, TR, 29" x 2.4" WT
Saddle
SDG Fly MTN
Seatpost
TranzX dropper, 1x remote lever
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt, CNC alloy, 38.6mm
Rear Dropout / Hub Dimensions
12mm x 157mm (SuperBoost+)
Max. Tire Size
2.5"
Bottle Cage Mounts
One inside front triangle
Colors
Silver Gloss
Warranty
Lifetime frame; 1 year pivots, paint, and decals
Weight

Miscellaneous
• Split Pivot/high single pivot rear suspension design
• Geometry adjustable via Geo-Saver Flip Chip at lower shock mount; compatible with mixed ("Mullet") setups: 29" front, 27.5" rear
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Rear travel can be increased to 180mm with a longer-stroke (75mm) shock
• Dual crown fork compatible
• Coil shock compatible
Price
$3,599.00
