Knolly Tyaughton Titanium Frame

Views:
Knolly Tyaughton Titanium
 Knolly Tyaughton Titanium Frame  Knolly Tyaughton Titanium Frame  Knolly Tyaughton Titanium Frame  Knolly Tyaughton Titanium Frame  Knolly Tyaughton Titanium Frame
Create New Tag

Compare to other Frames

Need more info? View our Trail Mountain Bike Frames or Enduro / All-Mountain Mountain Bike Frames buyer's guides.

Specifications

Product Knolly Tyaughton Titanium Frame
Riding Type Trail, Enduro / All-Mountain
Rider Unisex
Sizes and Geometry
SM, MD, LG, XL View Geometry
Size SM MD LG XL
Top Tube Length
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Head Tube Length 102mm 110mm 115mm 125mm
Seat Tube Angle 75° 75° 75° 75°
Seat Tube Length 360mm 404mm 456mm 506mm
Bottom Bracket Height 323mm 323mm 323mm 323mm
Chainstay Length 427mm 427mm 427mm 427mm
Wheelbase 1190mm 1221mm 1250mm 1281mm
Standover 669mm 725mm 750mm 790mm
Reach 441mm 468mm 495mm 522mm
Stack 632mm 636mm 640mm 652mm
* Additional Info All specifications listed are with 150mm travel fork
Wheel Size 29"
Frame Material Titanium

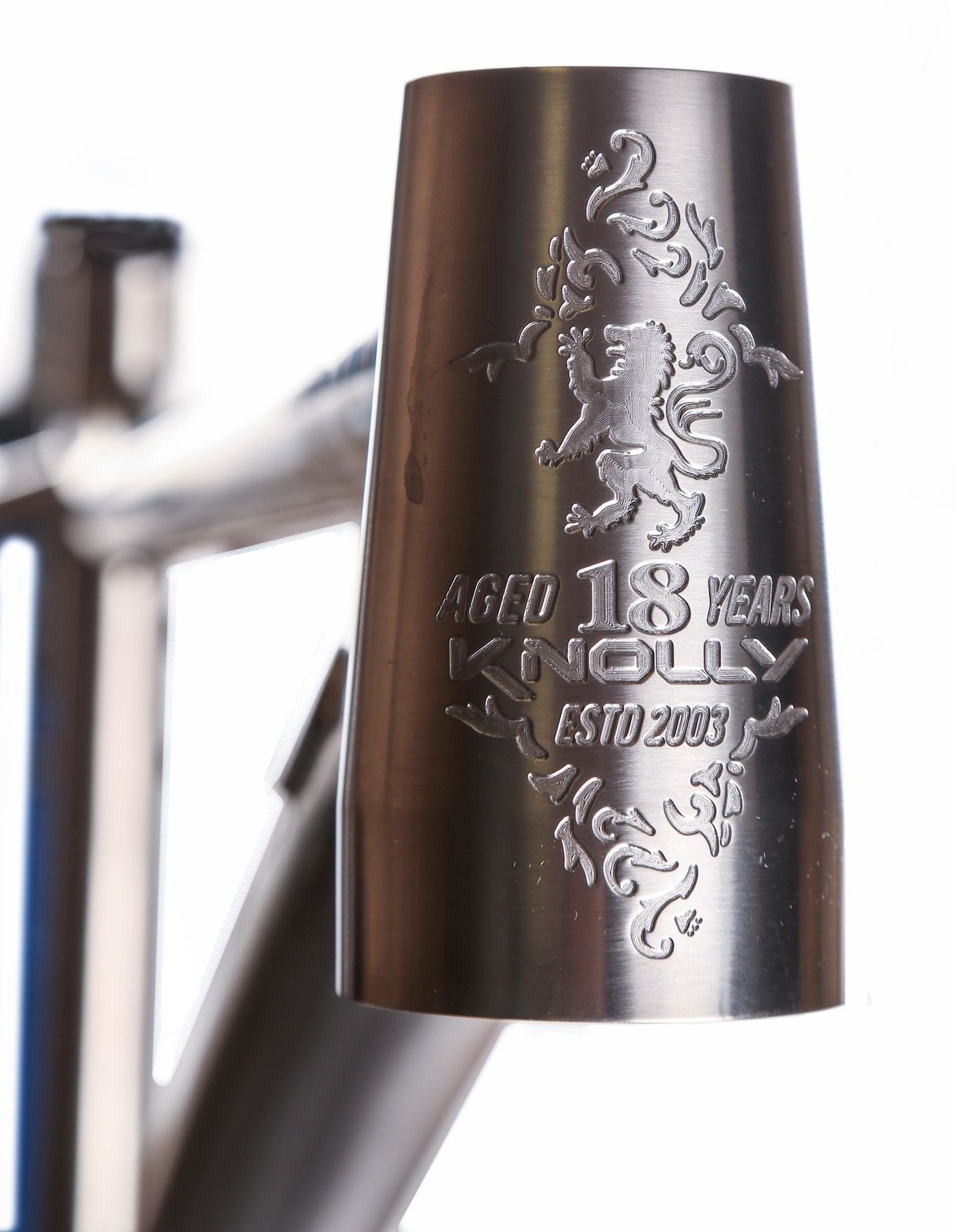

Frame Material Details Custom tapered, butted, and formed oversized size-specific tubeset; CNC-machined dropouts, chainstay yoke, and access ports; CNC-engraved head tube
Rear Travel Hardtail
Rear Shock None
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Bottom Bracket 73mm English/BSA threaded
Rear Dropout / Hub Dimensions 157x12mm SuperBoost
Front Derailleur Size
Seatpost Diameter 31.6mm
Max Tire Size 29" x 2.6" or 27.5" x 3.0"
ISCG Tabs ISCG05, removable
Bottle Cage Mounts One inside front triangle
Colors Brushed Titanium
Warranty Lifetime
Weight
Miscellaneous • 2022 version
• External cable routing with internal dropper seatpost routing
• Intended for 140-160mm travel forks; 130mm minimum, 180mm maximum
• Post-mount 160mm rear brake tabs
• 36 tooth max chainring
Price $2,999
More Info The New Knolly Hardtail: Tyaughton Ti and Steel (press release)

knollybikes.com
