Trek Scratch 9 Frame

(discontinued)

Discontinued


$70 standard shipping on bikes (continental U.S. only).	$70 standard shipping on bikes (continental U.S. only). $14.99	Buy

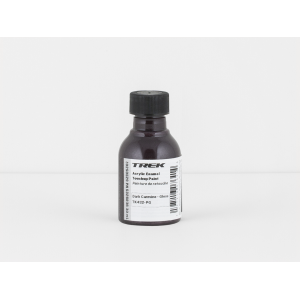

Trek-Diamant Touch-Up Paint - Gloss Red/Orange/Yellow Color Collection	Trek-Diamant Touch-Up Paint - Gloss Red/Orange/Yellow Color Collection $14.99	Buy

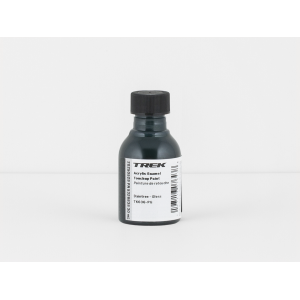

Trek-Diamant Touch-Up Paint - Gloss Blue/Green Color Collection	Trek-Diamant Touch-Up Paint - Gloss Blue/Green Color Collection $14.99	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Trek Scratch 9 Frame

Intended Use

Freeride / Bike Park

Downhill

Rider

Sizes and Geometry

15.5

17.7

19.5

21.5

View Full Geometry

Size	15.5	17.7	19.5	21.5
Top Tube Length	20.8	22.0	22.5	23.5
Head Tube Angle	65.7°	65.7°	65.7°	65.7°
Head Tube Length	4.7	4.7	4.7	4.7
Seat Tube Angle	74.7 / 74.1	74.7 / 74.1	74.7 / 74.1	74.7 / 74.1
Seat Tube Length	15.2	16.3	17.7	19.3
Bottom Bracket Height	14.2 / 14.4	14.2 / 14.5	14.2 / 14.5	14.2 / 14.5
Chainstay Length	17.3 / 17.2	17.3 / 17.2	17.3 / 17.2	17.3 / 17.2
Wheelbase	43.9 / 43.8	45.1 / 45.0	45.7 / 45.6	46.8 / 46.7
Standover	31.8/ 31.5	31.4/ 32.1	30.9/ 30.8	30.8/ 30.6
Reach	14.5 / 14.3	15.7/ 15.5	16.2/ 16.0	17.0/16.8
Stack	22.8	22.8	22.8	23.5

Sizes Additional Info

Wheel Size

Frame Material

Aluminum

Frame Material Details

Alpha Red Aluminum w/Aluminum Armor, ABP, Full Floater, alloy EVO Link

Rear Travel

170mm

Rear Shock

Fox DHX RC-4, custom "freeride tuned" w/externally adjustable velocity sensitive damping, bottom out force adjust and bottom out progressiveness, external rebound; 8.5x2.5" (15.5" 400lb; 17.5" 450lb; 19.5"-21.5" 500lb spring)

Head Tube Diameter

E2 tapered head tube

Bottom Bracket

Rear Dropout / Hub Dimensions

142x12mm or 135x12mm rear axle adaptors,

Front Derailleur Size

Seatpost Diameter

31.6

Max Tire Size

ISCG Tabs

Yes

Bottle Cage Mounts

Colors

Matt Silver/Light

Warranty

Weight

N/A

Miscellaneous

Price

More Info

Trek website
