Make SRAM 1x™ even better with the simplicity of the new SRAM X-SYNC™ Direct Mount chain ring. Engineered in Germany, the new Direct Mount rings bring lighter weight and greater simplicity to XX1, X01 and X1-1400 cranksets. SRAM’s Direct Mount rings give riders the perfect opportunity for a serious upgrade.


Crank Options

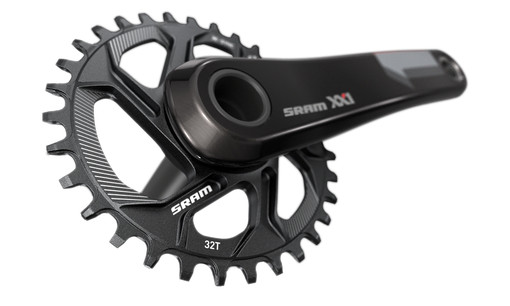

After market cranksets ship with a 32T X-SYNC™ Direct Mount chain ring.

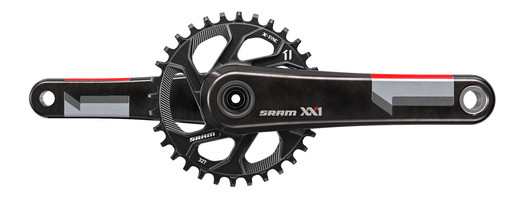

  • XX1
  • X01

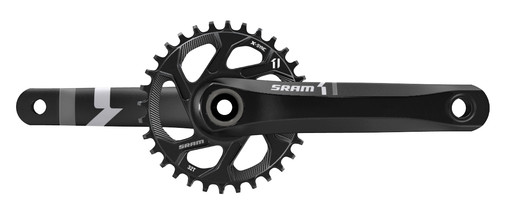

  • X1 1400 compatible


X-Sync Direct Mount Chain Ring Highlights

  • Fully CNC AL rings
  • X-SYNC™ technology
  • Lighter weight than spider version (~25-50g depending on size)
  • Sizes: 26, 28, 30, 32, 34, 36, 38, 40
  • Weights: GXP – 61g (26T), 66g (28T), 68g (30T), 71g (32T), 76g (34T), 91g (36T), 101g (38T), 119g (40T).
  • BB30 – 52g (26T), 58g (28T), 61g (30T), 66g (32T), 71g (34T), 82g (36T), 94g (38T), 106g (40T).

Available December 2014: 30, 32, 34
Available April 2015: 26, 28, 36, 38, 40



  • SRAM X-SYNC™ 1x™ chain rings provide the highest level of performance and durability in the market
  • The SRAM X-SYNC™ tall square teeth edges engage the chain earlier than traditional triangle shaped teeth
  • The sharp and narrow tooth profile, as well as rounded chamfer edges, help manage a deflected chain
  • To provide the best possible performance in muddy conditions, the X-SYNC™ chain rings have been designed with mud-clearing recesses for the inner chain links and rollers
  • Engineered in Germany, X-SYNC™ rings are an integral part of the SRAM 1x™ drivetrain. Accept no imitation.


X-Sync Direct Mount Chain Ring Pricing (30-, 32-, 34-Tooth Options)

  • USD ($) = 99
  • EU (€) = 88
  • GBP (£) = 75
