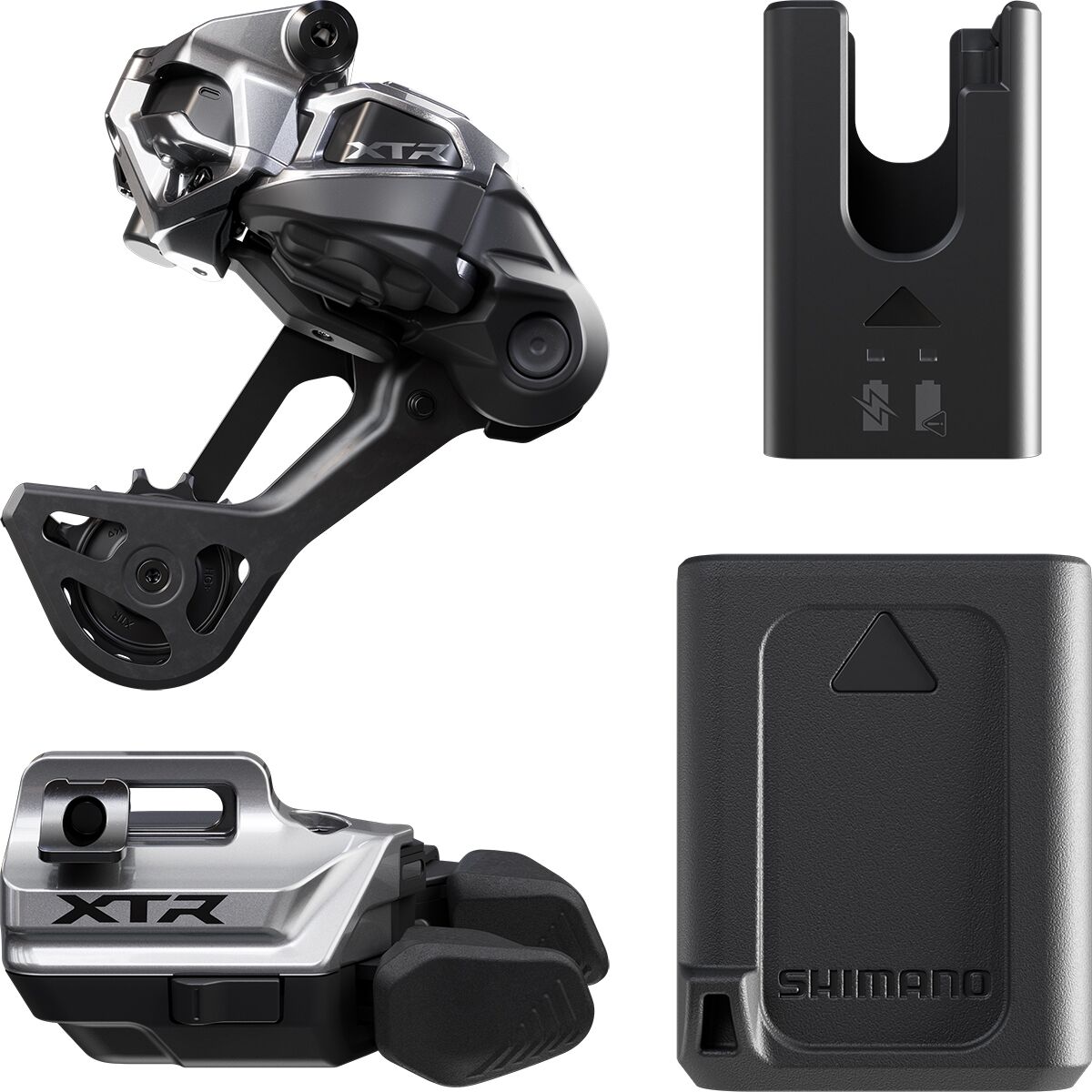

Shimano XTR M9220 Di2 Groupset

Related:
Where To Buy
Free shipping on orders over $49 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $49 (continental U.S. only).
International shipping available. Some exclusions apply.
$985.00
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.

Specifications

Product
Shimano XTR M9220 Di2 Groupset
Intended Use
Cross Country
Enduro / All-Mountain
Trail
Speeds
12-Speed
Derailleur
XTR M9250 Di2 Rear Derailleur (RD-M9250-SGS or RD-M9250-GS) fully wireless Di2 shifting system
Max Cassette Capacity
• 10-51 tooth (long cage RD-M9250 SGS)
• 9-45 tooth (mid cage RD-M9250 GS)
Cassette
XTR M9200 12 Cassette (CS-M9200-12)
Cassette Tooth Range
9-45 tooth and 10-51 tooth versions
Freehub Driver
Shimano MICRO SPLINE
Crank
XTR M9220 Crank (FC-M9220) with HOLLOWTECH II forged hollow alloy crankarm construction
Arm Material
Alloy
Arm Length
160mm, 165mm, 170mm, or 175mm
BB Shell Width
68mm, 73mm
Chainring
Tooth Count
28, 30, 32, 34, 36, or 38
Chainring Mount Standard
Shimano direct-mount
Chain
Shimano XTR Hyperglide+ 12-Speed (CN-M9100)
Shifter
XTR M9250 Di2 Shifter Switch (SW-M9250-R with clamp or SW-M9250-IR for I-SPEC EV mount)
Weight
N/A
Miscellaneous
Includes:
• Di2 Battery (BT-DN320)
• Di2 Battery Charger (EC-DN100)

Derailleur Features:
• Removable and rechargeable onboard battery
• SHIMANO SHADOW ES low-profile design reduces front-facing surface area and avoids snags
• Automatic impact recovery resets the derailleur position after a hit
• Durable construction with wide link structure, carbon plate, and skid-plate design
• Solid pulley and well-braced linkage further enhance survivability
• Chain stabilizing dual spring design increases chain tension and retention
• The sealed battery is tucked safely inside the derailleur body, staying put in rough terrain

Shifter Switch Features:
• SHIMANO RAPID ES wireless shifting offers familiar, responsive, and precise operation
• Tactile feedback for a clear feel with each shift without changing your grip while shifting
• Multiple shift modes: multi-shift, double shift, or single shift lock-out
• Multi-axis paddle adjustability for personalized ergonomic hand alignment
• Programmable 3rd button for functions like bike computer control, FREE SHIFT, or AUTO SHIFT
• Customizable via E-TUBE app

Crank Features:
• High-durability crankset for Trail/Enduro riding and racing
• Enduro-specific spindle ensures stiff power transfer and impact resistance
• Ride-specific construction optimized for extra durability
• Balances rigidity and weight while also emphasizing impact survivability
• Standard 176mm Q-Factor
• 55mm chainline

Cassette Features:
• Updated tooth profiles improve shifting under high load
• HYPERGLIDE+ enhances speed, shifting efficiency, and smoothness over any terrain
• Built with steel, titanium, and alloy to optimize weight and durability

Chainring Features:
• Equipped with DYNAMIC CHAIN ENGAGEMENT technology
• Reinforced for impact resistance
• Compatible with XTR cranksets
Price
$2,030.00
