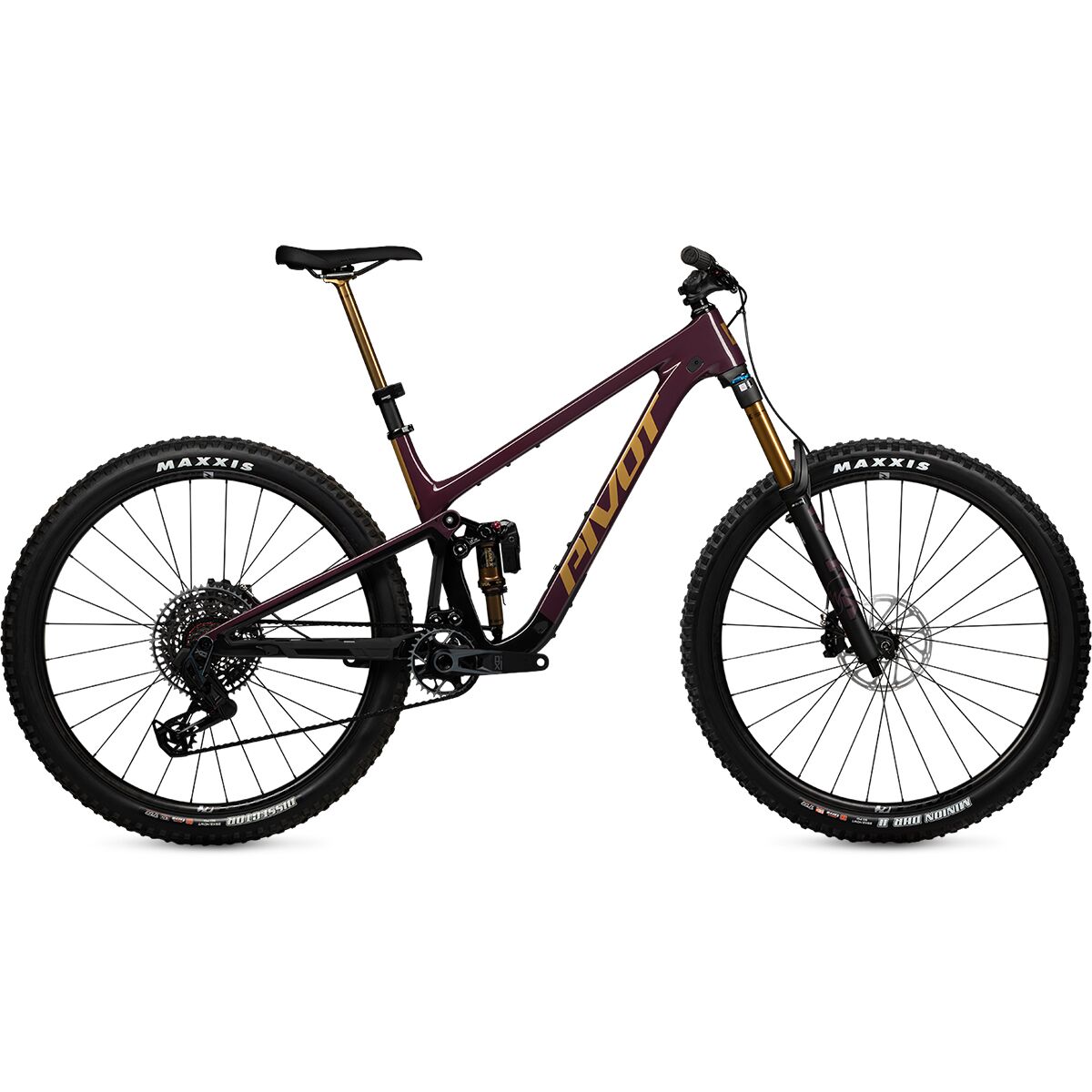

Pivot Trailcat LT Pro XT Di2 Mountain Bike Dr. Purple, MD	Pivot Trailcat LT Pro XT Di2 Mountain Bike Dr. Purple, MD $8,999.00	Buy
Pivot Trailcat LT Ride GX Transmission Mountain Bike Dr. Purple, M	Pivot Trailcat LT Ride GX Transmission Mountain Bike Dr. Purple, M $7,399.00	Buy

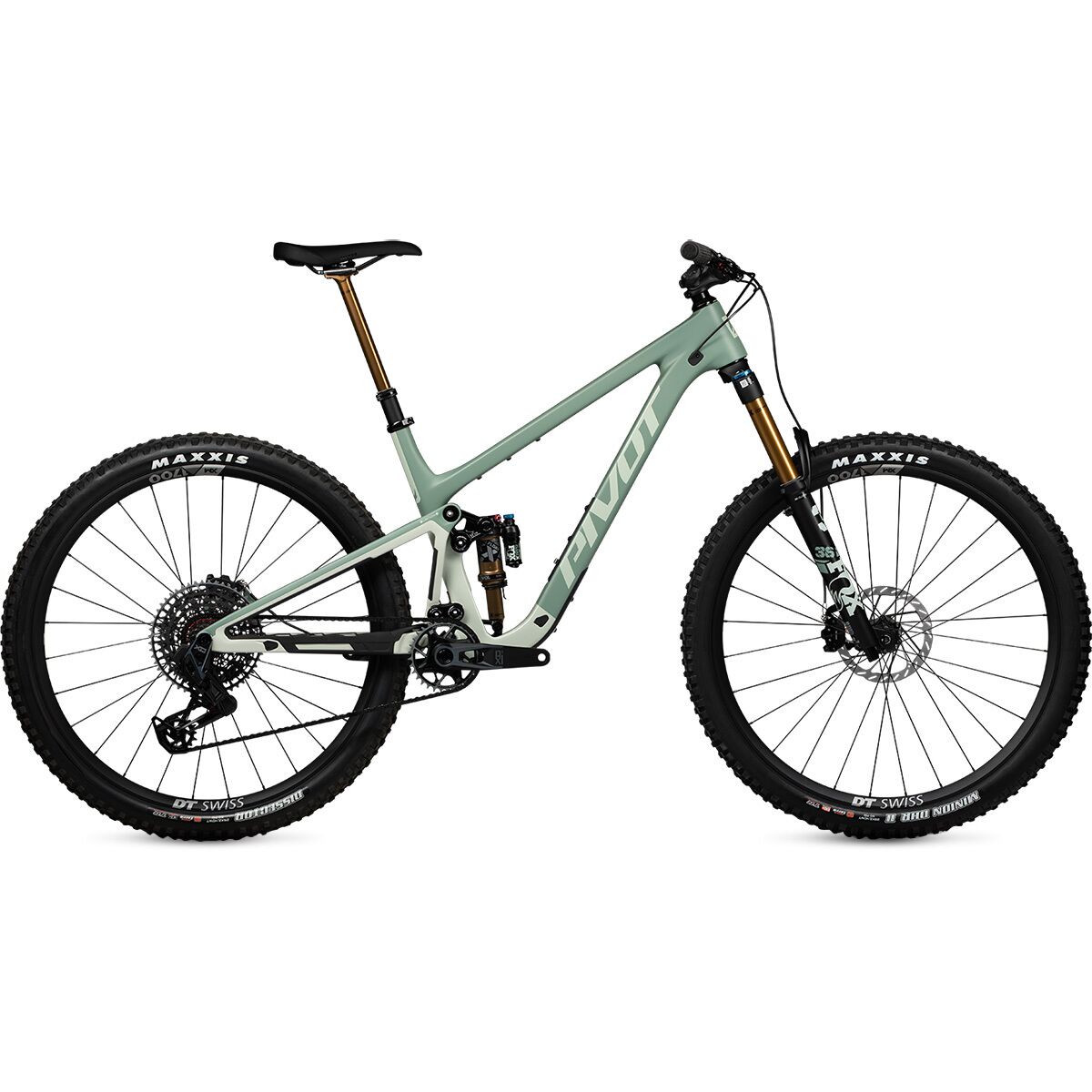

Pivot Trailcat LT Pro X0 Transmission Mountain Bike Green Meadow Mist, M	Pivot Trailcat LT Pro X0 Transmission Mountain Bike Green Meadow Mist, M $9,199.00	Buy

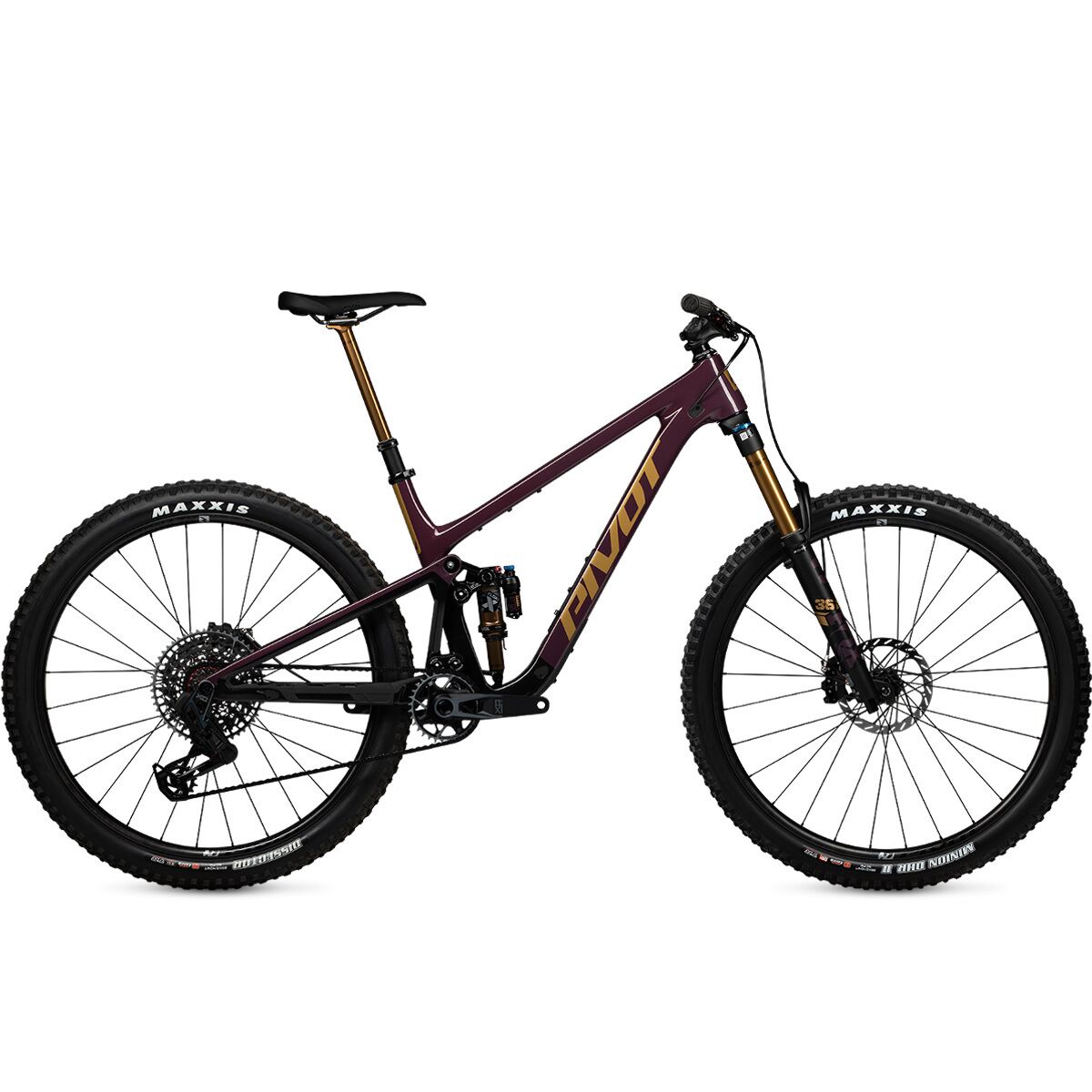

Pivot Trailcat LT Pro X0 Transmission Carbon Wheel Mountain Bike Dr. Purple, M	Pivot Trailcat LT Pro X0 Transmission Carbon Wheel Mountain Bike Dr. Purple, M $10,599.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $9,199.00	Buy
Pivot Cycles \| Pivot Trailcat Lt Pro X0 Bike \| Green Meadow Mist \| M	Pivot Cycles \| Pivot Trailcat Lt Pro X0 Bike \| Green Meadow Mist \| M $9,199.00	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Pivot Trailcat LT Frame

Intended Use

Enduro / All-Mountain

Trail

Rider

Unisex

Sizes and Geometry

XS (Low, High)

SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	570mm, 569mm	598mm, 596mm	631mm, 629mm	648mm, 646mm	662mm, 660mm
Head Tube Angle	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	75.6°, 76.0°	75.6°, 76.0°	75.6°, 76.0°	75.6°, 76.0°	76.0°, 76.4°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	339mm (34mm drop), 346mm (28mm drop)
Chainstay Length	431mm, 430mm	431mm, 430mm	431mm, 430mm	433mm, 431mm	435mm, 433mm
Wheelbase	1148mm, 1147mm	1177mm, 1176mm	1212mm, 1211mm	1231mm, 1230mm	1257mm, 1256mm
Standover	659mm, 662mm	680mm, 683mm	683mm, 687mm	696mm, 701mm	712mm, 716mm
Reach	405mm, 410mm	430mm, 435mm	460mm, 465mm	475mm, 480mm	495mm, 500mm
Stack	609mm, 605mm	618mm, 614mm	629mm, 625mm	634mm, 630mm	646mm, 642mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 29" wheels front/rear and 150mm travel fork with 44mm offset

Sizes Additional Info

• Geometry adjustable via two-position flip chip in upper linkage
• All specifications listed are with 29" wheels front/rear and 150mm travel fork with 44mm offset

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	570mm, 569mm	598mm, 596mm	631mm, 629mm	648mm, 646mm	662mm, 660mm
Head Tube Angle	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°	65.3°, 65.6°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	75.6°, 76.0°	75.6°, 76.0°	75.6°, 76.0°	75.6°, 76.0°	76.0°, 76.4°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	340mm (34mm drop), 346mm (28mm drop)	339mm (34mm drop), 346mm (28mm drop)
Chainstay Length	431mm, 430mm	431mm, 430mm	431mm, 430mm	433mm, 431mm	435mm, 433mm
Wheelbase	1148mm, 1147mm	1177mm, 1176mm	1212mm, 1211mm	1231mm, 1230mm	1257mm, 1256mm
Standover	659mm, 662mm	680mm, 683mm	683mm, 687mm	696mm, 701mm	712mm, 716mm
Reach	405mm, 410mm	430mm, 435mm	460mm, 465mm	475mm, 480mm	495mm, 500mm
Stack	609mm, 605mm	618mm, 614mm	629mm, 625mm	634mm, 630mm	646mm, 642mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 29" wheels front/rear and 150mm travel fork with 44mm offset

Wheel Size

29"

27.5+

Mixed Wheel Size

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles; molded seatstay, chainstay, and lower down tube protection

Rear Travel

135mm

Rear Shock

FOX FLOAT X Factory, Kashima coating, trunnion mount, 185mm length x 55mm stroke

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Bottom Bracket

92mm press-fit

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Front Derailleur Size

Not compatible (1x-specific)

Seatpost Diameter

31.6mm

Max Tire Size

2.6"

ISCG Tabs

ISCG05

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

Green Meadow Mist, Doctor Purple

Warranty

Lifetime frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings

Weight

5 lb 5.7 oz (2,430 g)

Miscellaneous

• 2025 version
• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with 27.5+ wheels or mixed ("Mullet") setups (29" front, 27.5" rear)
• Toolshed in-frame downtube storage system; includes two custom storage bags
• Internal cable routing with Dual Cable Port design
• SRAM UDH (Universal Derailleur Hanger)
• Designed for 150mm travel forks with 44mm offset
• Post-style rear brake mounts
• Weight listed without shock
• Includes headset: Pivot Precision, sealed cartridge bearings

Price

$4,599.00
