Pivot Phoenix Frame

frame black.png?VersionId=oZzzcsaPUWPK.cAy

frame red.png?VersionId=14BdODPu8GDcaBMAM3hzJ5PqrutxbR2

detail 03.png?VersionId=ekV9.Z3mEBS1b6VK6I

Pivot

Specifications

Product

Pivot Phoenix Frame

Intended Use

Downhill

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

S1 (High, Low)

S2 (High, Low)

S3 (High, Low)

S4 (High, Low)

View Full Geometry

Size	S1 (High, Low)	S2 (High, Low)	S3 (High, Low)	S4 (High, Low)
Top Tube Length	577mm, 578mm	602mm, 603mm	622mm, 623mm	657mm, 658mm
Head Tube Angle	62.93°, 62.50°	62.93°, 62.50°	62.93°, 62.50°	62.93°, 62.50°
Head Tube Length	106mm	106mm	106mm	106mm
Seat Tube Angle	77.73°, 77.30°	77.73°, 77.30°	77.73°, 77.30°	77.73°, 77.30°
Seat Tube Length	410mm	410mm	410mm	410mm
Bottom Bracket Height	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)
Chainstay Length	440mm, 443mm	440mm, 443mm	440mm, 443mm	440mm, 443mm
Wheelbase	1250mm, 1253mm	1275mm, 1278mm	1295mm, 1298mm	1330mm, 1333mm
Standover	702mm, 697mm	707mm, 702mm	707mm, 702mm	707mm, 702mm
Reach	440mm, 435mm	465mm, 460mm	485mm, 480mm	520mm, 515mm
Stack	631mm, 635mm	631mm, 635mm	631mm, 635mm	631mm, 635mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Geometry adjustable via two-position flip chip in upper link • All specifications listed are with 203mm travel fork with 52mm offset • 25mm chainstay length growth at 50% travel

Sizes Additional Info

• Mixed ("Mullet") wheels: 29" front, 27.5" rear

• Geometry adjustable via two-position flip chip in upper link

• All specifications listed are with 203mm travel fork with 52mm offset

• 25mm chainstay length growth at 50% travel

View Full Geometry

Size	S1 (High, Low)	S2 (High, Low)	S3 (High, Low)	S4 (High, Low)
Top Tube Length	577mm, 578mm	602mm, 603mm	622mm, 623mm	657mm, 658mm
Head Tube Angle	62.93°, 62.50°	62.93°, 62.50°	62.93°, 62.50°	62.93°, 62.50°
Head Tube Length	106mm	106mm	106mm	106mm
Seat Tube Angle	77.73°, 77.30°	77.73°, 77.30°	77.73°, 77.30°	77.73°, 77.30°
Seat Tube Length	410mm	410mm	410mm	410mm
Bottom Bracket Height	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)	355mm (8.5mm drop), 349mm (8.5mm drop)
Chainstay Length	440mm, 443mm	440mm, 443mm	440mm, 443mm	440mm, 443mm
Wheelbase	1250mm, 1253mm	1275mm, 1278mm	1295mm, 1298mm	1330mm, 1333mm
Standover	702mm, 697mm	707mm, 702mm	707mm, 702mm	707mm, 702mm
Reach	440mm, 435mm	465mm, 460mm	485mm, 480mm	520mm, 515mm
Stack	631mm, 635mm	631mm, 635mm	631mm, 635mm	631mm, 635mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Geometry adjustable via two-position flip chip in upper link • All specifications listed are with 203mm travel fork with 52mm offset • 25mm chainstay length growth at 50% travel

Wheel Size

Mixed Wheel Size

Frame Material

Carbon Fiber

Frame Material Details

Carbon front and rear triangles; molded chainstay, seatstay, and down tube protection; integrated fork stops with built-in cable ports

Rear Travel

210mm

Rear Shock

FOX FLOAT X2 Factory, Kashima coating, 225mm length x 75mm stroke

Head Tube Diameter

Straight, 56mm

Bottom Bracket

PF92 press-fit

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Front Derailleur Size

Not compatible (1x-specific)

Seatpost Diameter

31.6mm

Max Tire Size

27.5" x 2.5"

ISCG Tabs

Bottle Cage Mounts

None

Colors

Black Gold, Red Mint

Warranty

10 years frame, 1 year paint and finish, 5 years Pivot/Phoenix components

Weight

11 lb 3.9 oz (5100 g)

Miscellaneous

• 2025 version
• Mid-high pivot DW6 linkage rear suspension design
• Dual-idler pulley and dual-chain drivetrain, with eccentric dual idler mount to tension inner chain
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via two-position flip chip in upper link
• Reach adjust headsets (sold separately) allow 5mm longer or shorter reach values
• Rear suspension progression adjustable via two-position flip chip in lower shock mount
• Internal cable routing in front triangle with fork-stop integrated cable ports; external rear triangle cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Designed for 190-203mm travel forks with 52mm offset
• 27 tooth lower chainring; 35 tooth effective chainring size based on the gear ratio between the dual idler pulleys and the main chainring
• Post-mount rear brake tabs designed for 200/203mm rotors only
• Weight listed for size S3 with cranks

Price

$4,799.00

More Info

2025 Pivot Phoenix Downhill Bike Review

Pivot website

Review This Product

What do you think?

Pivot Phoenix Frame

Specifications

More Products

Canfield ONE.2 Frame

Banshee Legend 29 Frame

Banshee Legend 650 Frame

Specialized Demo Race 29 Frame

Specialized Demo Race Frame

Commencal FRS (Furious) Frame

Trek Session AL Frame

Trek Session C 27.5 Frame

Deals

Deals


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $11,399.00	Buy
Pivot Cycles \| Pivot Switchblade Team Xx Eagle Transmission Bike \| Blue Neptune \| L	Pivot Cycles \| Pivot Switchblade Team Xx Eagle Transmission Bike \| Blue Neptune \| L $11,399.00	Buy
Pivot Cycles \| Pivot Switchblade Ride Gx Eagle Transmission Bike \| Stealth Mojave \| Xl	Pivot Cycles \| Pivot Switchblade Ride Gx Eagle Transmission Bike \| Stealth Mojave \| Xl $6,999.00	Buy
Pivot Cycles \| Pivot Switchblade Ride Slx/xt Bike \| Blue Neptune \| Xl	Pivot Cycles \| Pivot Switchblade Ride Slx/xt Bike \| Blue Neptune \| Xl $5,439.00	Buy
Pivot Cycles \| Pivot Vault V6 Grx Bike \| Mossy Forest \| Lg	Pivot Cycles \| Pivot Vault V6 Grx Bike \| Mossy Forest \| Lg $4,499.00	Buy
Pivot Cycles \| Pivot Trailcat Sl Pro X0 Bike Dr. Purple M	Pivot Cycles \| Pivot Trailcat Sl Pro X0 Bike Dr. Purple M $8,999.00	Buy
Pivot Cycles \| Pivot Trailcat Lt Pro X0 Bike \| Green Meadow Mist \| M	Pivot Cycles \| Pivot Trailcat Lt Pro X0 Bike \| Green Meadow Mist \| M $9,199.00	Buy
Pivot Cycles \| Pivot Vault V6 Xplr Bike Black Lg	Pivot Cycles \| Pivot Vault V6 Xplr Bike Black Lg $4,249.00	Buy

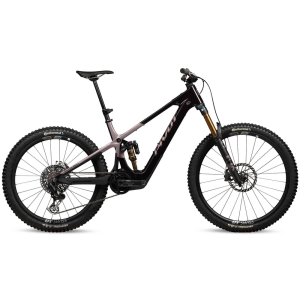

Pivot Cycles \| Pivot Shuttle Amp'd Team E-Bike 2026 \| Burgandy Berry Freeze \| L	Pivot Cycles \| Pivot Shuttle Amp'd Team E-Bike 2026 \| Burgandy Berry Freeze \| L $14,999.00	Buy
Pivot Cycles \| Pivot Shuttle Amp'd Pro E-Bike 2026 \| Black Metallic Stone \| M	Pivot Cycles \| Pivot Shuttle Amp'd Pro E-Bike 2026 \| Black Metallic Stone \| M $11,999.00	Buy
Pivot Cycles \| Pivot Switchblade Pro Xo Eagle Transmission Bike \| Blue Neptune \| M	Pivot Cycles \| Pivot Switchblade Pro Xo Eagle Transmission Bike \| Blue Neptune \| M $8,999.00	Buy
Pivot Cycles \| Pivot Shuttle Lt V3 Team Xx E-Bike 2026 Stone Cold \| White \| S	Pivot Cycles \| Pivot Shuttle Lt V3 Team Xx E-Bike 2026 Stone Cold \| White \| S $14,999.00	Buy
Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 Stone Cold \| White \| M	Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 Stone Cold \| White \| M $12,599.00	Buy

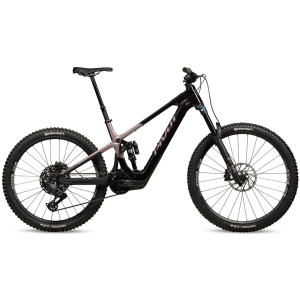

Pivot Cycles \| Pivot Shuttle Amp'd Ride E-Bike 2026 \| Burgandy Berry Freeze \| L	Pivot Cycles \| Pivot Shuttle Amp'd Ride E-Bike 2026 \| Burgandy Berry Freeze \| L $9,499.00	Buy
Pivot Cycles \| Pivot Shuttle Am Pro X0 E-Bike 2026 \| Blue Dark Sky \| L	Pivot Cycles \| Pivot Shuttle Am Pro X0 E-Bike 2026 \| Blue Dark Sky \| L $11,999.00	Buy
Pivot Cycles \| Pivot Shuttle Am Ride 70/90 E-Bike 2026 \| Badlands Brown \| M	Pivot Cycles \| Pivot Shuttle Am Ride 70/90 E-Bike 2026 \| Badlands Brown \| M $8,499.00	Buy
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply. $5,199.00	Buy

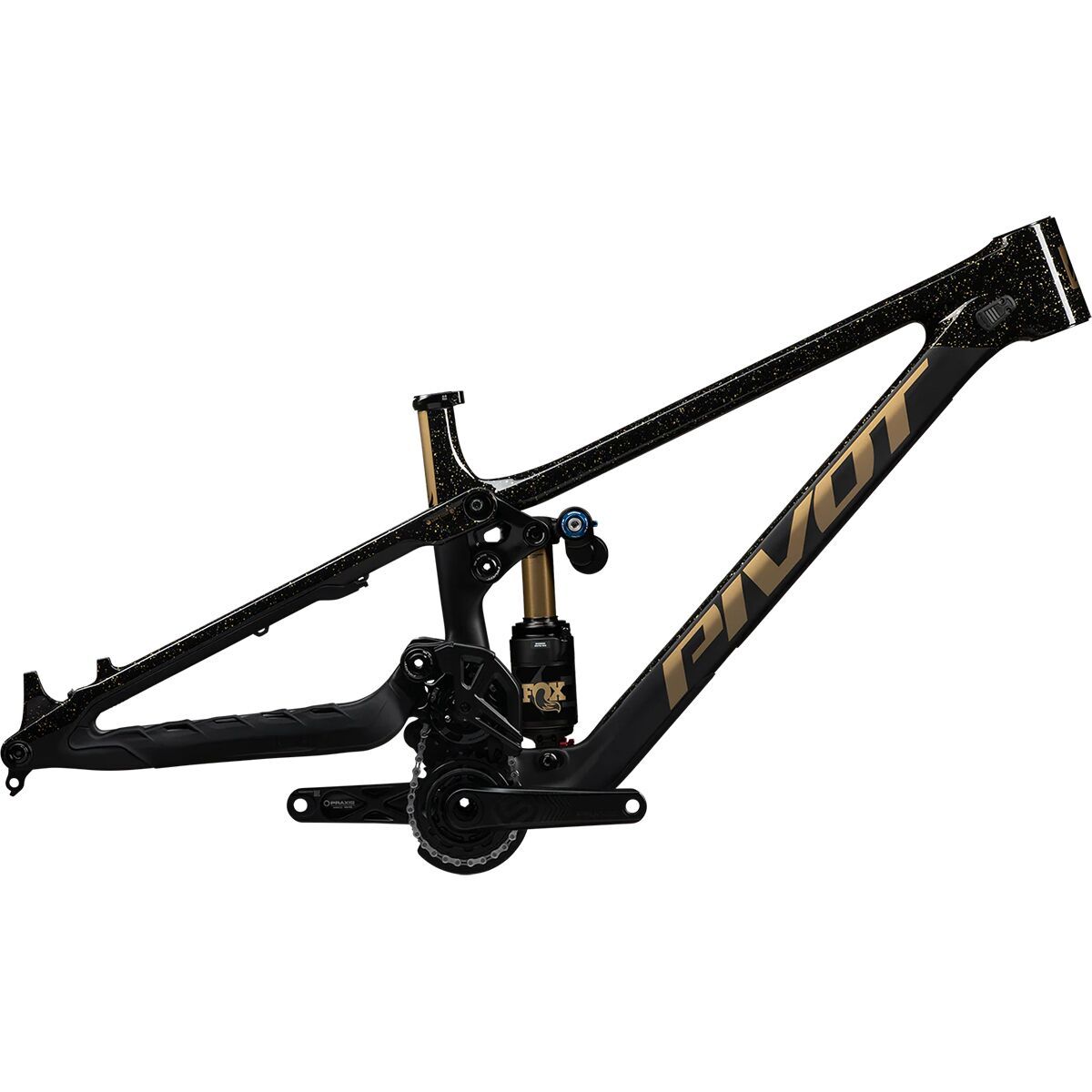

Pivot Phoenix V5 Downhill Frame Black Gold, S2	Pivot Phoenix V5 Downhill Frame Black Gold, S2 $5,199.00	Buy

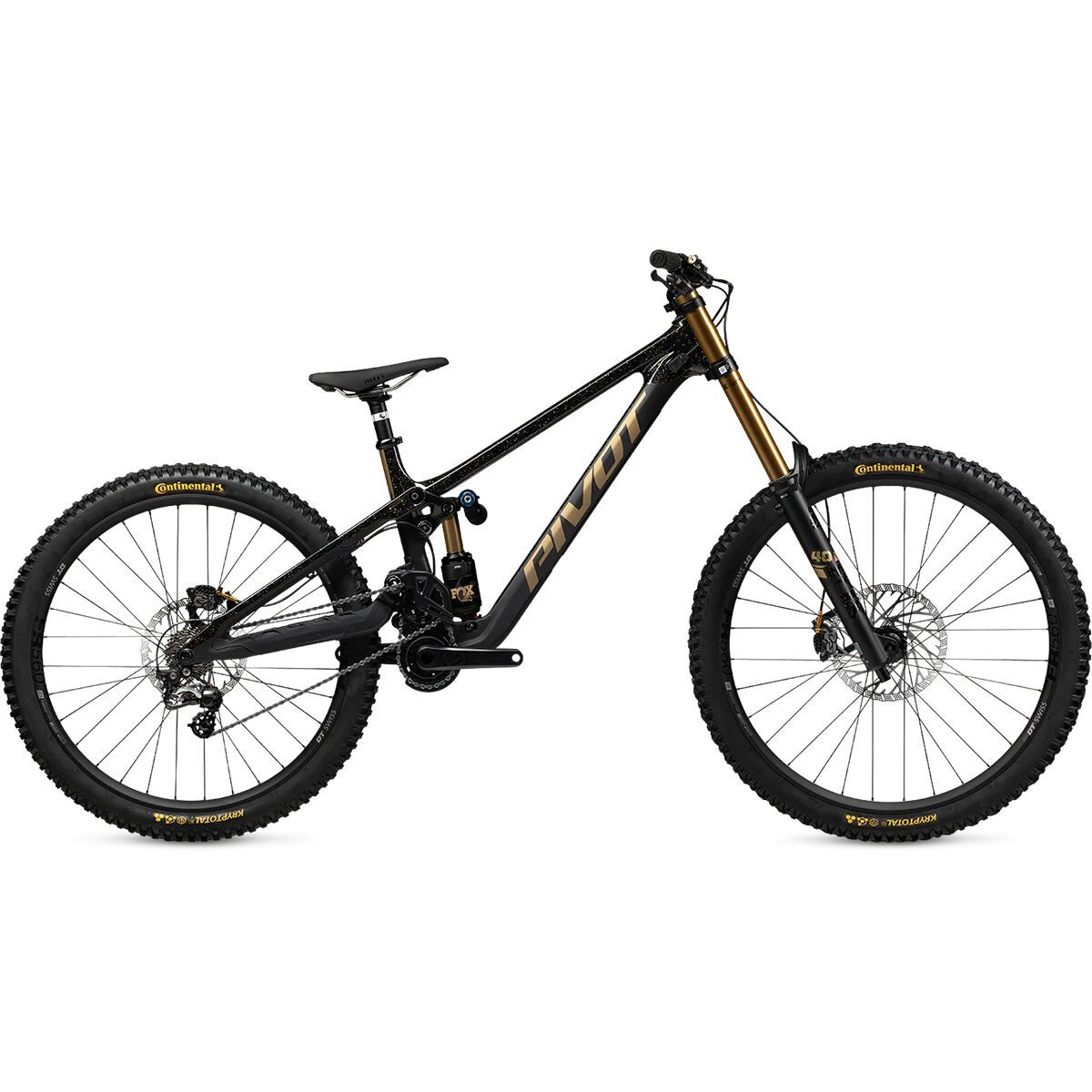

Pivot Phoenix V5 Pro Saint Downhill Bike Black Gold, S3	Pivot Phoenix V5 Pro Saint Downhill Bike Black Gold, S3 $9,499.00	Buy

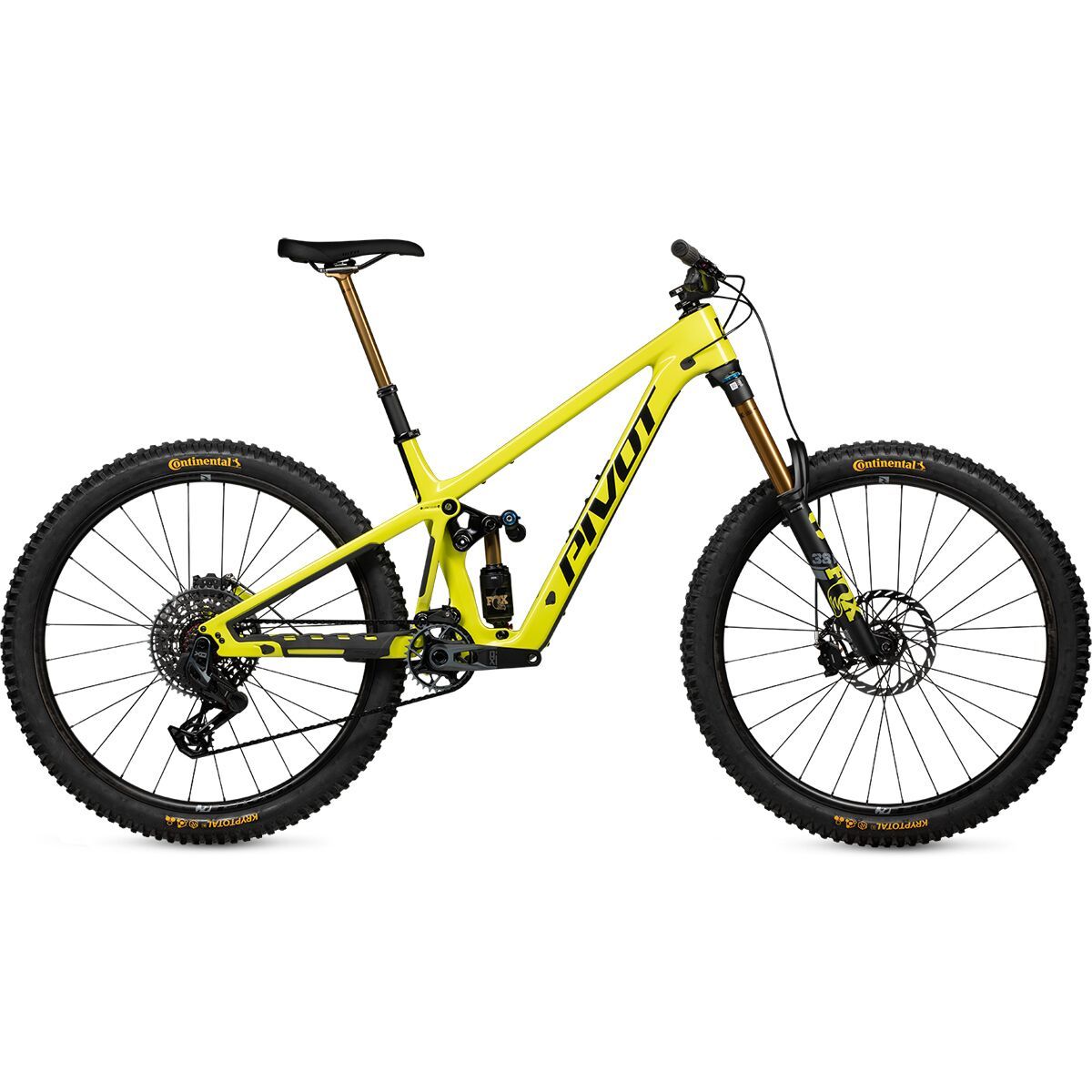

Pivot Firebird Pro X0 T-Type Carbon Wheel Mountain Bike YOLO, M	Pivot Firebird Pro X0 T-Type Carbon Wheel Mountain Bike YOLO, M $10,899.00	Buy

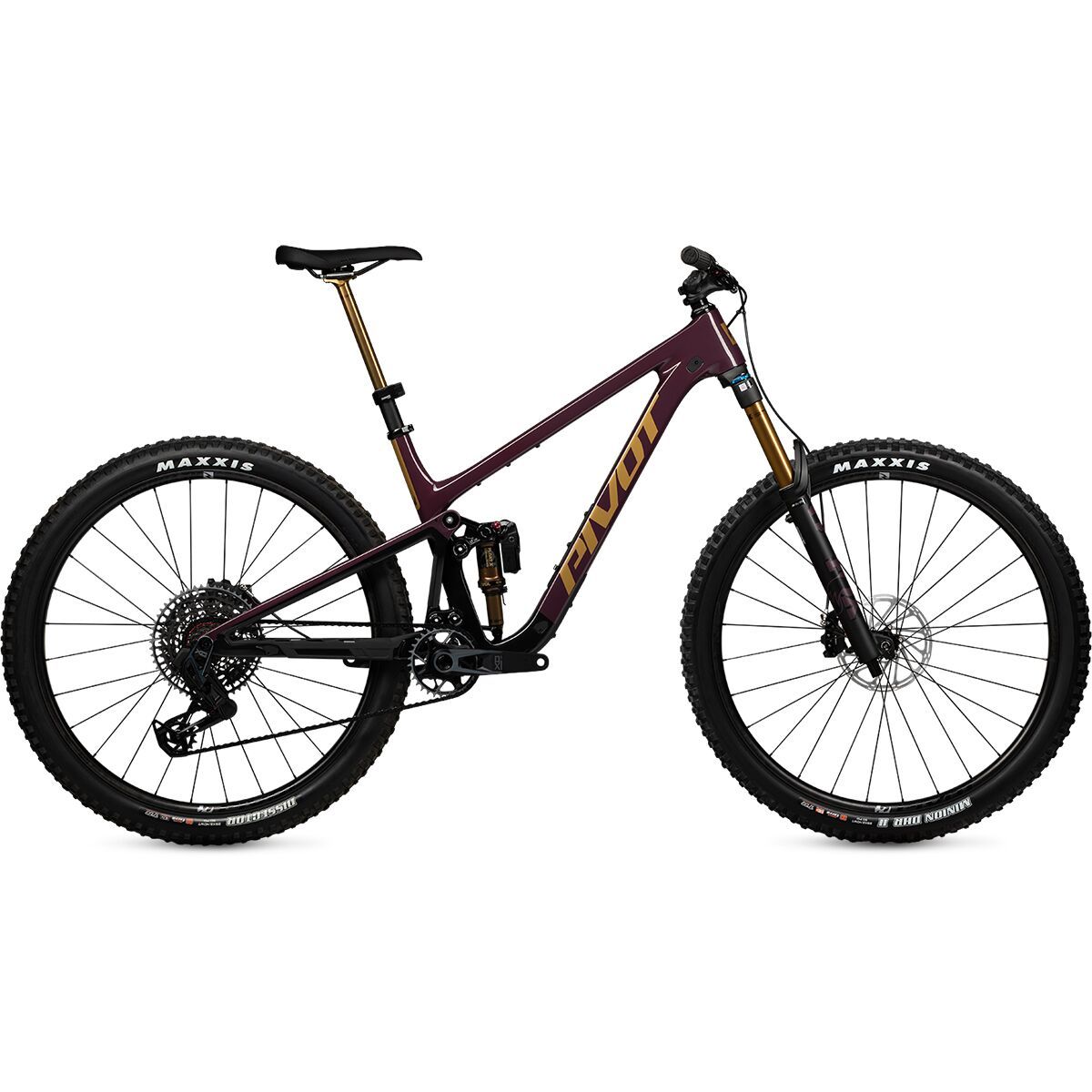

Pivot Trailcat LT Pro XT Di2 Mountain Bike Dr. Purple, LG	Pivot Trailcat LT Pro XT Di2 Mountain Bike Dr. Purple, LG $8,999.00	Buy
