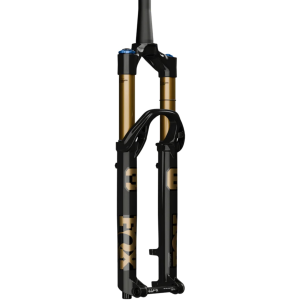

FOX 36 SL Factory GRIP X2 2027 Fork

Related:
Where To Buy
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
$1,259.00
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
$1,249.00
Free shipping on orders over $49 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
FOX 36 SL Factory GRIP X2 2027 Fork
Intended Use
Trail
Wheel Size
29"
Travel
140mm
Spring Type
FLOAT EVOL Glidecore compliant air spring
Damping
GRIP X2
External Adjustments
• Positive air chamber with volume spacers
• High-speed compression damping (8 clicks)
• Low-speed compression damping (18 clicks)
• High-speed rebound damping (8 clicks)
• Low-speed rebound damping (16 clicks)
Crown
Single
Front Axle
15mm x 110mm (Boost)
Brake Mounts
200mm direct post mount (up to 230mm compatible)
Steer Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Steer Tube Construction
Alloy
Stanchion Diameter
36mm
Colors
Kashima gold stanchions with Shiny Black lowers
Weight

Miscellaneous
• The 36 SL supplants the previous 34 model
• Revised arch and crown increase torsional stiffness by 20% over 34
• Redesigned and compliant FLOAT Glidecore air spring decouples the stanchion from the air shaft, allowing the piston to move while under bending loads
• More bushing overlap, an additional 20mm over the 34, for a smoother-feeling fork
• Relocated inboard bypass channels help curb pressure ramping for increased small bump sensitivity
• Low-profile bleeders allow pressure to escape around your finger as you press the bleeder button
• The air spring top cap uses a Shimano cassette tool for easy volume adjustments
• Optional mudguard with sturdy 4-point direct-mount attachment
• Weight reductions gained by using a lighter steerer tube, shorter stanchions, and improved lowers
• GRIP X2 damper has larger valve stack than previous GRIP2 (23 shims vs. 7 shims), for more consistent damping throughout travel, a more sensitive initial stroke, and good support without feeling harsh
• GRIP X2 damper has 24mm base valve (vs. 20mm on GRIP2), which lowers positive pressure for faster response time
• Offset: 44mm
• Axle: Kabolt X
Price
$1,259.00
