Specifications

Product

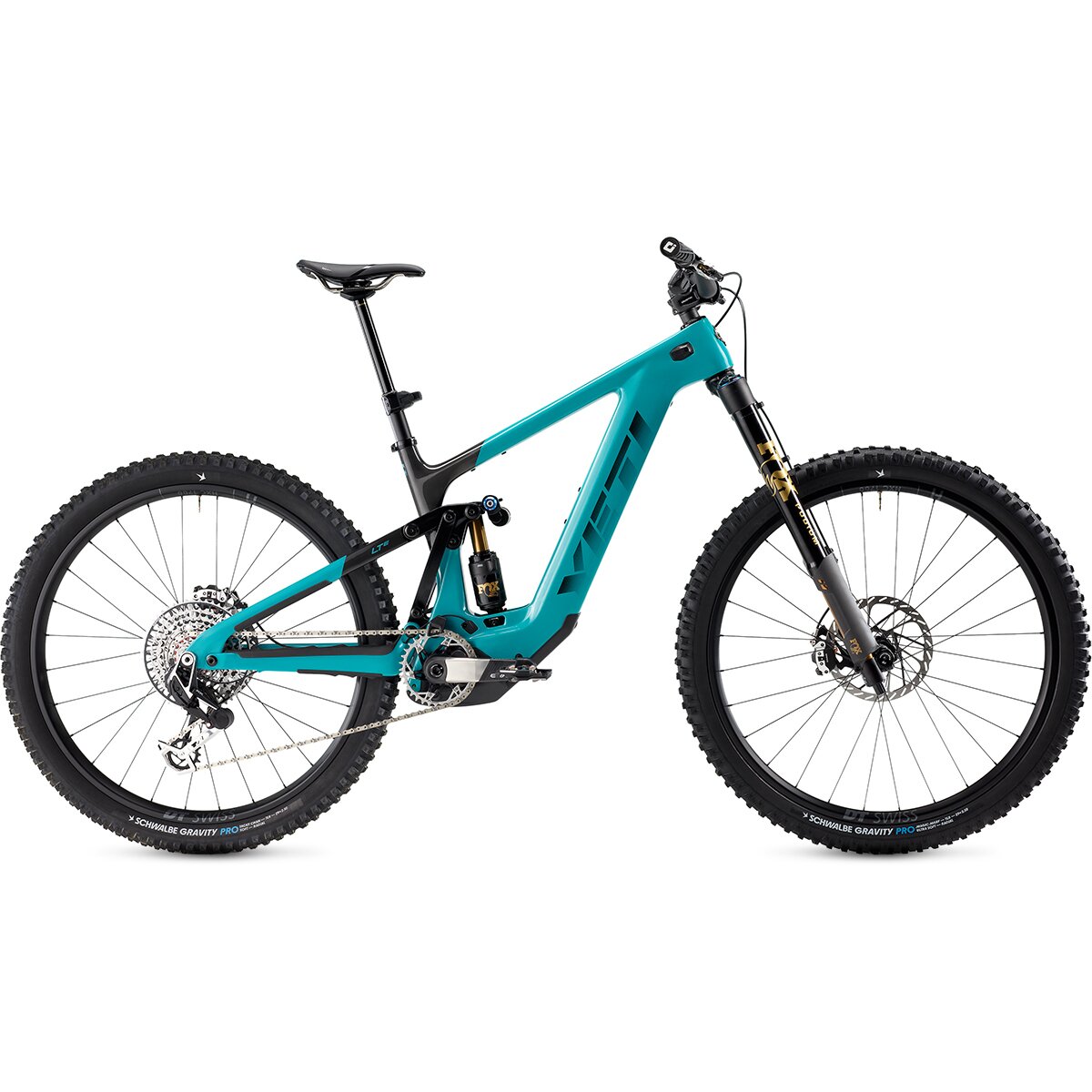

Yeti LTe XX AXS TURQ E-Bike
Model Year
2027
Intended Use
Enduro / All-Mountain
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
SM
MD
LG
XL
View Full Geometry
Sizes Additional Info
• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) via flip chips in upper linkage
• All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
• Bottom bracket heights are listed as "estimated" by Yeti
View Full Geometry
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance Line CX Race BDU384Y, 120 Nm max torque, 750 W max power, 400% assistance in Race Mode, Extended Boost option
Battery
Bosch PowerTube, integrated, removable; also compatible with 600 Wh batteries
Option: Bosch PowerMore 250 Wh range extender (compatible with MD-XL only)
Battery Capacity
800 Wh
Display/Remote
Bosch Kiox 400C full-color display, top tube integrated, ANT+ and Bluetooth connectivity; Bosch wireless Mini Remote
Modes
Turbo, eMTB+, Tour+, Eco+, Walk Assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material
Carbon Fiber
Frame Material Details
TURQ series carbon front and rear triangles, Vectran reinforcement plies in high-impact areas; molded chainstay and seatstay protection, lower down tube/motor protection/battery access door
Rear Travel
160mm
Rear Shock
FOX FLOAT X2 Factory, Kashima coating, trunnion mount, 205mm length x 65mm stroke
Fork
FOX FLOAT Podium Factory, GRIP X2 damper, Kashima coating, 36mm stanchions, 44mm offset
Fork Travel
170mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Handlebar
Yeti Carbon, 800mm width, 35mm rise, 35mm clamp diameter
Stem
Burgtec Enduro MK3, 50mm length, 35mm bar clamp
Grips
ODI Reflex
Brakes
SRAM Maven Ultimate, 4-piston
Rotors: SRAM HS2, 200mm
Brake Levers
SRAM Maven Ultimate Stealth, tool-free reach adjust and contact point adjust
Drivetrain
1x
Shifters
SRAM Eagle AXS Pod Controller, 12-speed, electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM XX Eagle AXS Transmission, 12-speed, electronic wireless
Chainguide
Yeti custom integrated upper slider
Cranks
Race Face ERA Carbon, 160mm length
Chainrings
SRAM Eagle Transmission
Pedals
None
Chain
SRAM XX Eagle Transmission Flattop, 12-speed
Cassette
SRAM XX Eagle Transmission XS-1297, 12-speed, 10-52 tooth
Rims
DT Swiss HXC 1700 Carbon, 30mm width
Hubs
DT Swiss wheelset, 20mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver
Spokes
DT Swiss wheelset
Tires
Front: Schwalbe Magic Mary, Gravity Pro Radial casing, Ultra Soft compound, 29" x 2.5"
Rear: Schwalbe Tacky Chan, Gravity Pro Radial casing, Soft compound, 29" x 2.5"
Saddle
WTB Solano SL, titanium rails
Seatpost
RockShox Reverb AXS dropper, electronic wireless
Drop: 150mm (SM), 175mm (MD), 200mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors

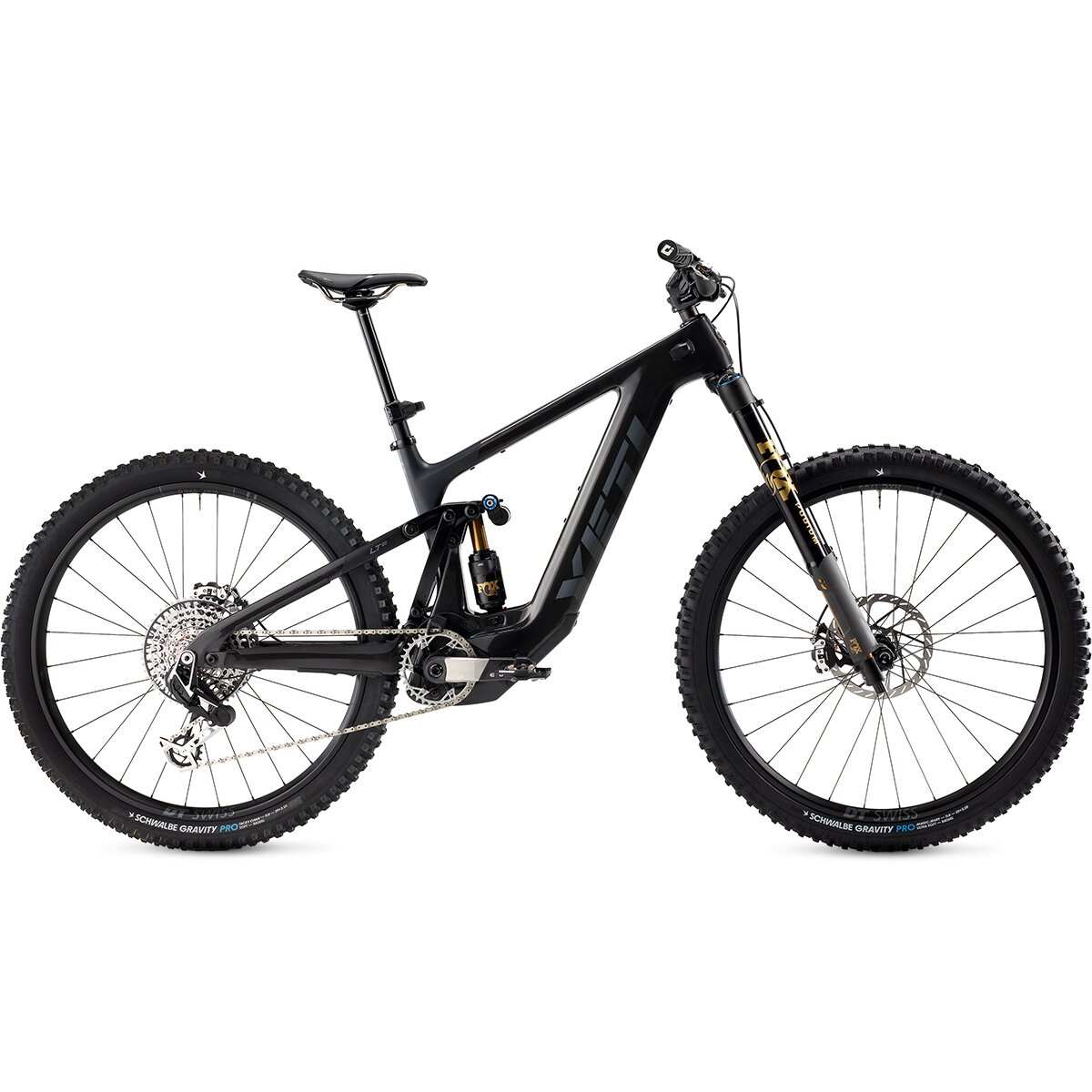

Turquoise, Raw Gloss
Warranty
Lifetime frame, 1 year paint/finish
Weight
52 lb 4.7 oz (23,720 g)
Miscellaneous
• Sixfinity 6-bar linkage rear suspension design
• Rear suspension leverage rate adjustable via 3-position flip chip in lower shock mount, with 25/30/35% options
• Compatible with mixed ("Mullet") wheels (29" front, 27.5" rear) via flip chips in upper linkage
• Internally-tunneled cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Integrated rear mudguard/fender
• Power settings customizable via Bosch eBike Flow Mobile App
• Includes Bosch 4A battery charger
Price
$15,500.00
