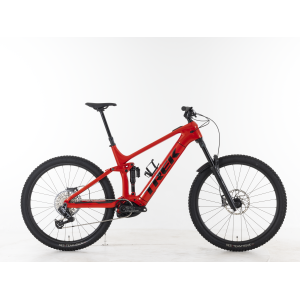

2024 Trek Rail 9.8 GX AXS T-Type Gen 4 E-Bike

Related:
Where To Buy
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
Free standard shipping on all bikes (continental U.S. only).
Flat rate shipping to Hawaii and Alaska.
$10,500.00
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Rail 9.8 GX AXS T-Type Gen 4 E-Bike
Model Year
2024
Riding Type
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
SM (High, Low)
MD (High, Low)
LG (High, Low)
XL (High, Low)
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance Line CX, Smart System, magnesium motor body, 250W power, 85 Nm max torque
Battery
Bosch PowerTube, Smart System, integrated, removable (size SM has 625 Wh capacity)
Battery Capacity
750 Wh
Display/Remote
Bosch top tube System Controller BRC3100, Smart System, Bluetooth connectivity; Bosch Mini Remote BRC3300 switch, Smart System
Modes
Turbo, Sport/eMTB, eMTB Lite, Eco, Walk Assist
Max Speed with Assist
EU and APAC: 15.5 mph (25 km/h)
All other countries: 20 mph (32.2 km/h)
Frame Material
Carbon Fiber
Frame Material Details
OCLV Mountain Carbon main frame, carbon rear triangle, magnesium rocker link, Motor Armor, molded seatstay and chainstay protection
Rear Travel
150mm
Rear Shock
RockShox Super Deluxe Select+ RT, 230mm length x 57.5mm stroke
Fork
RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, lockout, oversized crown for eMTB, 44mm offset, Maxle Stealth thru-axle
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.8" bottom
Headset
Trek Knock Block integrated, 67° radius rotation limiter, cartridge bearings
Handlebar
Bontrager Line Pro, OCLV Carbon, 780mm width, 27.5mm rise, 35mm clamp diameter
Stem
Bontrager Line Pro, 45mm length, 0° rise, 35mm bar clamp, Blendr compatible
Grips
Bontrager XR Trail Elite, nylon lock-on
Brakes
SRAM Code Bronze, 4-piston, SRAM HS2 6-bolt rotors (220mm front, 200mm rear)
Brake Levers
SRAM Code Bronze Stealth, tool-free Reach Adjust
Drivetrain
1x
Shifters
SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM GX Eagle Transmission, 12-speed, AXS electronic wireless
Chainguide
Upper slider
Cranks
SRAM GX Eagle Transmission Alloy, 160mm length
Chainrings
SRAM XX Eagle Transmission, 34 tooth, steel
Pedals
VP-536 platform, nylon
Chain
SRAM GX Eagle Transmission, 12-speed
Cassette
SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth
Rims
Bontrager Line Comp 30 wheelset, alloy, tubeless ready
Hubs
Bontrager Line Comp wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and XD driver
Spokes
Bontrager Line Comp wheelset
Tires
Front: Bontrager SE6 Team Issue, Core Strength sidewalls, aramid bead, 120 TPI, tubeless ready, 29" x 2.5"
Rear: Bontrager SE5 Team Issue, Core Strength sidewalls, aramid bead, 120 TPI, tubeless ready, 29" x 2.5"
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Bontrager Line Elite dropper, MaxFlow
Drop: 100mm (SM), 150mm (MD), 170mm (LG), 200m (XL)
Seatpost Diameter
34.9mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
One inside front triangle
Colors
Mercury, Pennyflake
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
52 lb 0.5 oz (23600 g)
Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• Removable Integrated Battery (RIB) system
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Knock Block 2.0 steerer stop (removable)
• Control Freak guided internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable, plus all-in-one navigation and activity tracking, via Bosch eBike Flow Mobile App
• Weight given for size MD set up tubeless
• Includes Bosch 4A 110V Smart System charger
• Includes SRAM AXS Powerpack battery charger
• Includes SRAM AXS power cable to power derailleur with main bike battery
• Includes Bontrager TLR tubeless tire sealant, rim strips, and valves
Price
SM with 625 Wh battery: $10,299.99
MD-XL with 750 Wh battery: $10,499.99
