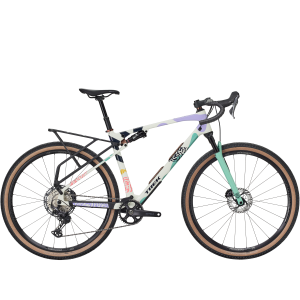

Check-OUT SL 5
$5,799.99
Fuel EX 8 Gen 7
$3,999.99
Slash+ 9.7
$7,999.97
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Rail 7 Gen 3 E-Bike
Model Year
2023
Intended Use
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
SM (High, Low)
MD (High, Low)
LG (High, Low)
XL (High, Low)
View Full Geometry
Sizes Additional Info
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot.
• All specifications listed are with 160mm travel fork with 443mm offset, for trail values of 127mm (High) and 131mm (Low) for all sizes.
View Full Geometry
Wheel Size
29"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance CX, Smart System, magnesium motor body, 250W power, 85 Nm max torque
Battery
Bosch PowerTube, Smart System, integrated, removable
Battery Capacity
625 Wh
Display/Remote
Bosch Kiox display, Smart System, full color, Bluetooth enabled, with anti-theft feature; Bosch Bluetooth LED remote switch, Smart System
Modes
Turbo, Sport/eMTB, eMTB Lite, Eco, Walk Assist
Max Speed with Assist
EU and APAC: 15.5 mph (25 km/h)
All other countries: 20 mph (32.2 km/h)
Frame Material
Aluminum
Frame Material Details
Alpha Platinum Aluminum, magnesium rocker link, Motor Armor, molded chainstay protection
Rear Travel
150mm
Rear Shock
RockShox Deluxe Select+ RT, 230mm length x 57.5mm stroke
Fork
RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, oversized crown for e-MTB, 44mm offset, Maxle Stealth thru-axle
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Trek Knock Block integrated, 58° radius rotation limiter, cartridge bearings
Handlebar
Bontrager Rhythm Comp, alloy, 780mm width, 15mm rise, 31.8mm clamp diameter
Stem
Bontrager Rhythm Comp, 50mm length, 0° rise, 31.8mm bar clamp, Knock Block compatible
Grips
Bontrager XR Trail Comp, nylon lock-on
Brakes
Shimano Deore M6120, 4-piston, Shimano RT76 6-bolt 203mm rotors
Brake Levers
Shimano Deore M6100
Drivetrain
1x
Shifters
Shimano SLX M7100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8100, 12-speed, long cage
Chainguide
Upper slider
Cranks
e*thirteen e*spec Plus
Chainrings
e*thirteen e*spec Plus, 34 tooth, steel
Pedals
Wellgo VPE-536 platform
Chain
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Rims
Bontrager Line Comp 30 wheelset, alloy, tubeless ready
Hubs
Bontrager Line Comp 30 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Rapid Drive 108 freehub and MICRO SPLINE driver
Spokes
Bontrager Line Comp 30 wheelset
Tires
Bontrager XR5 Team Issue, aramid bead, tubeless ready, 29" x 2.5"
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
TranzX JD-YSP18 dropper
Drop: 100mm (SM), 150mm (MD-XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
One inside front triangle
Colors
Dark Prismatic, Matte Blue Sage
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
54 lb 8.3 oz (24,730 g)
Miscellaneous
• ABP (Active Braking Pivot) rear suspension design
• Removable Integrated Battery (RIB) system
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot
• Straight Shot frame design with Knock Block steerer stop
• Control Freak internal cable routing
• Power settings customizable via Bosch eBike Flow Mobile App
• Weight given for size MD
• Includes Bosch 110V battery charger
• Includes Bontrager TLR rim strips
Price
$6,649.99
