2027 Santa Cruz Vala XT Di2 Carbon C E-Bike

xt spark.png?VersionId=B1HTf1ySibIZ Fw6dJ6x
xt spark
xt slate.png?VersionId=nQzzMtokT0OGkJew8ngu
detail
led
chip prog.png?VersionId=OCNqwpZ9NfWwlYnaV
chip geo.png?VersionId= Jk
xt spark.png?VersionId=B1HTf1ySibIZ Fw6dJ6x xt slate detail led.png?VersionId=aSX6tH .8QglgDYGxmh0MRDM48 chip prog chip geo
Related:
Santa Cruz
Where To Buy
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply.
$11,299.00
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
$11,999.00

Specifications

Product

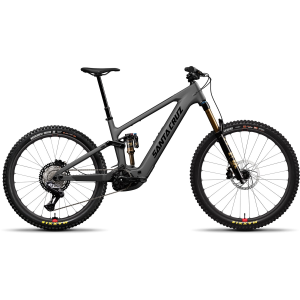

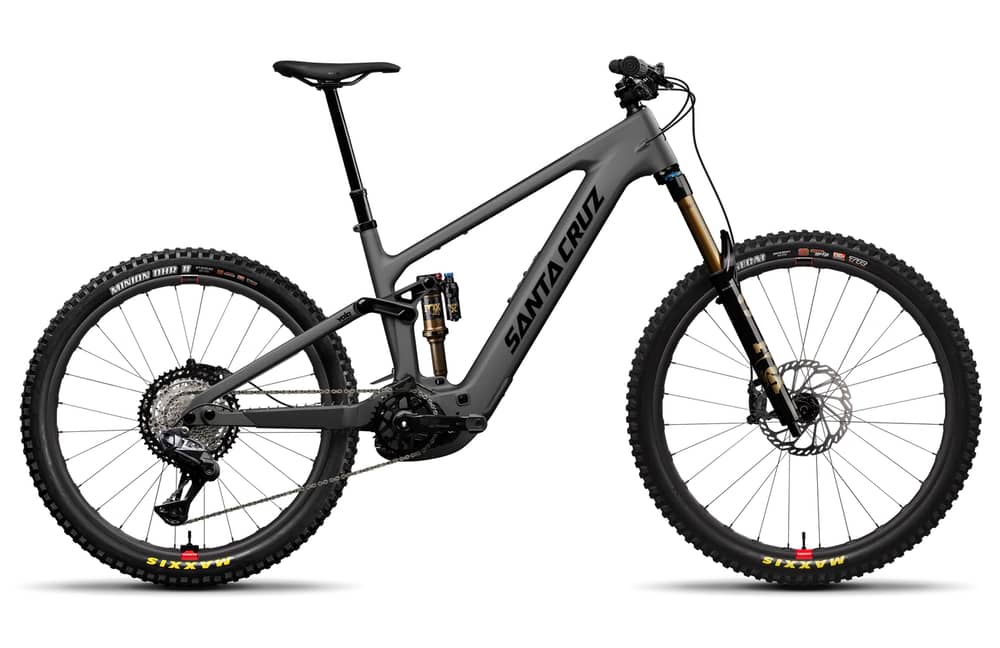

Santa Cruz Vala XT Di2 Carbon C E-Bike
Model Year
2027
Intended Use
Trail
Enduro / All-Mountain
Rider
Unisex
Sizes and Geometry
SM (Hi, Lo)
MD (Hi, Lo)
LG (Hi, Lo)
XL (Hi, Lo)
XXL (Hi, Lo)
View Full Geometry
Sizes Additional Info
• Mixed ("Mullet") wheels: 29" front, 27.5" rear


• Geometry adjustable via two-position flip chip in seatstay/rocker pivot


• Bottom bracket drop values given from front/rear axles, respectively


• All specifications listed are with 160mm travel fork with 44mm offset


• Saddle heights for effective seat tube angles: 680mm (SM), 730mm (MD), 780mm (LG), 830mm (XL), 870mm (XXL)
View Full Geometry
Wheel Size
Mixed Wheel Size
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance Line CX, 85 Nm max torque, 600 W peak power
Battery
Bosch PowerTube, integrated
Option: Bosch PowerMore 250 Wh external range extender battery
Battery Capacity
600 Wh
Display/Remote
Bosch top tube integrated LED display, Bosch Smart System wireless mode controller
Modes
Turbo, eMTB, Tour, Eco, Walk Assist
Max Speed with Assist
USA/Canada/New Zealand: 20 mph (32.2 km/h)
Other: 15.5 mph (25 km/h)
Frame Material
Carbon Fiber
Frame Material Details
Carbon C front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
150mm
Rear Shock
FOX FLOAT X Factory, Kashima coating, 205mm length x 60mm stroke
Fork
FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Cane Creek 50 Integrated, IS41 upper, IS52 lower
Handlebar
OneUp Carbon, 35mm clamp diameter
SM: 760mm width, 20mm rise; MD-XXL: 800mm width, 35mm rise
Stem
Santa Cruz, CNC alloy, 40mm length, 35mm bar clamp
Grips
Santa Cruz House
Brakes
SRAM Maven Silver, 4-piston
Rotors: SRAM HS2, 6-bolt, 200mm
Brake Levers
SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust
Drivetrain
1x
Shifters
Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, Wolf Tooth Shiftmount bracket
Front Derailleur
None
Rear Derailleur
Shimano Deore XT M8260 Di2, 12-speed, electronic wireless, SGS cage
Chainguide
OneUp upper slider
Cranks
e*thirteen Helix Race Alloy e*spec, 160mm length
Chainrings
e*thirteen Helix Race
Pedals
None
Chain
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8200, 12-speed, 10-51 tooth
Rims
Reserve 30 HD Carbon, 30mm width, 28 hole
Hubs
DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Ratchet DEG DF (Degrees of Freedom) adjustable anti-kickback freehub and MICRO SPLINE driver
Spokes

Tires
Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, 29" x 2.5"
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, DoubleDown (DD) casing, 27.5" x 2.5"
Saddle
WTB Silverado Medium Fusion, CrMo SL rails
Seatpost
OneUp dropper
Drop: 120mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
27.5" x 2.5"
Bottle Cage Mounts
One inside front triangle, plus accessory mounts under top tube
Colors
Gloss Slate Blue, Matte Carbon Sparkle
Warranty
Lifetime frame, pivot bearings, handlebars, and Reserve rims
Weight
47 lb 1.8 oz (21370 g)
Miscellaneous
• Four-Bar Horst Link rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via two-position flip chip in seatstay/rocker pivot
• Rear suspension progression adjustable (26-29%) via two-position flip chip at lower shock mount
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable via Bosch eBike Flow Mobile App, which also features route planning and navigation functions
• Compatible with optional Bosch PowerMore 250 Wh external range extender battery
• Includes Reserve Fillmore tubeless valves
Price
$11,999.00
