Specifications

Product

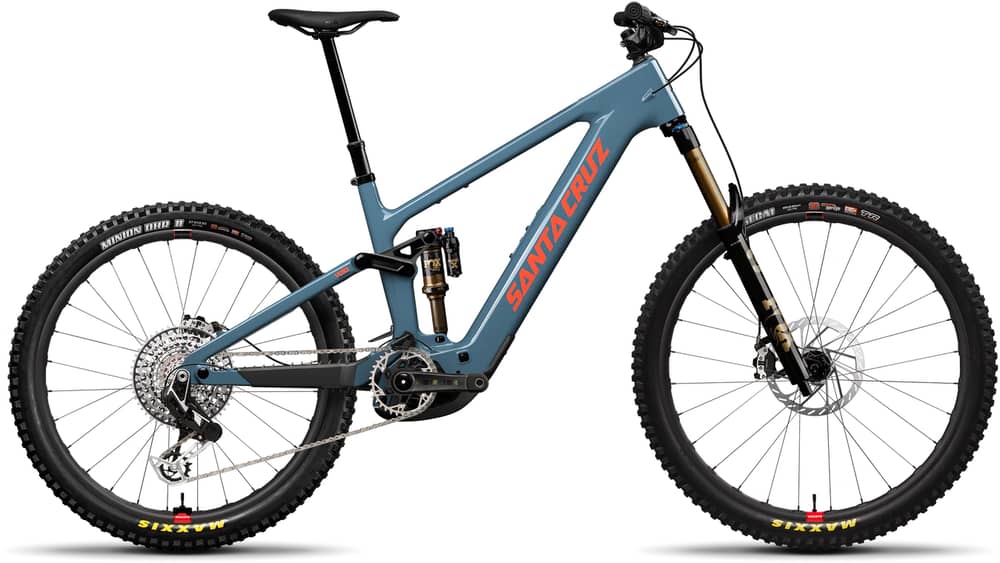

Santa Cruz Vala XX AXS Lite RSV Carbon CC E-Bike

Model Year

2027

Intended Use

Trail

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

SM (Hi, Lo)

MD (Hi, Lo)

LG (Hi, Lo)

XL (Hi, Lo)

XXL (Hi, Lo)

View Full Geometry

Size	SM (Hi, Lo)	MD (Hi, Lo)	LG (Hi, Lo)	XL (Hi, Lo)	XXL (Hi, Lo)
Top Tube Length	573mm	601mm	622mm	645mm	673mm
Head Tube Angle	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°
Head Tube Length	110mm	120mm	130mm	145mm	160mm
Seat Tube Angle	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°
Seat Tube Length	380mm	400mm	420mm	460mm	500mm
Bottom Bracket Height	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)
Chainstay Length	439mm	440mm	443mm	446mm	450mm
Wheelbase	1210mm	1240mm	1268mm	1297mm	1333mm
Standover	741mm	735mm	734mm	734mm	728mm
Reach	435mm, 432mm	460mm, 456mm	480mm, 477mm	500mm, 497mm	525mm, 522mm
Stack	623mm, 625mm	632mm, 635mm	641mm, 643mm	655mm, 657mm	668mm, 670mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Geometry adjustable via two-position flip chip in seatstay/rocker pivot • Bottom bracket drop values given from front/rear axles, respectively • All specifications listed are with 160mm travel fork with 44mm offset • Saddle heights for effective seat tube angles: 680mm (SM), 730mm (MD), 780mm (LG), 830mm (XL), 870mm (XXL)

Sizes Additional Info

• Mixed ("Mullet") wheels: 29" front, 27.5" rear

• Geometry adjustable via two-position flip chip in seatstay/rocker pivot

• Bottom bracket drop values given from front/rear axles, respectively

• All specifications listed are with 160mm travel fork with 44mm offset

• Saddle heights for effective seat tube angles: 680mm (SM), 730mm (MD), 780mm (LG), 830mm (XL), 870mm (XXL)

View Full Geometry

Size	SM (Hi, Lo)	MD (Hi, Lo)	LG (Hi, Lo)	XL (Hi, Lo)	XXL (Hi, Lo)
Top Tube Length	573mm	601mm	622mm	645mm	673mm
Head Tube Angle	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°	64.2°, 63.9°
Head Tube Length	110mm	120mm	130mm	145mm	160mm
Seat Tube Angle	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°	77.5°, 77.2°
Seat Tube Length	380mm	400mm	420mm	460mm	500mm
Bottom Bracket Height	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)	344mm (28/11mm drop), 340mm (32/15mm drop)
Chainstay Length	439mm	440mm	443mm	446mm	450mm
Wheelbase	1210mm	1240mm	1268mm	1297mm	1333mm
Standover	741mm	735mm	734mm	734mm	728mm
Reach	435mm, 432mm	460mm, 456mm	480mm, 477mm	500mm, 497mm	525mm, 522mm
Stack	623mm, 625mm	632mm, 635mm	641mm, 643mm	655mm, 657mm	668mm, 670mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Geometry adjustable via two-position flip chip in seatstay/rocker pivot • Bottom bracket drop values given from front/rear axles, respectively • All specifications listed are with 160mm travel fork with 44mm offset • Saddle heights for effective seat tube angles: 680mm (SM), 730mm (MD), 780mm (LG), 830mm (XL), 870mm (XXL)

Wheel Size

Mixed Wheel Size

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Bosch Performance Line CX, 85 Nm max torque, 600 W peak power

Battery

Bosch PowerTube, integrated
Option: Bosch PowerMore 250 Wh external range extender battery

Battery Capacity

600 Wh

Display/Remote

Bosch top tube integrated LED display, Bosch Smart System wireless mode controller

Modes

Turbo, eMTB, Tour, Eco, Walk Assist

Max Speed with Assist

USA/Canada/New Zealand: 20 mph (32.2 km/h)

Other: 15.5 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Carbon CC front and rear triangles; molded chainstay, seatstay, and lower down tube protection

Rear Travel

150mm

Rear Shock

FOX FLOAT X Factory, Kashima coating, 205mm length x 60mm stroke

Fork

FOX FLOAT 36 Factory, GRIP X2 damper, Kashima coating, 44mm offset

Fork Travel

160mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Chris King DropSet 3 Integrated, IS41 upper, IS52 lower

Handlebar

OneUp Carbon, 35mm clamp diameter
SM: 760mm width, 20mm rise; MD-XXL: 800mm width, 35mm rise

Stem

Industry Nine A35, 40mm length, 35mm bar clamp

Grips

Santa Cruz House

Brakes

SRAM Maven Ultimate, 4-piston
Rotors: SRAM HS2, 6-bolt, 200mm

Brake Levers

SRAM Maven Ultimate Stealth, tool-free reach adjust and contact point adjust

Drivetrain

Shifters

SRAM Eagle Pod Rocker Controller, 12-speed, AXS electronic wireless

Front Derailleur

None

Rear Derailleur

SRAM XX Eagle Transmission, 12-speed, AXS electronic wireless

Chainguide

OneUp upper slider

Cranks

e*thirteen Helix Race Carbon e*spec, 160mm length

Chainrings

SRAM Eagle Transmission

Pedals

None

Chain

SRAM XX Eagle Transmission Flattop, 12-speed

Cassette

SRAM XX Eagle Transmission XS-1297, 12-speed, 10-52 tooth

Rims

Reserve 30 HD Carbon, 30mm width, 28 hole

Hubs

DT Swiss 240, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with Ratchet DEG DF (Degrees of Freedom) adjustable anti-kickback freehub and XD driver

Spokes

Tires

Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, 29" x 2.5"
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, 27.5" x 2.5"

Saddle

WTB Silverado Medium Fusion, stainless steel rails

Seatpost

OneUp dropper
Drop: 120mm (SM), 180mm (MD), 210mm (LG), 240mm (XL/XXL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

27.5" x 2.5"

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube

Colors

Gloss Slate Blue, Matte Carbon Sparkle

Warranty

Lifetime frame, pivot bearings, handlebars, and Reserve rims

Weight

45 lb 8.1 oz (20640 g)

Miscellaneous

• Four-Bar Horst Link rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via two-position flip chip in seatstay/rocker pivot
• Rear suspension progression adjustable (26-29%) via two-position flip chip at lower shock mount
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable via Bosch eBike Flow Mobile App, which also features route planning and navigation functions
• Compatible with optional Bosch PowerMore 250 Wh external range extender battery
• Includes Reserve Fillmore tubeless valves
