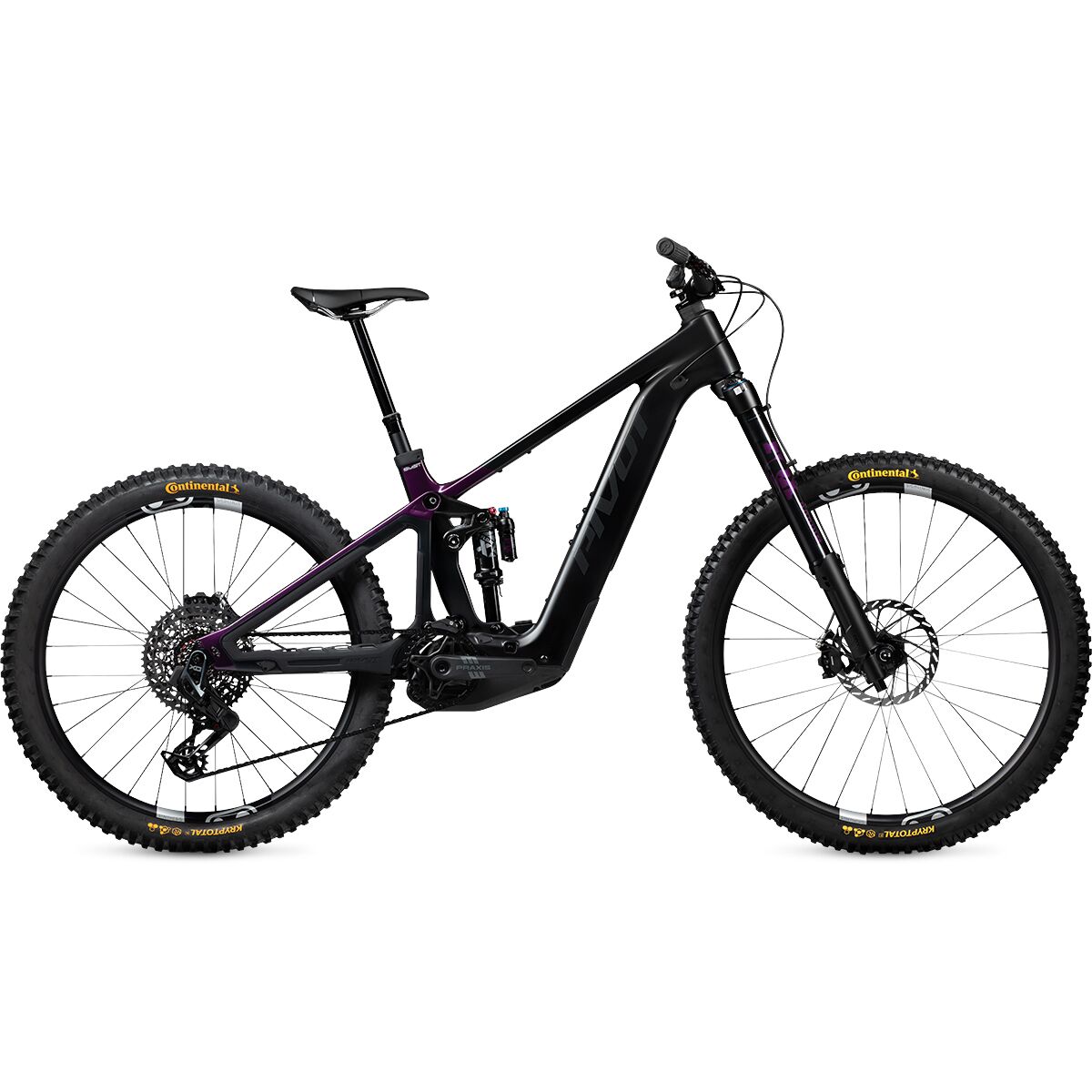

Pivot Shuttle LT V3 Pro X0 Transmission e-Bike Black Royal Purple, M	Pivot Shuttle LT V3 Pro X0 Transmission e-Bike Black Royal Purple, M $12,599.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $12,599.00	Buy
Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 \| Black Royal Purple \| S	Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 \| Black Royal Purple \| S $12,599.00	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available E-Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Pivot Shuttle LT Pro X0 Eagle Transmission E-Bike

Model Year

2026

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

SM (High, Low)

MD (High, Low)

LG (High, Low)

XL (High, Low)

View Full Geometry

Size	SM (High, Low)	MD (High, Low)	LG (High, Low)	XL (High, Low)
Top Tube Length	584/605mm, 586/607mm	612/632mm, 613/634mm	629/649mm, 631/651mm	652/671mm, 654/674mm
Head Tube Angle	64.0°, 63.2°	64.0°, 63.2°	64.0°, 63.2°	64.0°, 63.2°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°
Seat Tube Length	378mm	399mm	432mm	470mm
Bottom Bracket Height	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)
Chainstay Length	443/452mm	443/452mm	443/452mm	443/452mm
Wheelbase	1232/1240mm	1261/1269mm	1280/1288mm	1306/1313mm
Standover	689mm, 678mm	689mm, 678mm	704mm, 693mm	720mm, 709mm
Reach	443mm, 434mm	468mm, 459mm	483mm, 474mm	503mm, 494mm
Stack	639mm, 645mm	648mm, 655mm	657mm, 664mm	666mm, 673mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Seat tube angle and top tube lengths given for steep/slack seatpost position, respectively • Chainstay and wheelbase lengths given for short/long Swinger Dropout positions, respectively • All specifications listed are with 170mm travel fork with 44mm offset

Sizes Additional Info

• Mixed ("Mullet") wheels: 29" front, 27.5" rear

• Seat tube angle and top tube lengths given for steep/slack seatpost position, respectively

• Chainstay and wheelbase lengths given for short/long Swinger Dropout positions, respectively

• All specifications listed are with 170mm travel fork with 44mm offset

View Full Geometry

Size	SM (High, Low)	MD (High, Low)	LG (High, Low)	XL (High, Low)
Top Tube Length	584/605mm, 586/607mm	612/632mm, 613/634mm	629/649mm, 631/651mm	652/671mm, 654/674mm
Head Tube Angle	64.0°, 63.2°	64.0°, 63.2°	64.0°, 63.2°	64.0°, 63.2°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°	78.0/76.5°, 77.2/75.7°
Seat Tube Length	378mm	399mm	432mm	470mm
Bottom Bracket Height	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)	346mm (28mm drop), 335mm (22mm drop)
Chainstay Length	443/452mm	443/452mm	443/452mm	443/452mm
Wheelbase	1232/1240mm	1261/1269mm	1280/1288mm	1306/1313mm
Standover	689mm, 678mm	689mm, 678mm	704mm, 693mm	720mm, 709mm
Reach	443mm, 434mm	468mm, 459mm	483mm, 474mm	503mm, 494mm
Stack	639mm, 645mm	648mm, 655mm	657mm, 664mm	666mm, 673mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Seat tube angle and top tube lengths given for steep/slack seatpost position, respectively • Chainstay and wheelbase lengths given for short/long Swinger Dropout positions, respectively • All specifications listed are with 170mm travel fork with 44mm offset

Wheel Size

Mixed Wheel Size

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Bosch Gen 5 Performance Line CX Race Edition, 100 Nm max torque, 750 W peak power, 400% assistance in Race Mode, Extended Boost option

Battery

Integrated, removable, Floating Battery Technology
Option: Bosch PowerMore Range Extender, 250 Wh

Battery Capacity

800 Wh

Display/Remote

Bosch Kiox 400C top tube integrated display, Bosch wireless remote

Modes

Race, Turbo, eMTB+, Tour+, Eco+, Walk Assist

Max Speed with Assist

USA/Canada/New Zealand: 20 mph (32.2 km/h)

Other: 15.5 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core Carbon front and rear triangles; injection-molded rubberized down tube and swingarm (chainstay, seatstay, and upright) protection

Rear Travel

Short chainstay setting: 162mm

Long chainstay setting: 165mm

Rear Shock

FOX FLOAT X Performance Elite, trunnion mount, 205mm length x 65mm stroke

Fork

FOX FLOAT Podium Performance Elite, GRIP X2 damper, 44mm offset

Fork Travel

170mm

Head Tube Diameter

Straight, 56mm

Headset

Pivot Precision, sealed cartridge bearings, ZS56 upper/lower

Handlebar

Phoenix Team Carbon, 780mm width
Rise: 20mm (SM), 35mm (MD-XL)

Stem

Phoenix Team Enduro V2
Length: 40mm (SM-LG), 50mm (XL)

Grips

Phoenix Factory, lock-on

Brakes

SRAM Maven Silver, 4-piston
Rotors: SRAM HS2, CENTER LOCK, 200mm

Brake Levers

SRAM Maven Silver Stealth, tool-free reach adjust and contact point adjust

Drivetrain

Shifters

SRAM Eagle Pod Controller, 12-speed, AXS electronic wireless

Front Derailleur

None

Rear Derailleur

SRAM X0 Eagle Transmission, 12-speed, AXS electronic wireless

Chainguide

Upper slider

Cranks

Praxis Alloy eCranks, 160mm length

Chainrings

SRAM Eagle Transmission, 34 tooth

Pedals

None

Chain

SRAM X0 Eagle Transmission Flattop, 12-speed

Cassette

SRAM GX Eagle Transmission XS-1275, 12-speed, 10-52 tooth

Rims

Crankbrothers Synthesis DH Alloy, 31mm width

Hubs

Crankbrothers wheelset, 20mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with XD driver

Spokes

Crankbrothers wheelset

Tires

Front: Continental Kyrptotal F, Super Soft compound, Enduro casing, 29" x 2.4"
Rear: Continental Kyrptotal R, Soft compound, Enduro casing, 27.5" x 2.6"

Saddle

Pivot Pro E-Bike

Seatpost

OneUp V3 dropper
Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

29" x 2.5" or 27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube, compatible with Pivot Tool Dock System

Colors

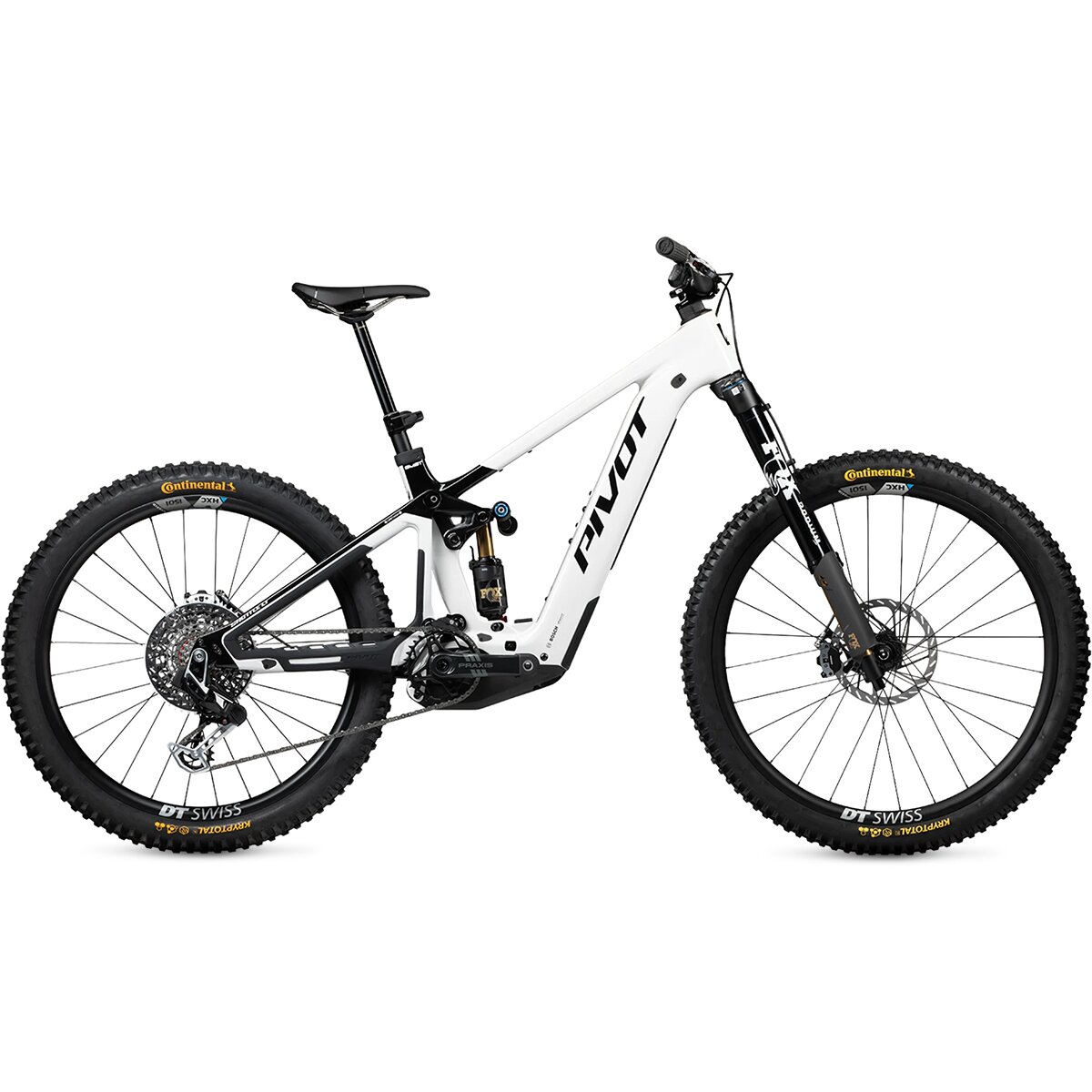

Stone Cold White, Black Royal Purple

Warranty

Lifetime frame; 5 years Pivot/Phoenix components; 1 year paint/finish

Weight

Miscellaneous

• dw-link rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear; compatible with 29" rear wheels via two-position flip chip in upper linkage
• Rear suspension progressivity adjustable via two-position (linear/progressive) flip chip at lower shock bolt
• Chainstay/wheelbase length adjustable via two-position Swinger Dropouts
• Seat tube angle adjustable via two-position Slacky McSteepTube design
• Cable Port System internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable via Bosch x Pivot Cycles Flow Mobile App

Price

Standard: $12,599.00

With Bosch PowerMore Range Extender battery: $13,198.00

More Info

Pivot Revamps Its Shuttle LT - Now With Bosch’s Performance Line CX Motor and Endless Adjustability (press release)

Pivot website
