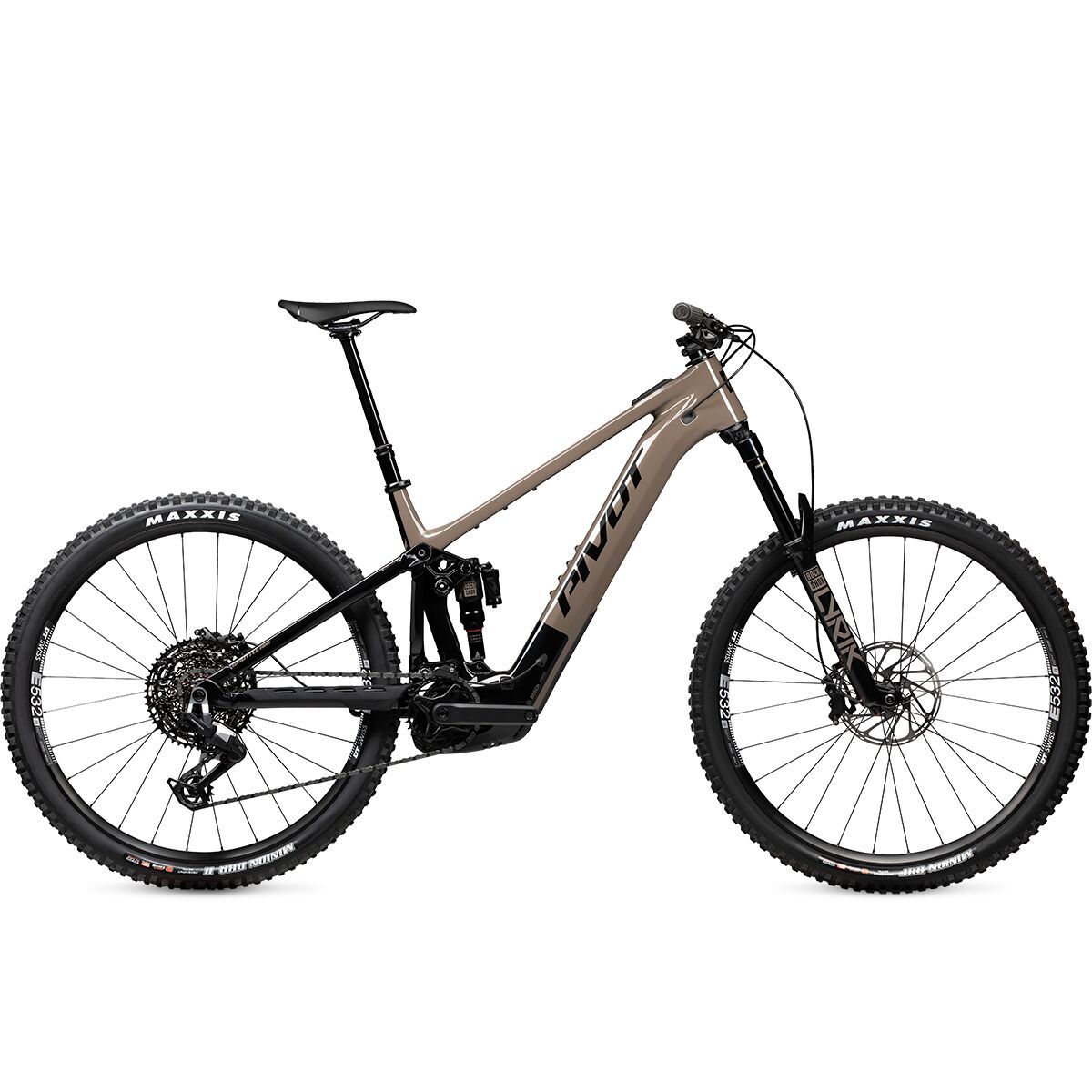

Pivot Shuttle AM V2 Ride Eagle 70/90 E-Bike Brown, MD	Pivot Shuttle AM V2 Ride Eagle 70/90 E-Bike Brown, MD $8,499.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $8,499.00	Buy
Pivot Cycles \| Pivot Shuttle Am Ride 70/90 E-Bike 2026 \| Badlands Brown \| M	Pivot Cycles \| Pivot Shuttle Am Ride 70/90 E-Bike 2026 \| Badlands Brown \| M $8,499.00	Buy
Pivot Cycles \| Pivot Shuttle Am Pro X0 E-Bike 2026 \| Blue Dark Sky \| M	Pivot Cycles \| Pivot Shuttle Am Pro X0 E-Bike 2026 \| Blue Dark Sky \| M $11,999.00	Buy
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Pivot Shuttle AM Ride Eagle 70/90 E-Bike

Model Year

2025

Intended Use

Enduro / All-Mountain

Rider

Unisex

Sizes and Geometry

SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry

Size	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	599mm, 598mm	631mm, 630mm	649mm, 647mm	671mm, 670mm
Head Tube Angle	64.1°, 64.5°	64.1°, 64.5°	64.1°, 64.5°	64.1°, 64.5°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	76.5°, 76.9°	76.5°, 76.9°	76.5°, 76.9°	76.5°, 76.9°
Seat Tube Length	378mm	399mm	432mm	470mm
Bottom Bracket Height	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)
Chainstay Length	444mm	444mm	444mm	444mm
Wheelbase	1217mm, 1216mm	1251mm, 1250mm	1270mm, 1269mm	1295mm, 1294mm
Standover	677mm, 682mm	676mm, 682mm	682mm, 687mm	687mm, 692mm
Reach	431mm, 435mm	461mm, 465mm	476mm, 480mm	496mm, 500mm
Stack	632mm, 629mm	642mm, 638mm	651mm, 647mm	660mm, 656mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 160mm travel fork with 44mm offset

Sizes Additional Info

• Geometry adjustable via two-position flip chip in upper linkage
• All specifications listed are with 160mm travel fork with 44mm offset

View Full Geometry

Size	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	599mm, 598mm	631mm, 630mm	649mm, 647mm	671mm, 670mm
Head Tube Angle	64.1°, 64.5°	64.1°, 64.5°	64.1°, 64.5°	64.1°, 64.5°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	76.5°, 76.9°	76.5°, 76.9°	76.5°, 76.9°	76.5°, 76.9°
Seat Tube Length	378mm	399mm	432mm	470mm
Bottom Bracket Height	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)	345mm (29mm drop), 350mm (24mm drop)
Chainstay Length	444mm	444mm	444mm	444mm
Wheelbase	1217mm, 1216mm	1251mm, 1250mm	1270mm, 1269mm	1295mm, 1294mm
Standover	677mm, 682mm	676mm, 682mm	682mm, 687mm	687mm, 692mm
Reach	431mm, 435mm	461mm, 465mm	476mm, 480mm	496mm, 500mm
Stack	632mm, 629mm	642mm, 638mm	651mm, 647mm	660mm, 656mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 160mm travel fork with 44mm offset

Wheel Size

29"

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Bosch Performance CX Gen 5, 100 Nm max torque, 750 W max power

Battery

Integrated
Option: Bosch PowerMore 250 Wh range extender

Battery Capacity

800 Wh

Display/Remote

Bosch System Controller display, top tube integrated; Bosch Mini Remote

Modes

Turbo, eMTB+, eMTB, Tour+, Walk Assist

Max Speed with Assist

USA/Canada/New Zealand: 20 mph (32.2 km/h)

Other: 15.5 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon front and rear triangles; injection molded chainstay, seatstay, and lower down tube protection

Rear Travel

150mm

Rear Shock

RockShox Super Deluxe Select, trunnion mount

Fork

RockShox Lyrik Select+, 35mm stanchions, 44mm offset

Fork Travel

160mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Pivot Precision, sealed cartridge bearings, ZS49 upper, ZS56 lower

Handlebar

Phoenix Race Low Rise Carbon

Stem

Phoenix Team Enduro/Trail

Grips

Phoenix Factory, lock-on

Brakes

SRAM DB8, 4-piston
Rotors: SRAM CenterLine, CENTER LOCK, 200mm

Brake Levers

SRAM DB8 Stealth, tooled reach adjust

Drivetrain

Shifters

SRAM Eagle 90 Transmission, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM Eagle 90 Transmission, 12-speed

Chainguide

Upper slider

Cranks

FSA CK-220/IS Armset Alloy, 160mm length

Chainrings

34 tooth

Pedals

None

Chain

SRAM Eagle 70 Transmission Flattop, 12-speed

Cassette

SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth

Rims

DT Swiss E 532 Alloy, 30mm inner width

Hubs

DT Swiss wheelset, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) with HG driver

Spokes

DT Swiss wheelset

Tires

Front: Maxxis Minion DHF, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.5” WT
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4” WT

Saddle

Pivot Ride E-Bike

Seatpost

JD YSP23GLS dropper, adjustable travel
Drop: 130-150mm (SM), 150-170mm (MD), 180-200mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

29" x 2.5" or 27.5" x 2.6"

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube (compatible with Pivot Dock Tool System)

Colors

Badlands Brown, Blue Dark Sky

Warranty

10 years frame; 5 years Pivot/Phoenix components; 1 year paint/finish/bearings

Weight

Miscellaneous

• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with mixed ("Mullet") setups (29" front, 27.5" rear) with flip chip in High position
• Cable Port System internal cable routing, with new port design
• SRAM UDH (Universal Derailleur Hanger)
• New charging port design for better protection from the elements
• Power settings customizable via Bosch eBike Flow Mobile App
• Photos may show alternate builds

Price

$8,499.00
