2027 Orbea Wild LT M20 E-Bike

m20 gold 29.jpg?VersionId=oWZxi7LUVofIkxlgi

Orbea

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $49 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Orbea Wild LT M20 E-Bike

Model Year

2027

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

SM (High, Low)

MD (High, Low)

LG (High, Low)

XL (High, Low)

View Full Geometry

Size	SM (High, Low)	MD (High, Low)	LG (High, Low)	XL (High, Low)
Head Tube Angle	63.90°, 63.34°	63.90°, 63.34°	63.90°, 63.34°	63.90°, 63.34°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	78.0°, 77.5°	78.0°, 77.5°	78.0°, 77.5°	78.0°, 77.5°
Seat Tube Length	400mm	405mm	410mm	420mm
Bottom Bracket Height	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)
Chainstay Length	448mm	448mm	448mm	448mm
Wheelbase	1229mm, 1230mm	1256mm, 1257mm	1288mm, 1289mm	1317mm, 1318mm
Reach	436.25mm, 430mm	461.25mm, 455mm	486.25mm, 480mm	511.25mm, 505mm
Stack	624.5mm, 628.71mm	633.48mm, 637.93mm	642.46mm, 647.15mm	651.44mm, 656.37mm
Additional Info	• Available with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via dedicated linkages • Geometry adjustable via two-position flip chip in lower shock mount • All specifications listed are with 170mm travel fork

Sizes Additional Info

• Available with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via dedicated linkages
• Geometry adjustable via two-position flip chip in lower shock mount
• All specifications listed are with 170mm travel fork

View Full Geometry

Size	SM (High, Low)	MD (High, Low)	LG (High, Low)	XL (High, Low)
Head Tube Angle	63.90°, 63.34°	63.90°, 63.34°	63.90°, 63.34°	63.90°, 63.34°
Head Tube Length	110mm	120mm	130mm	140mm
Seat Tube Angle	78.0°, 77.5°	78.0°, 77.5°	78.0°, 77.5°	78.0°, 77.5°
Seat Tube Length	400mm	405mm	410mm	420mm
Bottom Bracket Height	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)	360.5mm (20mm drop), 352.5mm (28mm drop)
Chainstay Length	448mm	448mm	448mm	448mm
Wheelbase	1229mm, 1230mm	1256mm, 1257mm	1288mm, 1289mm	1317mm, 1318mm
Reach	436.25mm, 430mm	461.25mm, 455mm	486.25mm, 480mm	511.25mm, 505mm
Stack	624.5mm, 628.71mm	633.48mm, 637.93mm	642.46mm, 647.15mm	651.44mm, 656.37mm
Additional Info	• Available with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via dedicated linkages • Geometry adjustable via two-position flip chip in lower shock mount • All specifications listed are with 170mm travel fork

Wheel Size

29"

Mixed Wheel Size

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Avinox M2S with RS tune, 130 Nm max continuous torque, 250 W nominal power, 750 W peak power; 150 Nm max torque in Boost mode for 30 seconds

Battery

Avinox, integrated

Battery Capacity

Standard: 800 Wh

Option: 600 Wh

Display/Remote

Avinox DP100 display, top tube integrated; Avinox BC100 Remote

Modes

Auto, Eco, Trail, Turbo, Boost, Intelligent Walk Assist with Auto Hold and Hill Start Assist functions

Max Speed with Assist

USA/Canada/New Zealand: 20 mph (32.2 km/h)

Other: 15.5 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

OMR Carbon front and rear triangles; molded chainstay, seatstay, shuttle guard, and lower down tube protection; custom molded motor skid plate

Rear Travel

170mm

Rear Shock

FOX FLOAT X2 Performance, EVOL LV, 2-position platform lever, custom tune, trunnion mount, 205mm length x 65mm stroke
Option: FOX FLOAT X2 Factory

Fork

RockShox ZEB Base E-MTB, DebonAir+ spring, 38mm stanchions
Option: FOX FLOAT 38 Performance, GRIP damper

Fork Travel

170mm

Head Tube Diameter

Straight, 1.5"

Headset

ACROS, ZS56 upper/lower

Handlebar

OC Mountain Control MC30, 800mm width, 20mm rise
Options: OC Mountain Control MC10 Carbon, 800mm width, 20mm or 35mm rise options; OC Mountain Control MC20 Alu SL, 800mm width, 20mm or 35mm rise options

Stem

OC Mountain Control MC21, 0° rise
Option: OC Mountain Control MC11 Alu SL, 0° rise

Grips

OC, lock-on

Brakes

Shimano MT420, 4-piston
Rotors: Galfer Wave, 200mm
Option: Shimano MT620, 4-piston

Brake Levers

Shimano MT420
Option: Shimano MT620

Drivetrain

Shifters

Shimano Deore M6200, 12-speed, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano Deore M7200, 12-speed, SGS cage, SHADOW RD+

Chainguide

Orbea eBike upper slider

Cranks

e*thirteen Helix Core e*spec Alloy, 155mm length

Chainrings

e*thirteen Helix Race e*spec, direct mount, 34 tooth

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6200, 12-speed, 10-51 tooth

Rims

Race Face AR 30c Alloy
Option: OQUO Mountain Control MC32TEAM POWER Alloy

Hubs

Race Face wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver

Spokes

Race Face wheelset

Tires

Front: Maxxis Assegai, 3C MaxxGrip compound, EXO+ casing, 60 TPI, TR, 29" x 2.5"
Rear: Maxxis Minion DHR II, 3C MaxxTerra compound, DoubleDown (DD) casing, 2x120 TPI, TR, 2.4"
Options: Assegai/Minion DHR II combo with DH casings, Schwalbe Magic Mary/Tacky Chan combo

Saddle

fi'zi:k Aidon, manganese rails, 145mm width, 208mm length

Seatpost

OC Mountain Control MC22 dropper, Shimano MT500 I-SPEC EV remote lever
Option: OC Mountain Control MC10 dropper, wired electronic, Orbea eDropper remote lever

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

One inside front triangle

Colors

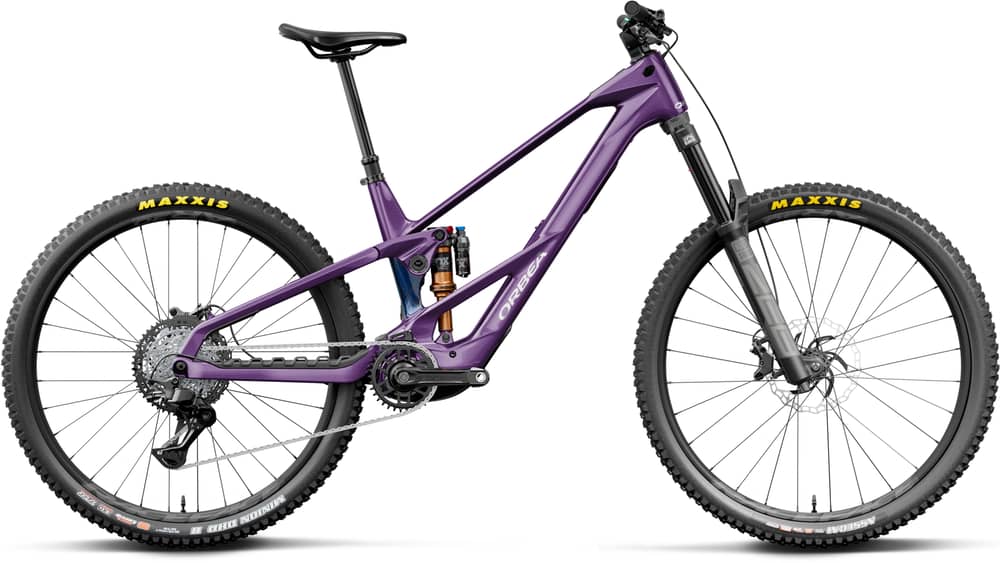

Smooth Silver/Escape Green Carbon View, Magic Gold Carbon View/Titan Gold, Royal Plum/Noctiluca Carbon View

Warranty

Lifetime frame, 3 years paint and finish

Weight

Miscellaneous

• Concentric Boost II rear suspension design
• Available with 29" wheels front/rear or mixed ("Mullet") wheels (29" front, 27.5" rear) via dedicated linkages
• Geometry adjustable via two-position flip chip in lower shock mount
• Secure Battery System (SBS)
• Internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Compatible with dual-crown forks
• Power settings customizable via Avinox Ride Mobile App
• European price: 6999 EUR
• UK price: 6199 GBP

Includes:
• Avinox 4A battery charger; 12A charger also available
• OC Computer Mount CM-05 for stem topcap

Price

$7,717.00
