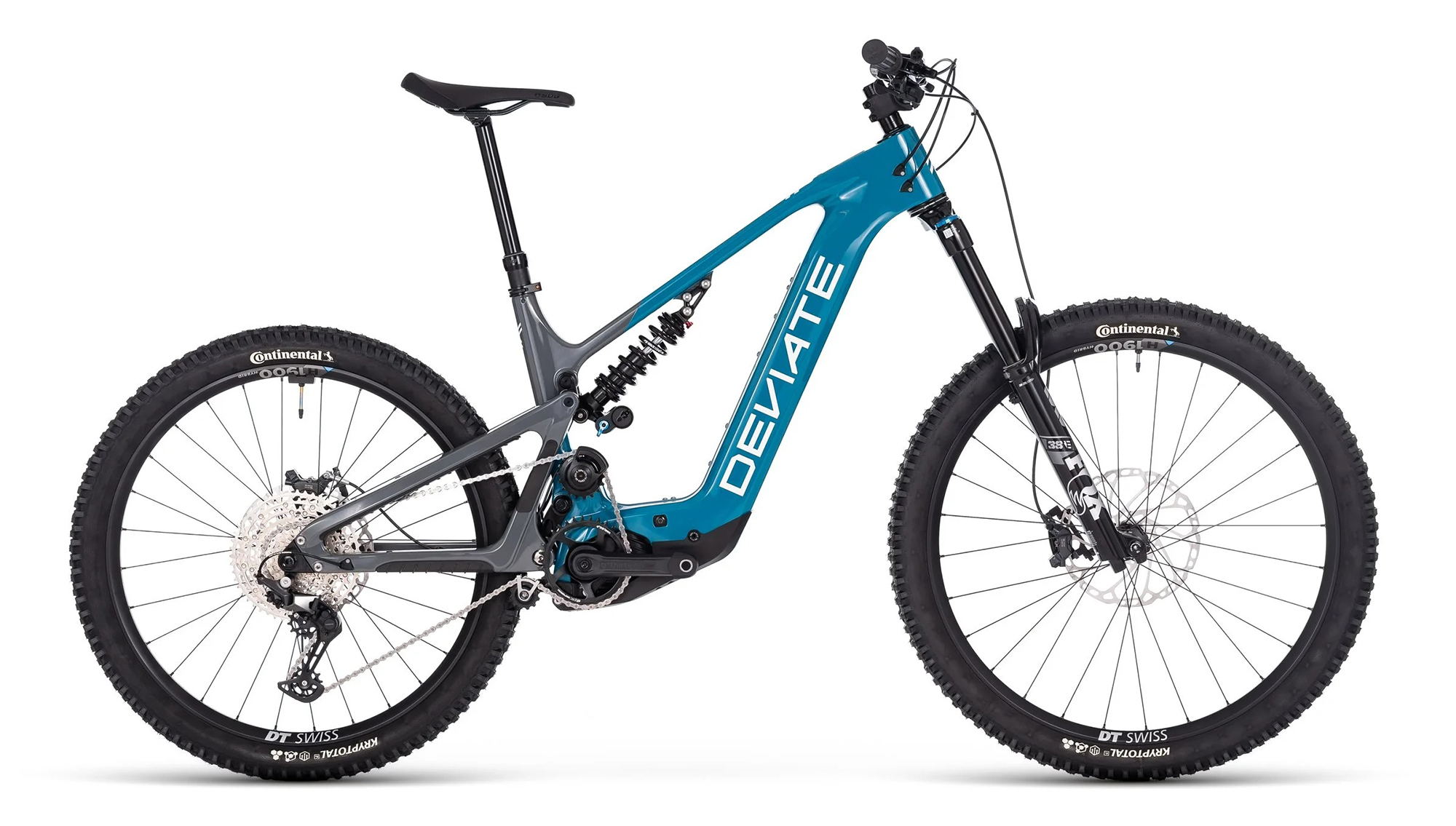

2026 Deviate Kurgan Elite E-Bike

elite 02.jpg?VersionId=f0H6KidSoDP72vDGfP

elite 03.jpg?VersionId=1DOldrjumfpccqu068Iux3

elite 03.jpg?VersionId=1p0v3.xAohXTO6OvOcKs.nb2ef3V6

battery.jpg?VersionId=1BeTCfxSWUU.pg IK9ojFIfYcLFE

display.jpg?VersionId=mbt1Kv2U738XwNcJvcp

Deviate

Where To Buy
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Deviate Kurgan Elite E-Bike

Model Year

2026

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	MD	LG	XL
Top Tube Length	595mm	622mm	653mm
Head Tube Angle	63.5°	63.5°	63.5°
Head Tube Length	99.6mm	110.7mm	121.8mm
Seat Tube Angle	78°	78°	78°
Seat Tube Length	410mm	430mm	450mm
Bottom Bracket Height	340mm (8/27mm drop)	340mm (8/27mm drop)	340mm (8/27mm drop)
Chainstay Length	441mm	445mm	450mm
Wheelbase	1246.2mm	1276.1mm	1309.9mm
Standover	658.0mm	674.0mm	681.5mm
Reach	455/460/465mm	475/480/485mm	500/505/510mm
Stack	635mm	645mm	655mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Reach adjustable (-5/0/+5mm) via included headset cups • All specifications listed are with 180mm travel fork with 44mm offset

Sizes Additional Info

• Mixed ("Mullet") wheels: 29" front, 27.5" rear

• Reach adjustable (-5/0/+5mm) via included headset cups

• All specifications listed are with 180mm travel fork with 44mm offset

View Full Geometry

Size	MD	LG	XL
Top Tube Length	595mm	622mm	653mm
Head Tube Angle	63.5°	63.5°	63.5°
Head Tube Length	99.6mm	110.7mm	121.8mm
Seat Tube Angle	78°	78°	78°
Seat Tube Length	410mm	430mm	450mm
Bottom Bracket Height	340mm (8/27mm drop)	340mm (8/27mm drop)	340mm (8/27mm drop)
Chainstay Length	441mm	445mm	450mm
Wheelbase	1246.2mm	1276.1mm	1309.9mm
Standover	658.0mm	674.0mm	681.5mm
Reach	455/460/465mm	475/480/485mm	500/505/510mm
Stack	635mm	645mm	655mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear • Reach adjustable (-5/0/+5mm) via included headset cups • All specifications listed are with 180mm travel fork with 44mm offset

Wheel Size

Mixed Wheel Size

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

Bosch Performance Line CX, 100 Nm max torque

Battery

Bosch PowerTube, integrated, removable
Option: Bosch PowerMore 250 Wh range extender

Battery Capacity

800 Wh

Display/Remote

Bosch Kiox 400C, top tube integrated; Bosch Mini Remote

Modes

Turbo, eMTB, Tour+, Eco, Walk Assist

Max Speed with Assist

USA/Canada/New Zealand: 20 mph (32.2 km/h)

Other: 15.5 mph (25 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Carbon front and rear triangles, lower down tube/motor protection, bonded rubber chainstay and seatstay protection

Rear Travel

165mm

Rear Shock

FOX DHX2 Coil Performance Elite, custom tune

Fork

FOX FLOAT 38 Performance Elite, GRIP X2 damper, 44mm offset

Fork Travel

180mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Cane Creek 40, -5/0/+5mm reach adjust cups included

Handlebar

OneUp Alloy, 800mm width, 35mm clamp diameter

Stem

OneUp, 42mm length, 35mm bar clamp

Grips

Peaty’s Monarch Knurl

Brakes

Shimano Deore XT M8220, 4-piston
Rotors: Shimano, 220mm

Brake Levers

Shimano Deore XT M8200

Drivetrain

Shifters

Shimano Deore M6100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore M6100, 12-speed

Chainguide

High-pivot idler pulley with integrated upper slider

Cranks

e*thirteen Helix Core e*spec Alloy, 155mm length

Chainrings

e*thirteen Helix Core e*spec, 36 tooth

Pedals

None

Chain

Shimano Deore M6100, 12-speed

Cassette

Shimano Deore M6100, 12-speed, 10-51 tooth

Rims

DT Swiss H 1900 SPLINE Alloy

Hubs

DT Swiss wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with MICRO SPLINE driver

Spokes

DT Swiss wheelset

Tires

Continental Kryptotal, Downhill casing, SuperSoft compound, 2.4"

Saddle

SDG Bel-Air V3 MAX Triad

Seatpost

SDG Tellis V2 dropper

Seatpost Diameter

34.9mm

Seatpost Clamp

Single bolt, 38.5mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

Two inside front triangle

Colors

Shiel Teal

Warranty

Lifetime frame and pivot bearings; 2 years paintwork

Weight

Miscellaneous

• Virtual High Pivot Point dual-link rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Internal cable routing
• European price: 9749 EUR
• UK price: 7999 GBP

Price

$11,035.00
