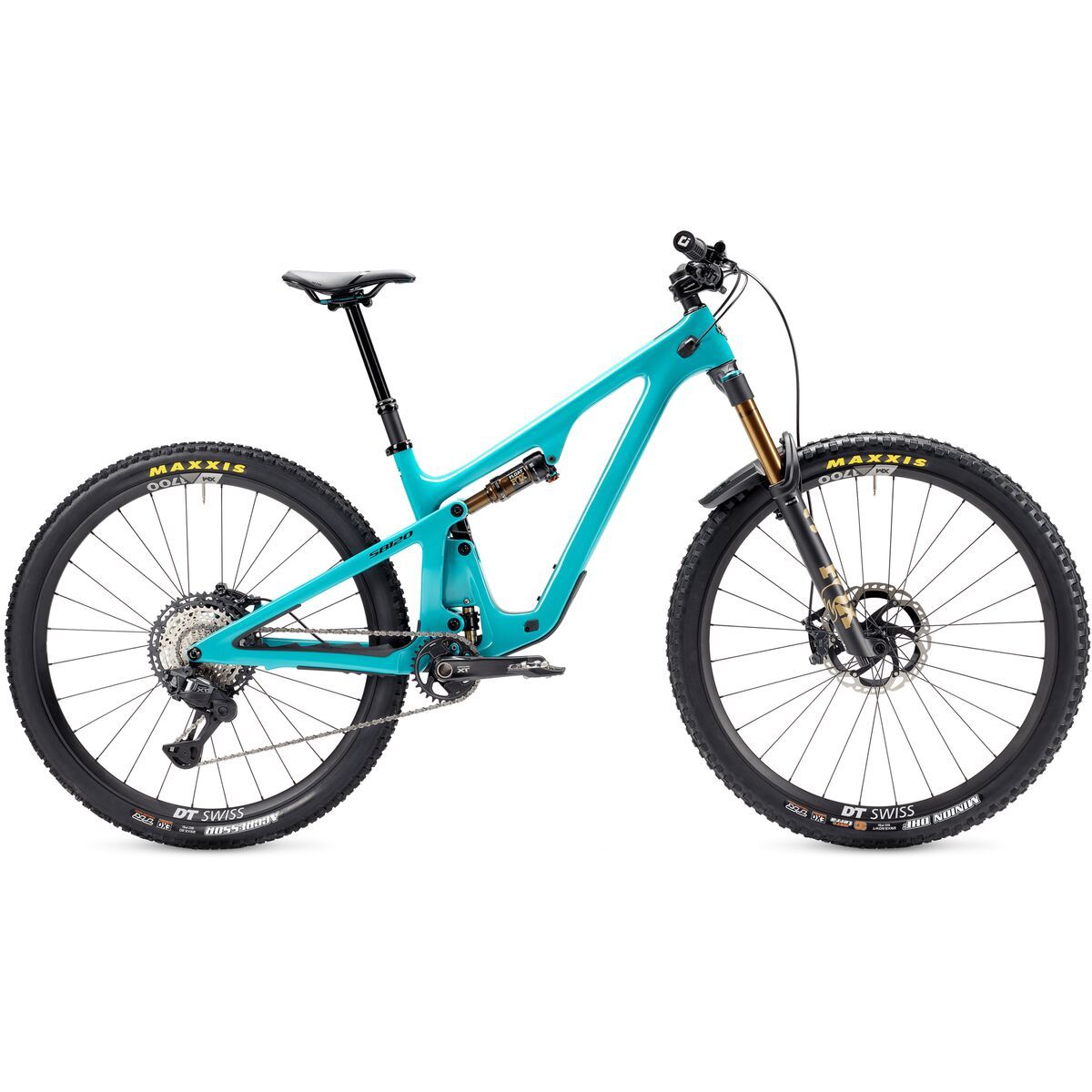

2023 Yeti SB120 T3 Bike

Related:
Where To Buy
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
$9,300.00
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
$7,300.00

Specifications

Product
Yeti SB120 T3 Bike
Model Year
2023
Riding Type
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
XS
SM
MD
LG
XL
XXL
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
TURQ Series carbon fiber front and rear triangles; molded chainstay, seatstay, and down tube protection
Rear Travel
120mm
Rear Shock
FOX FLOAT DPS Factory, Kashima coating, custom tune, 190mm length x 45mm stroke
Fork
FOX FLOAT 34 Factory, GRIP2 damper, Kashima coating, 44mm offset
Fork Travel
130mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Cane Creek 40 Integrated, 41mm upper, 52mm lower
Handlebar
Yeti Carbon, 780mm width, 35mm clamp diameter
Stem
Burgtec Enduro MK3, 50mm length, 35mm bar clamp
Grips
ODI Elite Pro
Brakes
SRAM G2 RSC, 4-piston, SRAM CenterLine 180mm rotors
Brake Levers
SRAM G2 RSC
Drivetrain
1x
Shifters
SRAM Eagle AXS Controller, 12-speed, electronic wireless
Front Derailleur
None
Rear Derailleur
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
ISCG Tabs
2-bolt ISCG05
Chainguide
None
Cranks
SRAM X1 Eagle Carbon DUB, 170mm length
Chainrings
SRAM X1 Eagle, 30 tooth
Bottom Bracket
SRAM DUB, 73mm English/BSA threaded
Pedals
None
Chain
SRAM GX Eagle, 12-speed
Cassette
SRAM X01 Eagle XG-1295, 12-speed, 10-52 tooth
Rims
DT Swiss XM1700, 30mm inner width
Option: DT Swiss EXC 1501 Carbon
Hubs
DT Swiss XM1700 wheelset, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) with XD driver
Spokes
DT Swiss XM1700 wheelset
Tires
Front: Maxxis Minion DHF, EXO casing, 29" x 2.5"
Rear: Maxxis Aggressor, EXO casing, 29" x 2.3"
Saddle
WTB Silverado Custom
Seatpost
FOX Transfer dropper
Drop: 150mm (XS/SM), 175mm (MD), 200mm (LG-XXL)
Seatpost Diameter
31.6
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
One inside front triangle
Colors
Turquoise, Dust, Loch, Raw Carbon
Warranty
Lifetime frame and Switch Infinity Link, 1 year paint and finish
Weight
29 lb 6.4 oz (13,336 g)
Miscellaneous
• Switch Infinity V2 rear suspension design
• Internally tunneled cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Frame weight: 6.66lbs
Price
Standard: $9,600.00
With DT Swiss EXC 1501 Carbon wheelset: $10,600.00
