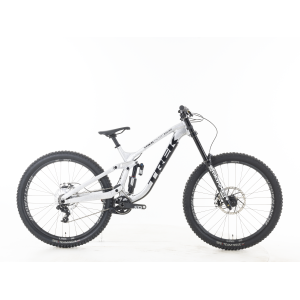

2023 Trek Session 9 X01 Bike
(discontinued)

Discontinued
session 01
session 01
session 02
session 03
session 04
session 05.jpg?VersionId=B3YIPBO81fV.F.G2
session 01 session 02 session 03 session 04.jpg?VersionId=f7 LBsYwVWL3Xd session 05.jpg?VersionId=iO giPskYNMP6sCeK
Related:
Trek
Where To Buy
$70 standard shipping on bikes (continental U.S. only).
$70 standard shipping on bikes (continental U.S. only).
$8,249.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.

Specifications

Product
Trek Session 9 X01 Bike
Model Year
2023
Intended Use
Downhill
Freeride / Bike Park
Rider
Unisex
Sizes and Geometry
R1 (High, Low)
R2 (High, Low)
R3 (High, Low)
View Full Geometry
Sizes Additional Info
• Geometry adjustable via Mino Link flip chip in rear rocker link pivot.
• All specifications listed are with 200mm travel fork with 46mm offset for a trail value of 131mm (High) or 136mm (Low) in all sizes.
View Full Geometry
Wheel Size
29"
Frame Material
Aluminum
Frame Material Details
Alpha Platinum Aluminum, magnesium rocker link; molded chainstay, lower down tube, and shuttle guard protection
Rear Travel
200mm
Rear Shock
RockShox Super Deluxe Ultimate DH RC2, 250mm length x 72.5mm stroke
Fork
RockShox Boxxer Ultimate, DebonAir spring, Charger 2.1 RC2 damper, 46mm offset, Maxle Stealth thru-axle
Fork Travel
200mm
Head Tube Diameter

Headset
FSA Orbit, sealed cartridge bearings, includes geometry adjust angled cups
Handlebar
Bontrager Line Pro, OCLV Carbon, 820mm width, 27.5mm rise, 35mm clamp diameter
Stem
Bontrager Line Pro, direct mount, 50mm length, 35mm bar clamp
Grips
Bontrager XR Trail Elite, nylon lock-on
Brakes
SRAM Code RSC, 4-piston, SRAM HS2 6-bolt rotors (220mm front, 200mm rear)
Brake Levers
SRAM Code RSC
Drivetrain
1x
Shifters
SRAM X01 DH, 7-speed
Front Derailleur
None
Rear Derailleur
SRAM X01 DH, 7-speed, medium cage
ISCG Tabs
ISCG05 2-bolt
Chainguide
Integrated high-pivot upper idler pulley/guide, with bashguard and lower pulley/guide
Cranks
SRAM X01 DH DUB, 165mm length
Chainrings
SRAM X01 DH, 34 tooth, alloy
Bottom Bracket
SRAM DUB, 83mm English/BSA threaded
Pedals
Wellgo MG-1 platform, magnesium body, CrMo axle, replaceable pins
Chain
SRAM PC-1110, 11-speed
Cassette
SRAM PG-720, 7-speed, 11-25 tooth
Rims
Bontrager Line DH 30, tubeless ready
Hubs
Bontrager Line DH wheelset, 20mm x 110mm (Boost) front, 12mm x 157mm rear with Rapid Drive 108 freehub and HG driver
Spokes
Bontrager Line DH wheelset
Tires
Bontrager G5 Team Issue, wire bead, 2-ply 60 TPI, 29" x 2.5"
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Bontrager Rhythm Elite, zero offset, 330mm length
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
12mm x 157mm
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
None
Colors
Team
Warranty
Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals
Weight
39 lb 0.3 oz (17,700 g)
Miscellaneous
  • High main pivot rear suspension design
  • ABP (Active Braking Pivot)
  • Geometry adjustable via Mino Link flip chip in rear rocker link pivot
  • Suspension progressivity adjustable (20% or 25%) via flip chip at lower shock mount
  • Compatible with mixed ("Mullet") setups: 29" front wheel, 27.5" rear wheel
  • Internal or external cable routing
  • Includes Bontrager TLR tubeless rim strips
  • Weight given for size R2 set up tubeless
    • Price
    $7,199.99
