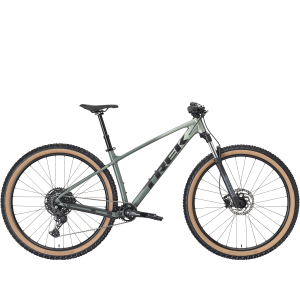

2026 Trek Marlin 6 Gen 3 Bike

6 lichen 01.jpg?VersionId=
6 lichen 01
6 lichen 02.jpg?VersionId=LrC
6 lavender 01
6 lavender 02.jpg?VersionId=NFjgeiCl0C DJ79gSlL
6 lava 01.jpg?VersionId=VerzEqsTm2g31oFZtv5OdxuLBpx
6 lava 02.jpg?VersionId=rEoYkwEceK
6 lichen 01.jpg?VersionId= 6 lichen 02 6 lavender 01.jpg?VersionId=35RN09vArqBKGfTD7 6 lavender 02 6 lava 01 6 lava 02
Related:
Trek
Where To Buy
$70 standard shipping on bikes (continental U.S. only).
$70 standard shipping on bikes (continental U.S. only).
$629.99

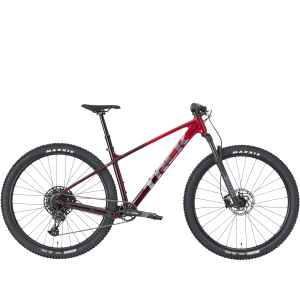

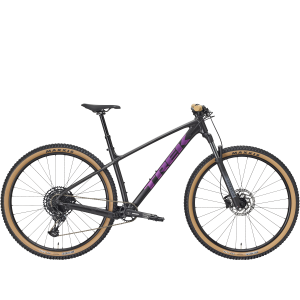

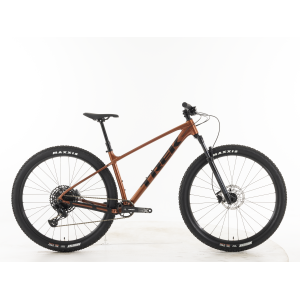

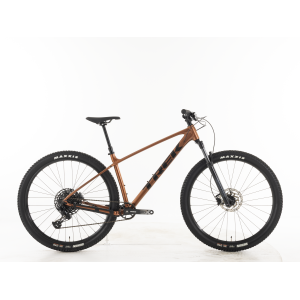

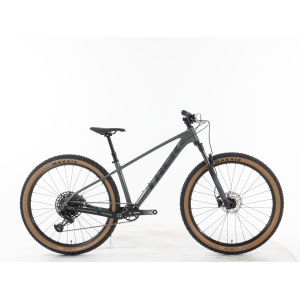

Marlin 7 Gen 3
$1,399.99
Marlin+ 8
$3,999.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.

Specifications

Product
Trek Marlin 6 Gen 3 Bike
Model Year
2026
Intended Use
Cross Country
Rider
Unisex
Sizes and Geometry
XS
SM
MD
ML
LG
XL
View Full Geometry
Sizes Additional Info
• XS/SM have 27.5" wheels; MD-XL have 29" wheels


• All specifications listed are with 100mm travel fork with 42mm offset
View Full Geometry
Wheel Size
27.5" (650b)
29"
Frame Material
Aluminum
Frame Material Details
Alpha Silver Aluminum, molded chainstay protection
Rear Travel
Hardtail
Rear Shock
None
Fork
RockShox Judy Silver, coil spring, TurnKey lockout, 30mm stanchions, 42mm (XS/SM) or 46mm (MD-XL) offset
Fork Travel
100mm
Head Tube Diameter
Straight, 1.125"
Headset
Semi-integrated
Handlebar
Bontrager, alloy, 31.8mm clamp diameter
XS: 690mm width, 5mm rise; SM: 720mm width, 15mm rise; MD-XL: 750mm width, 15mm rise
Stem
Bontrager Comp, 7° rise, 31.8mm bar clamp
Length: 35mm (XS/SM), 50mm (MD-LG), 60mm (XL)
Grips
Trek Line Comp, nylon lock-on
Brakes
Shimano Deore MT200, 2-piston
Rotors: Shimano RT26, 6-bolt, 160mm (XS/SM) or 180mm (MD-XL) front, 160mm rear (all sizes)
Brake Levers
Shimano Deore MT200
Drivetrain
1x
Shifters
Shimano CUES U6000, 10-speed
Front Derailleur
None
Rear Derailleur
Shimano CUES U6000, 10-speed, GS cage
ISCG Tabs
None
Chainguide
None
Cranks
Shimano U4000 Alloy
Length: 170mm (XS-ML), 175mm (LG/XL)
Chainrings
Shimano U4000, 30 tooth
Bottom Bracket
Shimano, 73mm English/BSA threaded
Pedals
VP Components VP-536 nylon platform
Chain
Shimano LG500, 10-speed
Cassette
Shimano CUES LG300, LINKGLIDE, 10-speed, 11-48 tooth
Rims
Bontrager Kovee, double-wall alloy, 23mm width, 28 hole front, 28 (XS/SM) or 32 (MD-XL) hole rear, tubeless ready (Bontrager TLR rims strips included)
Hubs
Formula alloy, DC-20 5mm x 100mm quick release front, DC-22 5mm x 135mm quick release rear with HG driver
Spokes

Tires
Maxxis Rekon, EXO casing, 60 TPI, TR, 2.35"
Saddle
Bontrager Verse Short, stainless steel rails
Seatpost
TranzX JD-YSI34 dropper
Drop: 100mm (XS/SM), 125mm (MD), 150mm (ML-XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Quick release
Rear Dropout / Hub Dimensions
5mm x 135mm ThruSkew quick release
Max. Tire Size
2.4"
Bottle Cage Mounts
Two inside front triangle
Colors
Matte Lichen/Keswick Green Fade, Gloss Lavender Haze, Lava
Warranty
Lifetime frame, 2 years Trek/Bontrager parts and paint/decals
Weight
33 lb 1.1 oz (15000 g)
Miscellaneous
• XS/SM have 27.5" wheels; MD-XL have 29" wheels
• Internal cable routing
• Rack and kickstand mounts
• Weight listed for size MD
Price
$999.99
