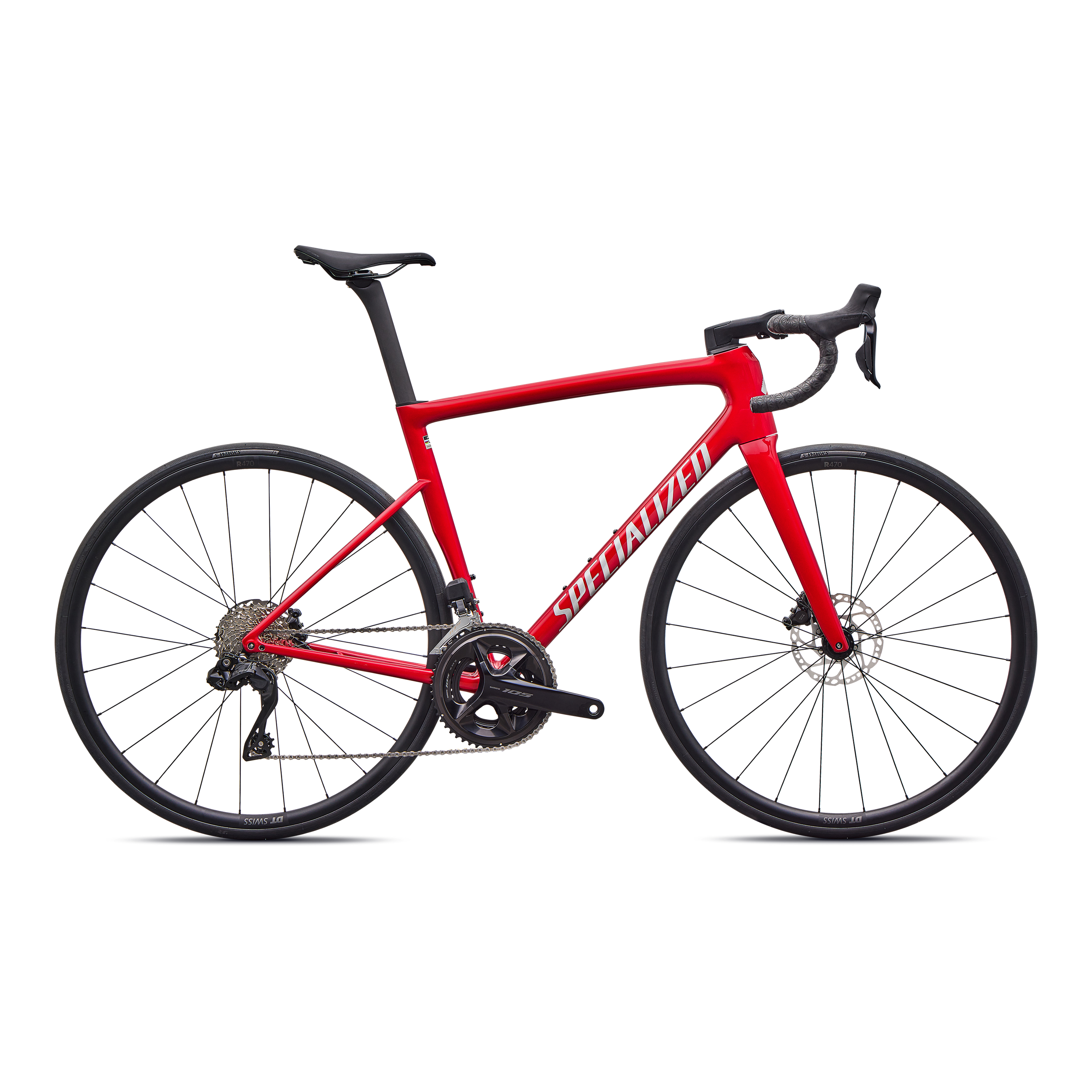

Tarmac SL8 Comp - Shimano 105 Di2	Tarmac SL8 Comp - Shimano 105 Di2 $0.00	Buy
S-Works Tarmac SL8 - Shimano Dura-Ace Di2	S-Works Tarmac SL8 - Shimano Dura-Ace Di2 $0.00	Buy
Tarmac SL8 Pro - Shimano Ultegra Di2	Tarmac SL8 Pro - Shimano Ultegra Di2 $0.00	Buy
Tarmac SL8 Pro - SRAM Force AXS	Tarmac SL8 Pro - SRAM Force AXS $0.00	Buy
Tarmac SL8 Expert - SRAM Force AXS	Tarmac SL8 Expert - SRAM Force AXS $0.00	Buy
Tarmac SL8 Comp - SRAM Rival AXS	Tarmac SL8 Comp - SRAM Rival AXS $0.00	Buy
S-Works Tarmac SL8 - SRAM RED AXS	S-Works Tarmac SL8 - SRAM RED AXS $0.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Specialized Demo Race Bike

Model Year

2023

Intended Use

Downhill

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	S2	S3	S4
Head Tube Angle	62.8°	62.8°	62.8°
Head Tube Length	105mm	105mm	105mm
Seat Tube Angle	78.2°	76.8°	76.8°
Seat Tube Length	394mm	420mm	420mm
Bottom Bracket Height	350mm (25mm drop)	350mm (25mm drop)	350mm (25mm drop)
Chainstay Length	443mm	443mm	443mm
Wheelbase	1244mm	1264mm	1284mm
Reach	426mm	446mm	466mm
Stack	632mm	632mm	632mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear. • Geometry adjustable via flip chip in chainstay's Horst pivot; see Specialized website for alternate geometry values. • All specifications listed are with 200mm travel fork with 56mm offset, for a trail value of 130mm (all sizes).

Sizes Additional Info

• Mixed ("Mullet") wheels: 29" front, 27.5" rear.

• Geometry adjustable via flip chip in chainstay's Horst pivot; see Specialized website for alternate geometry values.

• All specifications listed are with 200mm travel fork with 56mm offset, for a trail value of 130mm (all sizes).

View Full Geometry

Size	S2	S3	S4
Head Tube Angle	62.8°	62.8°	62.8°
Head Tube Length	105mm	105mm	105mm
Seat Tube Angle	78.2°	76.8°	76.8°
Seat Tube Length	394mm	420mm	420mm
Bottom Bracket Height	350mm (25mm drop)	350mm (25mm drop)	350mm (25mm drop)
Chainstay Length	443mm	443mm	443mm
Wheelbase	1244mm	1264mm	1284mm
Reach	426mm	446mm	466mm
Stack	632mm	632mm	632mm
Additional Info	• Mixed ("Mullet") wheels: 29" front, 27.5" rear. • Geometry adjustable via flip chip in chainstay's Horst pivot; see Specialized website for alternate geometry values. • All specifications listed are with 200mm travel fork with 56mm offset, for a trail value of 130mm (all sizes).

Wheel Size

Mixed Wheel Size

Frame Material

Aluminum

Frame Material Details

M5 alloy; molded chainstay, seatstay, and down tube protection

Rear Travel

200mm

Rear Shock

Öhlins TTX 22 M Coil, high/low-speed compression adjust, rebound adjust, trunnion mount, 225mm length x 75mm stroke

Fork

Öhlins DH38 M.1, TTX Twin Tube damper, high/low-speed compression adjust, low-speed rebound adjust, 58mm offset

Fork Travel

200mm

Head Tube Diameter

Straight, 1.5"

Headset

Handlebar

Renthal Fatbar, 800mm width, 30mm rise, 7° backsweep, 5° upsweep, 35mm clamp diameter

Stem

Renthal Integra, direct mount, 45mm length, 35mm bar clamp

Grips

Deity Lockjaw

Brakes

Magura MT7, 4-piston, Magura 203mm 6-bolt rotors

Brake Levers

Magura MT7

Drivetrain

Shifters

SRAM X01 DH, 7-speed

Front Derailleur

None

Rear Derailleur

SRAM X01 DH, 7-speed

ISCG Tabs

ISCG05

Chainguide

MRP upper and lower sliders with bashguard

Cranks

SRAM X01 DH Carbon DUB, 165mm length

Chainrings

SRAM X01 DH, direct mount, 34 tooth

Bottom Bracket

SRAM DUB, 83mm English/BSA threaded

Pedals

None

Chain

SRAM PC-1130, 11-speed, with Powerlink

Cassette

SRAM X01 DH, 7-speed, 10-24 tooth

Rims

Roval Alloy DH, 28mm inner width, 28 hole front, 32 hole rear, tubeless ready

Hubs

Front: alloy, sealed cartridge bearings, 20mm x 110mm (Boost)
Rear: DT Swiss 350, sealed cartridge bearings, high/low flange, 12mm x 148mm (Boost), XD driver

Spokes

DT Swiss Competition, stainless steel, 14g

Tires

Specialized Butcher, GRID GRAVITY casing, GRIPTON T9 compound, 2Bliss Ready, 2.3"

Saddle

Specialized Body Geometry Henge DH, hollow titanium rails, 130mm width

Seatpost

Thomson, alloy, straight, 12° clamp, 367mm length

Seatpost Diameter

30.9mm

Seatpost Clamp

Specialized, alloy, single bolt, 34.9mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

None

Colors

Gloss Midnight Shadow/Midnight Shadow Metallic Fade/Violet Ghost Pearl, Satin Smoke/Cool Grey/Birch Over Dune White/Obsisian

Warranty

Lifetime frame and Roval wheels, 2 years Specialized components

Weight

38 lb 7.9 oz (17460 g)

Miscellaneous

• Horst Link rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Geometry adjustable via flip chip in chainstay's Horst pivot; compatible with 29" rear wheels
• Full internal cable routing; option for full externally routed rear brake line

Price

$7,100.00

More Info

Specialized website
