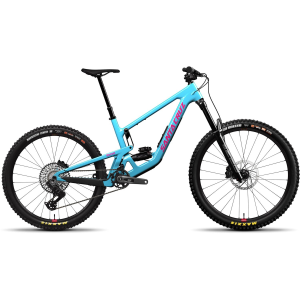

2027 Santa Cruz Nomad GX AXS Carbon CC Bike
| Where To Buy | |||
|---|---|---|---|
|
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. |
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. $7,299.00
|
|
|
|||
|
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply. |
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply. $7,299.00
|
|
|
|||
|
|||
|
|||
| Where To Buy | |||
|---|---|---|---|
|
|
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. |
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply. $7,299.00
|
|
|
|
|||
|
|
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply. |
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply. $7,299.00
|
|
|
|
|||
|
|
|||
|
|
|||
Bikes
Specifications
Sizes and Geometry
• Geometry adjustable via two-position flip chip in lower link shock mount
• Bottom bracket drops: 26.5mm front, 8.0mm rear (Hi); 30.0mm front, 11.5mm rear (Lo)
• All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
• Geometry adjustable via two-position flip chip in lower link shock mount
• Bottom bracket drops: 26.5mm front, 8.0mm rear (Hi); 30.0mm front, 11.5mm rear (Lo)
• All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
Sizes and Geometry
• Geometry adjustable via two-position flip chip in lower link shock mount
• Bottom bracket drops: 26.5mm front, 8.0mm rear (Hi); 30.0mm front, 11.5mm rear (Lo)
• All specifications listed are with 170mm travel fork with 588mm axle-to-crown length and 44mm offset
SM: 760mm width, 20mm rise; MD-XXL: 800mm width, 35mm rise
Rotors: SRAM HS2, 6-bolt, 200mm
Length: 165mm (SM), 170mm (MD-XXL)
Rear: Reserve 30 HD AL 6069, 30mm width, 32 hole
Front: Maxxis Minion DHR II, 3C MaxxTerra compound, Double Down (DD) casing, 27.5" x 2.4"
Drop: 150mm (SM), 180mm (MD), 210mm (LG/XL), 240mm (XXL)
• Lower Link VPP (Virtual Pivot Point) rear suspension design
• Mixed ("Mullet") wheels: 29" front, 27.5" rear
• Internal cable routing with fully-guided housing tunnels
• Glovebox V2 internal frame storage in down tube, with improved shape for ease of access, updated bezel for improved frame contact, and widened latch mechanism for better engagement; includes fitted Tool Wallet and Tube Purse bags
• SRAM UDH (Universal Derailleur Hanger)
• Includes Reserve Fillmore tubeless valves
• Photos may show alternate builds
• Canadian price: 9499 CAD
Geometry adjustable via two-position flip chip in lower link shock mount:
• In Low position, shock rate becomes more progressive, particularly at the end of the stroke, with extra bottom-out resistance
• In High position, the bike rides a little higher in its travel and supplies the rider with more mid-stroke support
