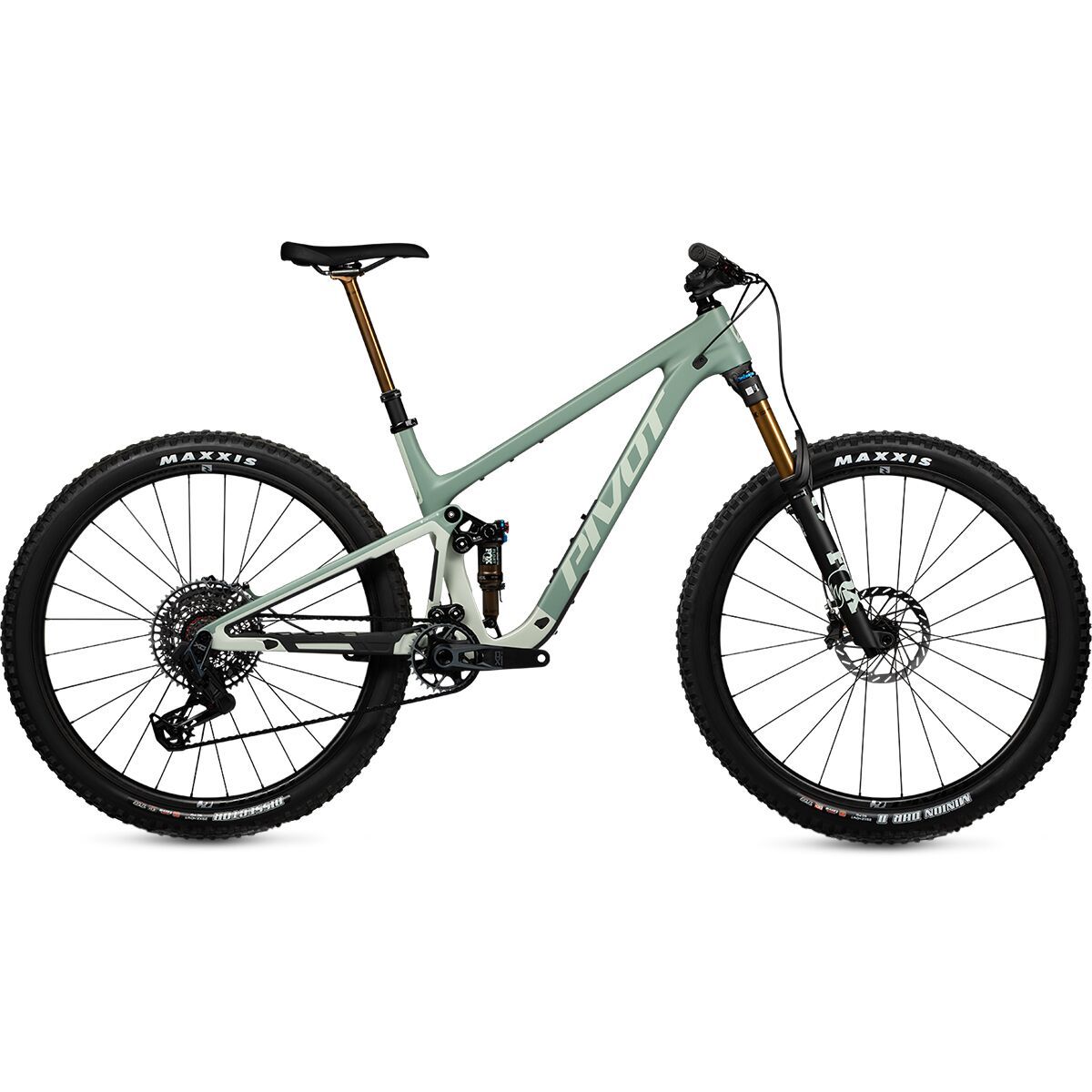

Pivot Trailcat SL Pro XT Di2 Mountain Bike Green Meadow Mist, MD	Pivot Trailcat SL Pro XT Di2 Mountain Bike Green Meadow Mist, MD $8,899.00	Buy
Pivot Trailcat SL Pro XT Di2 Carbon Wheel Mountain Bike Dr. Purple, LG	Pivot Trailcat SL Pro XT Di2 Carbon Wheel Mountain Bike Dr. Purple, LG $10,299.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Pivot Trailcat SL Pro XT Di2 Bike

Model Year

2025

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

XS (Low, High)

SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	569mm, 567mm	596mm, 595mm	629mm, 627mm	646mm, 645mm	660mm, 658mm
Head Tube Angle	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.5°, 76.8°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)
Chainstay Length	431mm, 429mm	431mm, 429mm	431mm, 429mm	432mm, 430mm	434mm, 432mm
Wheelbase	1143mm, 1142mm	1172mm, 1171mm	1207mm, 1206mm	1226mm, 1225mm	1253mm, 1252mm
Standover	653mm, 657mm	674mm, 678mm	678mm, 682mm	692mm, 696mm	707mm, 712mm
Reach	410mm, 415mm	435mm, 440mm	465mm, 470mm	480mm, 485mm	500mm, 505mm
Stack	604mm, 601mm	614mm, 610mm	625mm, 621mm	629mm, 625mm	641mm, 637mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 140mm travel fork with 44mm offset

Sizes Additional Info

• Geometry adjustable via two-position flip chip in upper linkage
• All specifications listed are with 140mm travel fork with 44mm offset

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	569mm, 567mm	596mm, 595mm	629mm, 627mm	646mm, 645mm	660mm, 658mm
Head Tube Angle	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.5°, 76.8°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)
Chainstay Length	431mm, 429mm	431mm, 429mm	431mm, 429mm	432mm, 430mm	434mm, 432mm
Wheelbase	1143mm, 1142mm	1172mm, 1171mm	1207mm, 1206mm	1226mm, 1225mm	1253mm, 1252mm
Standover	653mm, 657mm	674mm, 678mm	678mm, 682mm	692mm, 696mm	707mm, 712mm
Reach	410mm, 415mm	435mm, 440mm	465mm, 470mm	480mm, 485mm	500mm, 505mm
Stack	604mm, 601mm	614mm, 610mm	625mm, 621mm	629mm, 625mm	641mm, 637mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 140mm travel fork with 44mm offset

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles; molded seatstay, chainstay, and lower down tube protection

Rear Travel

120mm

Rear Shock

FOX FLOAT Factory, Kashima coating, trunnion mount, 165mm length x 45mm stroke

Fork

FOX FLOAT 34 Factory, GRIP X2 damper, Kashima coating, 44mm offset

Fork Travel

140mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Pivot Precision, sealed cartridge bearings

Handlebar

Phoenix Team Low Rise Carbon
Width: 780mm (XS-LG), 800mm (XL)

Stem

Phoenix Team Enduro/Trail
Length: 35mm (XS), 45mm (SM), 55mm (MD-XL)

Grips

Phoenix Factory, lock-on

Brakes

Shimano Deore XT M8220, 4-piston
Rotors: Shimano Deore XT, CENTER LOCK, 180mm

Brake Levers

Shimano Deore XT

Drivetrain

Shifters

Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano Deore XT M8250 Di2, 12-speed, electronic wireless, SGS cage

ISCG Tabs

ISCG05

Chainguide

None

Cranks

Race Face Aeffect R Alloy

Chainrings

Race Face Aeffect R, 32 tooth

Bottom Bracket

92mm PressFit

Pedals

None

Chain

Shimano Deore XT M8100, 12-speed

Cassette

Shimano Deore XT M8200, 12-speed, 10-51 tooth

Rims

DT Swiss XM 1700 Alloy, 30mm width
Option: Reynolds Blacklabel Carbon, 309 30mm-width front, 289 28mm-width rear

Hubs

DT Swiss 350, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with 36-tooth Star Ratchet freehub and MICRO SPLINE driver
Option (with Reynolds Blacklabel Carbon rims): Industry Nine Hydra

Spokes

DT Swiss wheelset

Tires

Front: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT

Saddle

WTB Volt Pro Phoenix, medium width

Seatpost

FOX Transfer Factory dropper, adjustable travel, Kashima coating
Drop: 95-120mm (XS), 125-150mm (SM), 155-180mm (MD), 185-210mm (LG/XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

29" x 2.6" or 27.5" x 2.8"

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

Green Meadow Mist, Dr Purple

Warranty

Lifetime frame

Weight

Miscellaneous

• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with 27.5+ wheels or mixed ("Mullet") setups (29" front, 27.5" rear)
• Toolshed in-frame downtube storage system; includes two custom storage bags
• Internal cable routing with Dual Cable Port design
• SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 5.3 lbs (2.43 kg) without shock

Price

With DT Swiss XM 1700/350 alloy wheelset: $8,499.00

With Reynolds Blacklabel/Industry Nine Hydra carbon wheelset: $9,849.00
