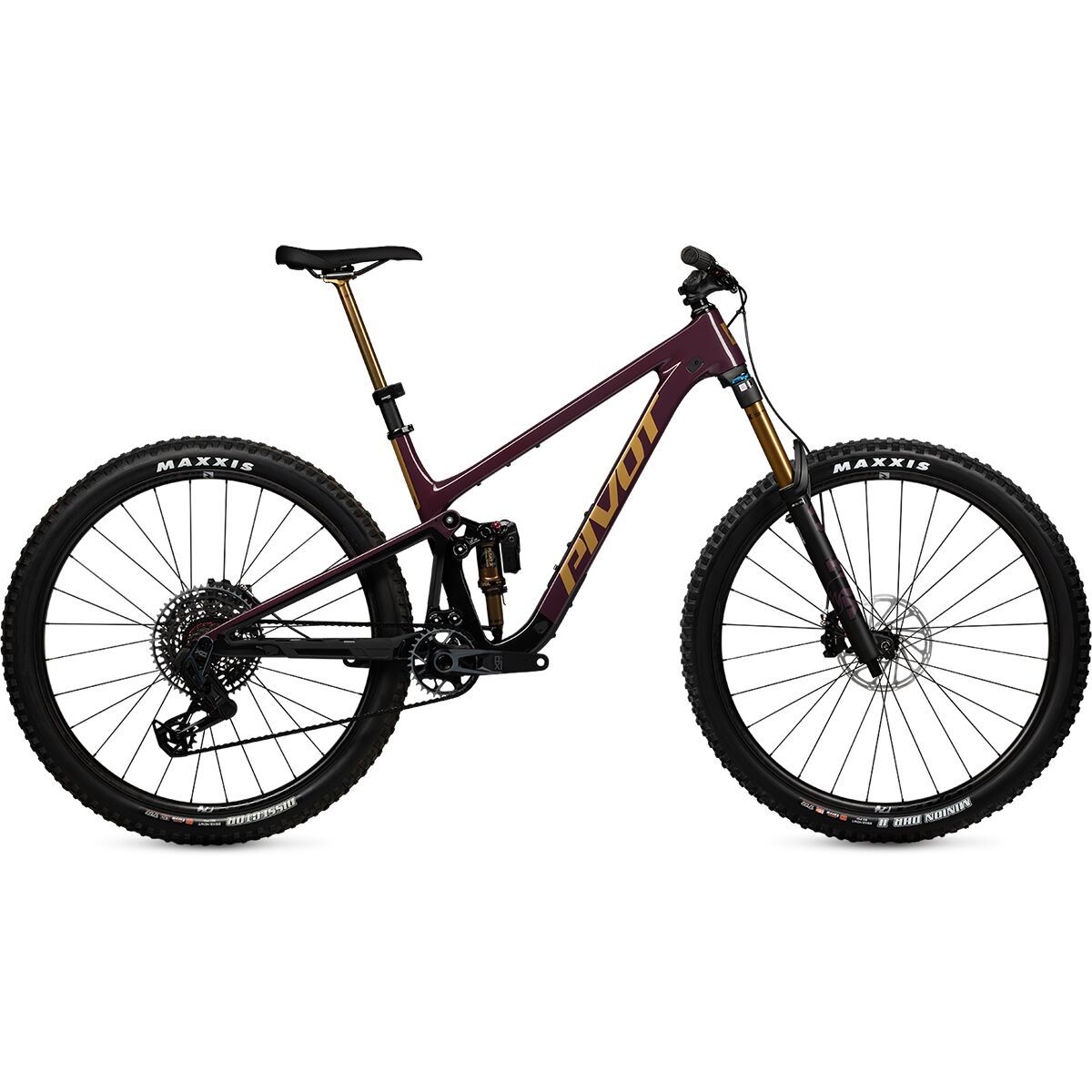

Pivot Trailcat LT Ride Eagle 70/90 Mountain Bike Dr. Purple, MD	Pivot Trailcat LT Ride Eagle 70/90 Mountain Bike Dr. Purple, MD $6,499.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Pivot Trailcat SL Ride Eagle 70/90 Transmission Bike

Model Year

2025

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

XS (Low, High)

SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	569mm, 567mm	596mm, 595mm	629mm, 627mm	646mm, 645mm	660mm, 658mm
Head Tube Angle	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.5°, 76.8°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)
Chainstay Length	431mm, 429mm	431mm, 429mm	431mm, 429mm	432mm, 430mm	434mm, 432mm
Wheelbase	1143mm, 1142mm	1172mm, 1171mm	1207mm, 1206mm	1226mm, 1225mm	1253mm, 1252mm
Standover	653mm, 657mm	674mm, 678mm	678mm, 682mm	692mm, 696mm	707mm, 712mm
Reach	410mm, 415mm	435mm, 440mm	465mm, 470mm	480mm, 485mm	500mm, 505mm
Stack	604mm, 601mm	614mm, 610mm	625mm, 621mm	629mm, 625mm	641mm, 637mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 140mm travel fork with 44mm offset

Sizes Additional Info

• Geometry adjustable via two-position flip chip in upper linkage

• All specifications listed are with 140mm travel fork with 44mm offset

View Full Geometry

Size	XS (Low, High)	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	569mm, 567mm	596mm, 595mm	629mm, 627mm	646mm, 645mm	660mm, 658mm
Head Tube Angle	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°	65.8°, 66.3°
Head Tube Length	85mm	95mm	107mm	112mm	125mm
Seat Tube Angle	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.0°, 76.4°	76.5°, 76.8°
Seat Tube Length	343mm	368mm	394mm	432mm	470mm
Bottom Bracket Height	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 344mm (30mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)	338mm (36mm drop), 345mm (29mm drop)
Chainstay Length	431mm, 429mm	431mm, 429mm	431mm, 429mm	432mm, 430mm	434mm, 432mm
Wheelbase	1143mm, 1142mm	1172mm, 1171mm	1207mm, 1206mm	1226mm, 1225mm	1253mm, 1252mm
Standover	653mm, 657mm	674mm, 678mm	678mm, 682mm	692mm, 696mm	707mm, 712mm
Reach	410mm, 415mm	435mm, 440mm	465mm, 470mm	480mm, 485mm	500mm, 505mm
Stack	604mm, 601mm	614mm, 610mm	625mm, 621mm	629mm, 625mm	641mm, 637mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • All specifications listed are with 140mm travel fork with 44mm offset

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles; molded seatstay, chainstay, and lower down tube protection

Rear Travel

120mm

Rear Shock

FOX FLOAT Performance, trunnion mount, 165mm length x 45mm stroke

Fork

FOX FLOAT 34 Performance, GRIP damper, 44mm offset

Fork Travel

140mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Pivot Precision, sealed cartridge bearings

Handlebar

Phoenix Race Low Rise Aluminum
Width: 780mm (XS-LG), 800mm (XL)

Stem

Phoenix Team Enduro/Trail
Length: 35mm (XS), 45mm (SM), 55mm (MD-XL)

Grips

Phoenix Factory, lock-on

Brakes

SRAM DB8, 4-piston
Rotors: SRAM CenterLine, 6-bolt, 180mm

Brake Levers

SRAM DB8 Stealth, tooled reach adjust

Drivetrain

Shifters

SRAM Eagle 90 Transmission, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM Eagle 90 Transmission, 12-speed

ISCG Tabs

ISCG05

Chainguide

None

Cranks

SRAM Eagle 70 Transmission Alloy DUB

Chainrings

SRAM Eagle 70 Transmission, 32 tooth

Bottom Bracket

SRAM DUB, 92mm PressFit

Pedals

None

Chain

SRAM Eagle 70 Transmission Flattop, 12-speed

Cassette

SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth

Rims

DT Swiss M 1900 Alloy, 30mm width

Hubs

DT Swiss 370, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with HG driver

Spokes

DT Swiss wheelset

Tires

Front: Maxxis Minion DHR II, 3C MaxxTerra compound, EXO+ casing, TR, 29" x 2.4" WT
Rear: Maxxis Dissector, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4" WT

Saddle

WTB Volt Race Phoenix, medium width

Seatpost

TranzX YSP23GLS dropper

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

29" x 2.6" or 27.5" x 2.8"

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

Green Meadow Mist, Dr Purple

Warranty

Lifetime frame

Weight

Miscellaneous

• dw-link rear suspension design
• Geometry adjustable via two-position flip chip in upper linkage
• Compatible with 27.5+ wheels or mixed ("Mullet") setups (29" front, 27.5" rear)
• Toolshed in-frame downtube storage system; includes two custom storage bags
• Internal cable routing with Dual Cable Port design
• SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 5.3 lbs (2.43 kg) without shock

Price

$6,199.00
