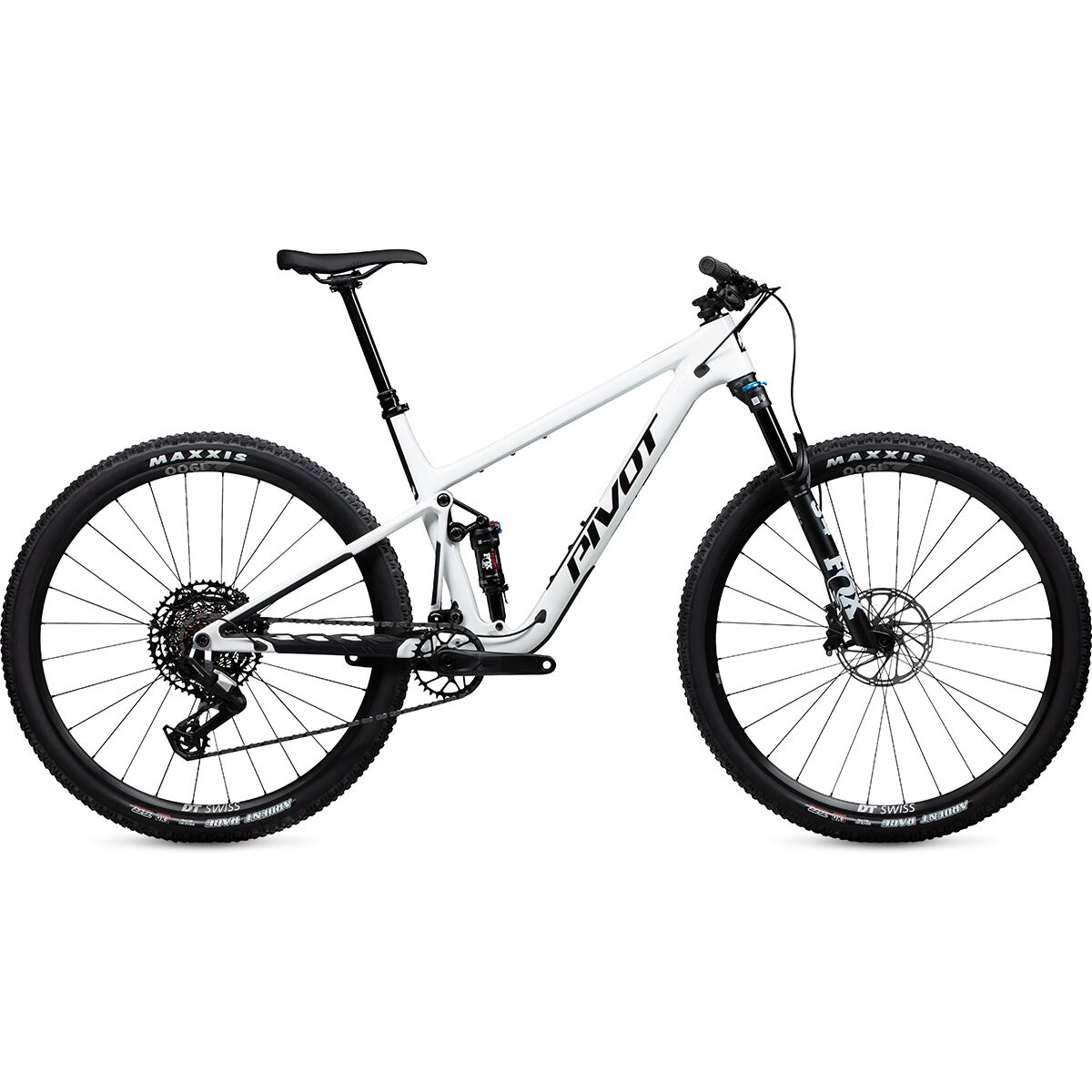

2026 Pivot Mach 4 SL Ride Eagle 70/90 Transmission Bike

7090 white 01
7090 white 01
7090 blue 01.png?VersionId=3ALoZKW3
x0 blue 02
x0 blue 03
xx white 02
xx white 03
detail
chip
toolshed 01.png?VersionId=vzv1P3nv
toolshed 02.png?VersionId=qf
7090 white 01 7090 blue 01.png?VersionId=A6oxZJu x0 blue 02 x0 blue 03.png?VersionId=Dt1yHQoZFU4fU cEy3PGZHC xx white 02.png?VersionId=ZxzAqdtn3XjEnCfjAqx xx white 03 detail.png?VersionId=a1mZNuApQOl chip.png?VersionId=SBjzSesIfbmXo0N1p1 toolshed 01 toolshed 02.png?VersionId=BLkPkKlY8TqKM5sStx4AS7dOM
Related:
Pivot
Where To Buy
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.
$6,399.00
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Pivot Mach 4 SL Ride Eagle 70/90 Transmission Bike
Model Year
2026
Intended Use
Cross Country
Trail
Rider
Unisex
Sizes and Geometry
XS
SM
MD
LG
XL
View Full Geometry
Sizes Additional Info
All specifications listed are with 120mm travel fork with 44mm offset
View Full Geometry
Wheel Size
29"
Frame Material
Carbon Fiber
Frame Material Details
High-modulus carbon fiber front and rear triangles; molded chainstay, seatstay, and lower down tube protection
Rear Travel
Setting one: 110mm
Setting two: 120mm
Rear Shock
FOX FLOAT Performance, 190mm length x 45mm stroke
Fork
FOX FLOAT 34 SL Performance, GRIP damper, 44mm offset
Fork Travel
120mm
Head Tube Diameter
Straight, 52mm
Headset
Pivot Precision, sealed integrated cartridge bearings, IS52 upper/lower
Handlebar
Phoenix Race Low Rise Aluminum, 780mm width
Stem
Phoenix Race XC/Trail, 60mm length
Grips
Phoenix Factory, lock-on
Brakes
SRAM DB8, 4-piston
Rotors: SRAM CenterLine, 6-bolt, 180mm front, 160mm rear
Brake Levers
SRAM DB8 Stealth, tooled reach adjust
Drivetrain
1x
Shifters
SRAM Eagle 90 Transmission, 12-speed
Front Derailleur
None
Rear Derailleur
SRAM Eagle 90 Transmission, 12-speed
ISCG Tabs
ISCG05 forward two bolts
Chainguide
None
Cranks
SRAM Eagle 70 Transmission Alloy DUB
Chainrings
SRAM Eagle 70 Transmission, 32 tooth
Bottom Bracket
SRAM DUB, 92mm PressFit
Pedals
None
Chain
SRAM Eagle 70 Transmission Flattop, 12-speed
Cassette
SRAM Eagle Transmission XS-1270, 12-speed, 10-52 tooth
Rims
DT Swiss X 1900 Alloy, 25mm width
Hubs
DT Swiss, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with HG driver
Spokes
DT Swiss wheelset
Tires
Maxxis Ardent Race, EXO casing, TR, 120 TPI, 29" x 2.2"
Saddle
WTB Volt Race Phoenix, narrow width
Seatpost
JD/Pivot YSP23GLS dropper
Seatpost Diameter
31.6mm
Seatpost Clamp
Single bolt, 36.4mm
Rear Dropout / Hub Dimensions
12mm x 148mm (Boost)
Max. Tire Size
29" x 2.4"
Bottle Cage Mounts
One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System
Colors
Blue Stellar Fade, White Avalanche
Warranty
10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings
Weight

Miscellaneous
• XC-Tuned dw-link rear suspension design
• Rear travel adjustable via two-position flip chip in linkage/upper shock mount
• Toolshed internal storage in down tube; includes custom made storage bags
• Internal cable routing with Pivot Cable Port System
• SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 2500 g (5.5 lbs) with FOX FLOAT shock
• Photos may show alternate builds
Price
$6,399.00
