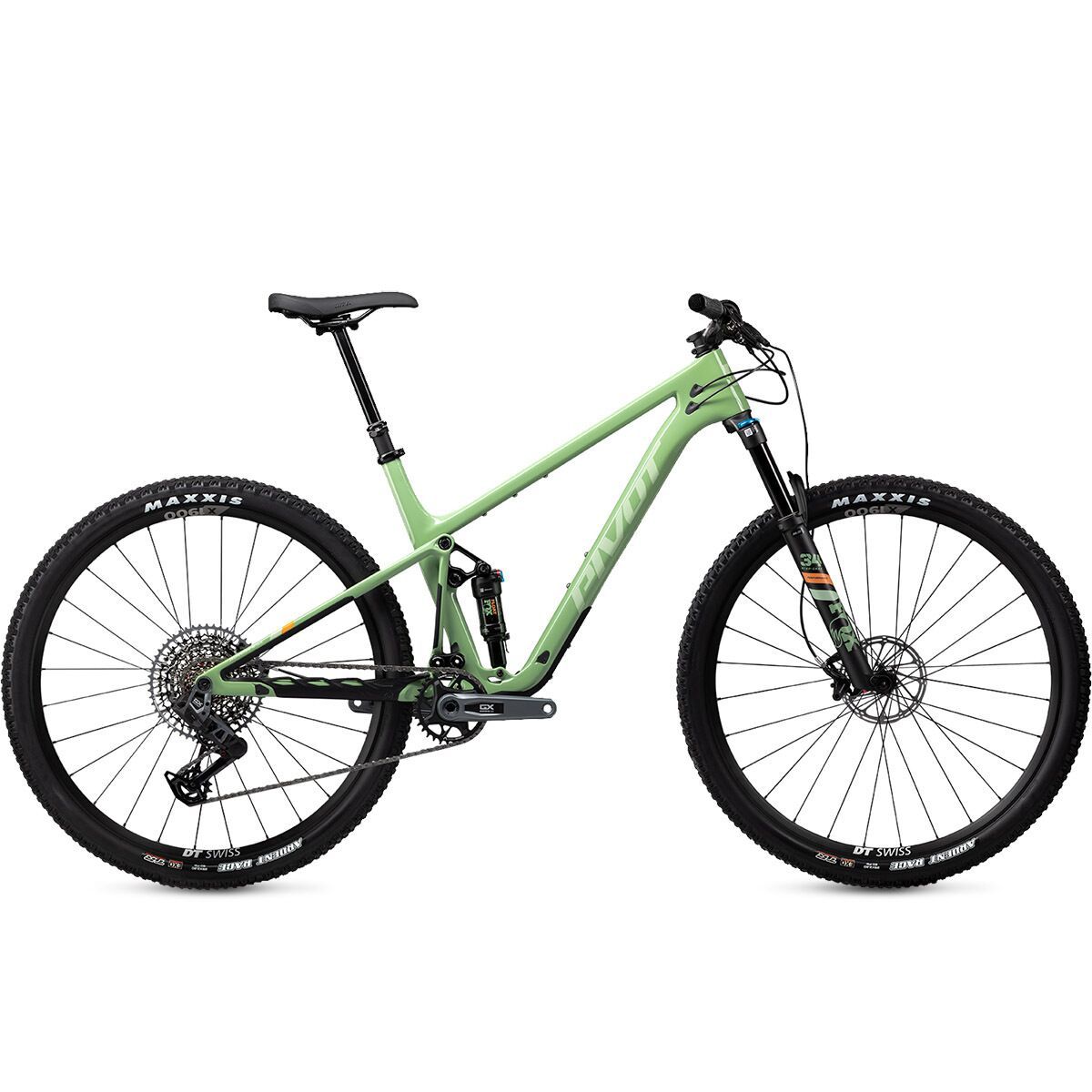

Pivot Mach 4 SL Ride GX Transmission Mountain Bike Sea Foam Green, L	Pivot Mach 4 SL Ride GX Transmission Mountain Bike Sea Foam Green, L $5,850.00	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Pivot Mach 4 SL Ride GX/X01 Bike

Model Year

2024

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	568mm	584mm	613mm	642mm	665mm
Head Tube Angle	66.7°	66.7°	66.7°	66.7°	66.7°
Head Tube Length	85mm	90mm	105mm	120mm	135mm
Seat Tube Angle	74.7°	74.7°	74.7°	74.7°	74.7°
Seat Tube Length	355mm	394mm	419mm	460mm	505mm
Bottom Bracket Height	336mm (38mm drop)	336mm (36mm drop)	336mm (36mm drop)	336mm (36mm drop)	336mm (36mm drop)
Chainstay Length	432mm	432mm	432mm	432mm	432mm
Wheelbase	1111mm	1128mm	1159mm	1189mm	1215mm
Standover	646mm	656mm	684mm	679mm	709mm
Reach	397mm	412mm	437mm	462mm	482mm
Stack	586mm	589mm	603mm	617mm	631mm
Additional Info	• All specifications listed are with 120mm travel fork with 44mm offset • Effective seat tube angles are calculated at an average saddle height for each size frame

Sizes Additional Info

• All specifications listed are with 120mm travel fork with 44mm offset

• Effective seat tube angles are calculated at an average saddle height for each size frame

View Full Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	568mm	584mm	613mm	642mm	665mm
Head Tube Angle	66.7°	66.7°	66.7°	66.7°	66.7°
Head Tube Length	85mm	90mm	105mm	120mm	135mm
Seat Tube Angle	74.7°	74.7°	74.7°	74.7°	74.7°
Seat Tube Length	355mm	394mm	419mm	460mm	505mm
Bottom Bracket Height	336mm (38mm drop)	336mm (36mm drop)	336mm (36mm drop)	336mm (36mm drop)	336mm (36mm drop)
Chainstay Length	432mm	432mm	432mm	432mm	432mm
Wheelbase	1111mm	1128mm	1159mm	1189mm	1215mm
Standover	646mm	656mm	684mm	679mm	709mm
Reach	397mm	412mm	437mm	462mm	482mm
Stack	586mm	589mm	603mm	617mm	631mm
Additional Info	• All specifications listed are with 120mm travel fork with 44mm offset • Effective seat tube angles are calculated at an average saddle height for each size frame

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles, size-specific carbon layups; injection-molded rubberized down tube, seatstay, and chainstay protection

Rear Travel

Setting one: 106mm

Setting two: 115mm

Rear Shock

FOX FLOAT Performance, 190mm length x 45mm stroke

Fork

FOX FLOAT 34 Step-Cast (SC) Performance, GRIP damper, 44mm offset

Fork Travel

120mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Pivot Precision, sealed integrated cartridge bearings

Handlebar

Phoenix Race Low Rise Aluminum, 780mm width

Stem

Phoenix Team XC/Trail, 60mm length

Grips

Phoenix Factory, lock-on

Brakes

SRAM DB8, 4-piston, SRAM CenterLine 160mm 6-bolt rotors

Brake Levers

SRAM DB8, tooled reach adjust

Drivetrain

Shifters

SRAM X01 Eagle, 12-speed

Front Derailleur

None

Rear Derailleur

SRAM X01 Eagle, 12-speed

ISCG Tabs

ISCG05 upper two tabs

Chainguide

None

Cranks

TruVativ Descendant Eagle 7K Alloy DUB, 175mm length

Chainrings

TruVativ Descendant Eagle, 32 tooth

Bottom Bracket

SRAM DUB, 92mm PressFit

Pedals

None

Chain

KMC X12, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

DT Swiss X1900, 25mm width

Hubs

DT Swiss 370, 15mm x 110mm (Boost) front, 12mm x 148mm (Boost) rear with XD driver

Spokes

DT Swiss wheelset

Tires

Maxxis Ardent Race, EXO casing, TR, 120 TPI, 29" x 2.2"

Saddle

WTB Volt Race Phoenix, narrow width

Seatpost

SDG Tellis dropper, adjustable travel
Drop: 105-125mm (XS/SM), 130-150mm (MD/LG), 150-170mm (XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

29" x 2.4"

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

Ice Blue, Seafoam Green, Midnight Sky

Warranty

10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings

Weight

Miscellaneous

• XC-Tuned dw-link rear suspension design
• Rear travel adjustable via flip chip in linkage/upper shock mount
• Internal cable routing with Pivot Cable Port System
• SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 1660g (3.65lbs)

Price

$6,699.00
