Specifications

Product

Pivot Firebird Team XTR Neo Bike

Model Year

2025

Intended Use

Enduro / All-Mountain

Freeride / Bike Park

Rider

Unisex

Sizes and Geometry

XS MX (Low, High)

SM MX (Low, High)

MD MX (Low, High)

LG MX (Low, High)

XL MX (Low, High)

SM 29 (Low, High)

MD 29 (Low, High)

LG 29 (Low, High)

XL 29 (Low, High)

View Full Geometry

Size	XS MX (Low, High)	SM MX (Low, High)	MD MX (Low, High)	LG MX (Low, High)	XL MX (Low, High)	SM 29 (Low, High)	MD 29 (Low, High)	LG 29 (Low, High)	XL 29 (Low, High)
Top Tube Length	559mm, 558mm	597mm, 596mm	623mm, 622mm	636mm, 635mm	658mm, 657mm	595mm, 594mm	620mm, 619mm	634mm, 633mm	656mm, 655mm
Head Tube Angle	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.8°, 64.2°	63.8°, 64.2°	63.8°, 64.2°	63.8°, 64.2°
Head Tube Length	85mm	95mm	108mm	118mm	128mm	95mm	108mm	118mm	128mm
Seat Tube Angle	76.80°, 77.60°	76.20°, 77.00°	76.20°, 77.00°	76.20°, 77.00°	76.20°, 77.00°	77.00°, 77.75°	77.00°, 77.75°	77.00°, 77.75°	77.00°, 77.75°
Seat Tube Length	365mm	385mm	415mm	440mm	475mm	385mm	415mm	440mm	475mm
Bottom Bracket Height	342mm (15mm drop), 347mm (10mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)
Chainstay Length	431 or 439mm, 430 or 438mm	431 or 439mm, 430 or 438mm	433 or 441mm, 432 or 440mm	435 or 443mm, 434 or 442mm	438 or 446mm, 437 or 445mm	431 or 439mm, 430 or 438mm	433 or 441mm, 432 or 440mm	435 or 443mm, 434 or 442mm	438 or 446mm, 437 or 445mm
Wheelbase	1180 or 1188mm, 1179 or 1187mm	1218 or 1225mm, 1217 or 1223mm	1249 or 1257mm, 1248 or 1256mm	1272 or 1280mm, 1271 or 1279mm	1230 or 1308mm, 1299 or 1306mm	1218 or 1226mm, 1217 or 1225mm	1249 or 1257mm, 1248 or 1256mm	1272 or 1280mm, 1271 or 1279mm	1300 or 1307mm, 1299 or 1306mm
Standover	675mm, 678mm	677mm, 682mm	681mm, 687mm	703mm, 708mm	708mm, 712mm	687mm, 692mm	692mm, 697mm	713mm, 719mm	716mm, 720mm
Reach	405mm, 410mm	436mm, 440mm	459mm, 463mm	476mm, 480mm	496mm, 500mm	445mm, 449mm	468mm, 472mm	485mm, 489mm	505mm, 509mm
Stack	618mm, 615mm	628mm, 625mm	640mm, 637mm	649mm, 646mm	658mm, 655mm	622mm, 619mm	633mm, 630mm	642mm, 639mm	651mm, 648mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • Chainstay length (and resulting wheelbase) adjustable via two-position Swinger Dropout System; above values given for Short/Long positions, respectively • Sizes SM-XL available with 29" wheels front/rear or mixed ("Mullet") setups (29" front, 27.5" rear); size XS available in mixed ("Mullet") setup only • All specifications listed are with 170mm travel fork with 44mm offset

Sizes Additional Info

• Geometry adjustable via two-position flip chip in upper linkage
• Chainstay length (and resulting wheelbase) adjustable via two-position Swinger Dropout System; above values given for Short/Long positions, respectively
• Sizes SM-XL available with 29" wheels front/rear or mixed ("Mullet") setups (29" front, 27.5" rear); size XS available in mixed ("Mullet") setup only
• All specifications listed are with 170mm travel fork with 44mm offset

View Full Geometry

Size	XS MX (Low, High)	SM MX (Low, High)	MD MX (Low, High)	LG MX (Low, High)	XL MX (Low, High)	SM 29 (Low, High)	MD 29 (Low, High)	LG 29 (Low, High)	XL 29 (Low, High)
Top Tube Length	559mm, 558mm	597mm, 596mm	623mm, 622mm	636mm, 635mm	658mm, 657mm	595mm, 594mm	620mm, 619mm	634mm, 633mm	656mm, 655mm
Head Tube Angle	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.1°, 64.3°	63.8°, 64.2°	63.8°, 64.2°	63.8°, 64.2°	63.8°, 64.2°
Head Tube Length	85mm	95mm	108mm	118mm	128mm	95mm	108mm	118mm	128mm
Seat Tube Angle	76.80°, 77.60°	76.20°, 77.00°	76.20°, 77.00°	76.20°, 77.00°	76.20°, 77.00°	77.00°, 77.75°	77.00°, 77.75°	77.00°, 77.75°	77.00°, 77.75°
Seat Tube Length	365mm	385mm	415mm	440mm	475mm	385mm	415mm	440mm	475mm
Bottom Bracket Height	342mm (15mm drop), 347mm (10mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	340mm (18mm drop), 344mm (13mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)	349mm (25mm drop), 354mm (17mm drop)
Chainstay Length	431 or 439mm, 430 or 438mm	431 or 439mm, 430 or 438mm	433 or 441mm, 432 or 440mm	435 or 443mm, 434 or 442mm	438 or 446mm, 437 or 445mm	431 or 439mm, 430 or 438mm	433 or 441mm, 432 or 440mm	435 or 443mm, 434 or 442mm	438 or 446mm, 437 or 445mm
Wheelbase	1180 or 1188mm, 1179 or 1187mm	1218 or 1225mm, 1217 or 1223mm	1249 or 1257mm, 1248 or 1256mm	1272 or 1280mm, 1271 or 1279mm	1230 or 1308mm, 1299 or 1306mm	1218 or 1226mm, 1217 or 1225mm	1249 or 1257mm, 1248 or 1256mm	1272 or 1280mm, 1271 or 1279mm	1300 or 1307mm, 1299 or 1306mm
Standover	675mm, 678mm	677mm, 682mm	681mm, 687mm	703mm, 708mm	708mm, 712mm	687mm, 692mm	692mm, 697mm	713mm, 719mm	716mm, 720mm
Reach	405mm, 410mm	436mm, 440mm	459mm, 463mm	476mm, 480mm	496mm, 500mm	445mm, 449mm	468mm, 472mm	485mm, 489mm	505mm, 509mm
Stack	618mm, 615mm	628mm, 625mm	640mm, 637mm	649mm, 646mm	658mm, 655mm	622mm, 619mm	633mm, 630mm	642mm, 639mm	651mm, 648mm
Additional Info	• Geometry adjustable via two-position flip chip in upper linkage • Chainstay length (and resulting wheelbase) adjustable via two-position Swinger Dropout System; above values given for Short/Long positions, respectively • Sizes SM-XL available with 29" wheels front/rear or mixed ("Mullet") setups (29" front, 27.5" rear); size XS available in mixed ("Mullet") setup only • All specifications listed are with 170mm travel fork with 44mm offset

Wheel Size

29"

Mixed Wheel Size

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon fiber front and rear triangles, size-specific Proprietary Ride Tuning carbon layups and stiffness; molded seatstay, chainstay, lower down tube, and shuttle guard protection

Rear Travel

165mm

Rear Shock

FOX DHX Live Valve Neo Factory, 2-position (Open/Firm) automatic electronic compression damping adjustment, Firm Mode adjust, low-speed compression adjust, low-speed rebound adjust, trunnion mount, 205mm length x 65mm stroke

Fork

FOX FLOAT 38 Factory, GRIP X2 damper, Kashima coating, 44mm offset

Fork Travel

170mm

Head Tube Diameter

Straight, 1.5"

Headset

Pivot Precision, sealed cartridge bearings, ZS56 upper/lower

Handlebar

Phoenix Team Carbon
XS: 760mm width, 20mm rise; SM: 780mm width, 20mm rise; MD-XL: 780mm width, 35mm rise

Stem

Phoenix Team Enduro V2, 7° rise
Length: 32mm (XS), 40mm (SM-LG), 50mm (XL)

Grips

Phoenix Factory, lock-on

Brakes

Shimano XTR M9120, 4-piston, Shimano XTR 203mm CENTER LOCK rotors

Brake Levers

Shimano XTR M9100

Drivetrain

Shifters

Shimano XTR M9100, 12-speed, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano XTR M9100, 12-speed, SGS cage

ISCG Tabs

ISCG05

Chainguide

Upper slider

Cranks

Race Face Next R Carbon, 170mm length

Chainrings

Race Face Next R, 32 tooth

Bottom Bracket

92mm press-fit

Pedals

None

Chain

Shimano XTR M9100, 12-speed

Cassette

Shimano XTR M9100, 12-speed, 10-51 tooth

Rims

Reynolds Blacklabel Enduro Pro Carbon, 32mm width

Hubs

Industry Nine, 15mm x 110mm (Boost) front, 12mm x 157mm (SuperBoost+) rear with MICRO SPLINE driver

Spokes

Tires

Front: Continental Kyrptotal-F, Soft compound, Enduro casing, 29" x 2.4"
Rear: Continental Kyrptotal-R, Soft compound, Enduro casing, 2.4"

Saddle

XS/SM: WTB High Tail Trail Team Phoenix
MD-XL: WTB Volt Team Phoenix, medium width

Seatpost

FOX Transfer Neo Factory dropper, electronic wireless, Kashima coating
Drop: 150mm (XS), 175mm (SM), 200mm (MD-XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12mm x 157mm (SuperBoost+)

Max. Tire Size

2.6"

Bottle Cage Mounts

One inside front triangle, one under down tube, plus accessory mounts under top tube; compatible with Pivot Dock Tool System

Colors

White Gold, YOLO, Purple Galaxy

Warranty

10 years frame, 5 years Pivot/Phoenix components, 1 year paint/finish/bearings

Weight

Miscellaneous

• dw-link rear suspension design
• Sizes SM-XL available with 29" wheels front/rear or mixed ("Mullet") setups (29" front, 27.5" rear); size XS available in mixed ("Mullet") setup only
• Geometry adjustable via two-position flip chip in upper linkage
• Chainstay length (and resulting wheelbase) adjustable via two-position Swinger Dropout System
• Rear suspension progressivity adjustable via two-position (progressive/linear) flip chip at lower shock mount

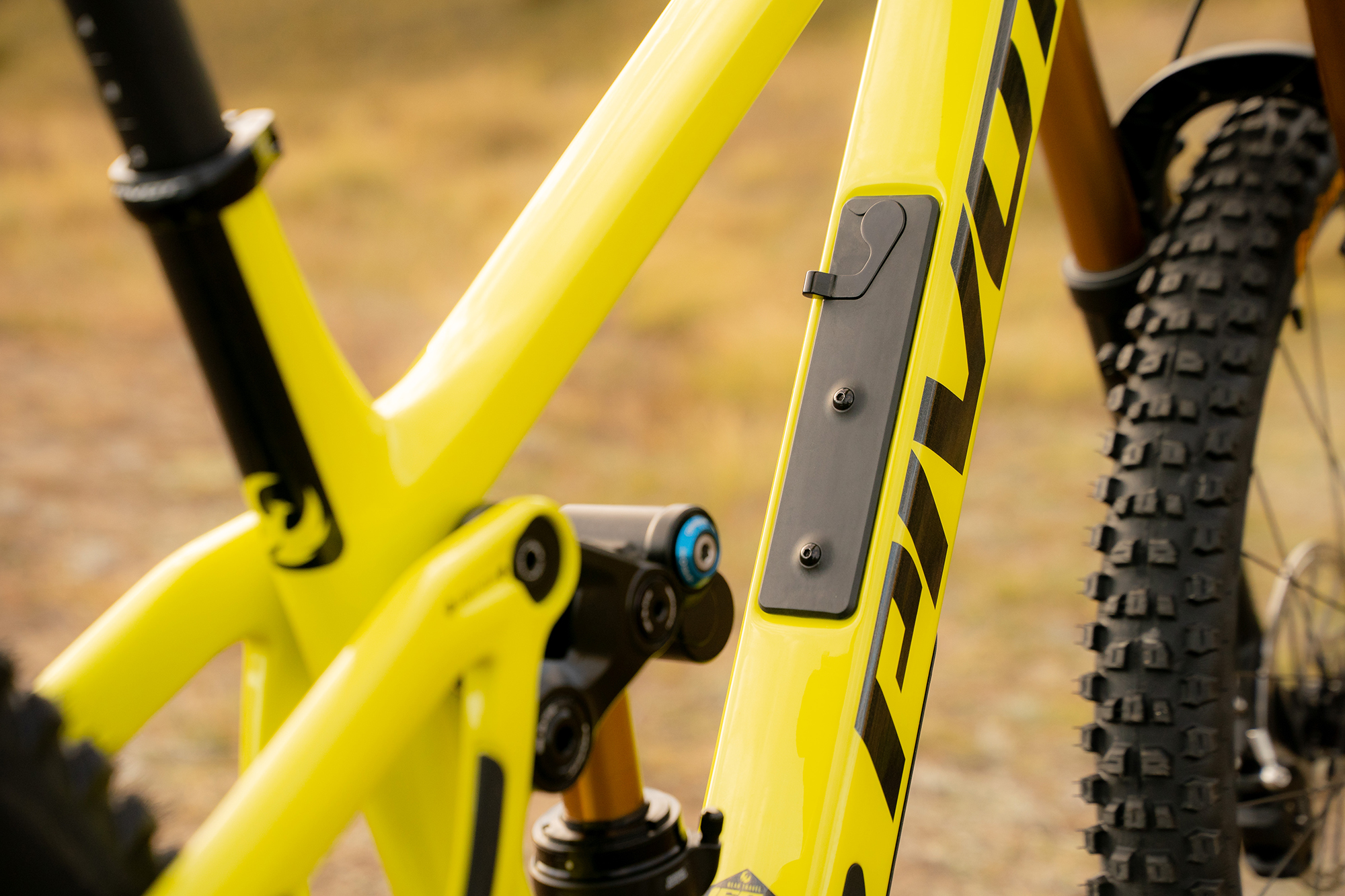

• Toolshed in-frame storage system in down tube; includes two custom storage bags
• Cable Port System internal cable routing, with integrated cable clips inside Toolshed hatch
• SRAM UDH (Universal Derailleur Hanger)
• Compatible with aftermarket reach and angle adjust headsets
• Frame weight: 6.18 lbs (2.8 kg)
• Follow easy setup guides, monitor battery levels, download and engage Live Valve Neo tunes, and track suspension service intervals via the FOX Bike App

Price

$11,699.00
