2024 Marin Team Marin 2 Bike

(discontinued)

Discontinued


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $1,599.00	Buy
Marin Bikes \| Team Marin Bikes \| 1 Bike \| Solid Green \| M \| Nylon	Marin Bikes \| Team Marin Bikes \| 1 Bike \| Solid Green \| M \| Nylon $1,599.00	Buy
Marin Bikes \| Tam 1 Bike \| Grey/blue \| L	Marin Bikes \| Tam 1 Bike \| Grey/blue \| L $2,399.00	Buy
Marin Bikes \| Tam 2 29" Bike \| Silver Grey Blue \| M	Marin Bikes \| Tam 2 29" Bike \| Silver Grey Blue \| M $3,399.00	Buy

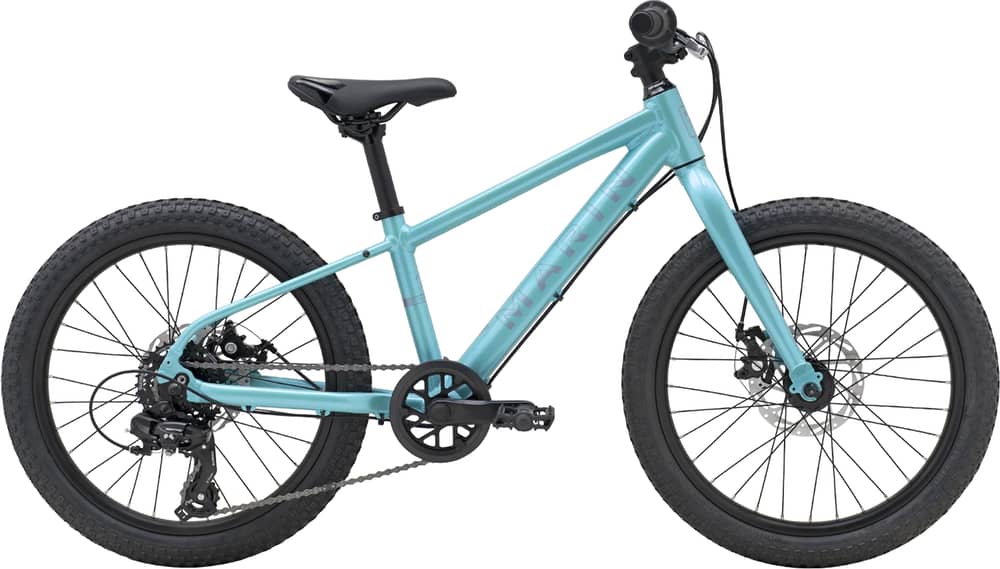

Marin Bikes \| Bayview Trail 20" Bike Teal Silver Xs \| Nylon	Marin Bikes \| Bayview Trail 20" Bike Teal Silver Xs \| Nylon $529.00	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Bikes

Specifications

Product

Marin Team Marin 2 Bike

Model Year

2024

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	586.0mm	607.3mm	628.7mm	666.3mm
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	97mm	102mm	107mm	117mm
Seat Tube Angle	74°	74°	74°	74°
Seat Tube Length	381mm	431mm	482mm	520mm
Bottom Bracket Height	319.75mm (58mm drop)	319.75mm (58mm drop)	319.75mm (58mm drop)	319.75mm (58mm drop)
Chainstay Length	425mm	425mm	425mm	425mm
Wheelbase	1122.40mm	1144.30mm	1166.30mm	1205.19mm
Standover	678.7mm	707.0mm	753.5mm	786.5mm
Reach	410mm	430mm	450mm	485mm
Stack	613.90mm	618.50mm	623.05mm	632.30mm
Additional Info	All specifications listed are with 120mm travel fork with 44mm offset

Sizes Additional Info

All specifications listed are with 120mm travel fork with 44mm offset

View Full Geometry

Size	SM	MD	LG	XL
Top Tube Length	586.0mm	607.3mm	628.7mm	666.3mm
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	97mm	102mm	107mm	117mm
Seat Tube Angle	74°	74°	74°	74°
Seat Tube Length	381mm	431mm	482mm	520mm
Bottom Bracket Height	319.75mm (58mm drop)	319.75mm (58mm drop)	319.75mm (58mm drop)	319.75mm (58mm drop)
Chainstay Length	425mm	425mm	425mm	425mm
Wheelbase	1122.40mm	1144.30mm	1166.30mm	1205.19mm
Standover	678.7mm	707.0mm	753.5mm	786.5mm
Reach	410mm	430mm	450mm	485mm
Stack	613.90mm	618.50mm	623.05mm	632.30mm
Additional Info	All specifications listed are with 120mm travel fork with 44mm offset

Wheel Size

29"

Frame Material

Aluminum

Frame Material Details

Series 4 6061 alloy, advanced tube forming, 3D-forged dropouts

Rear Travel

Hardtail

Rear Shock

None

Fork

FOX FLOAT 34 Step-Cast (SC) Performance, 44mm offset, Kabolt thru-axle

Fork Travel

120mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

FSA No.42 ACB

Handlebar

Marin Mini-Riser, 6061 double-butted aluminum, 780mm width, 4° upsweep, 9° backsweep

Stem

Marin 3D-forged alloy, 35mm length

Grips

Marin, single clamp lock-on

Brakes

TRP G-Spec, 2-piston, flat-mount rear, 180mm front rotor, 160mm rear rotor

Brake Levers

TRP G-Spec

Drivetrain

Shifters

Shimano SLX M7100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore XT M8100, 12-speed

ISCG Tabs

None

Chainguide

None

Cranks

FSA GRID, modular 1x, MegaEXO spindle
Length: 170mm (SM), 175mm (MD-XL)

Chainrings

FSA MegaTooth, 32 tooth, direct mount

Bottom Bracket

FSA MegaEXO, 73mm English/BSA threaded

Pedals

Marin Oso nylon platform

Chain

KMC X-12, 12-speed

Cassette

SunRace, 12-speed, 11-51 tooth

Rims

Marin, double wall aluminum, sleeved joint, 29mm inner width, 32 hole, tubeless compatible

Hubs

Front: Shimano, 15mm x 110mm (Boost)
Rear: forged aluminum, 12mm x 148mm (Boost), HG driver

Spokes

Stainless steel, 14g

Tires

Maxxis Rekon Race, folding bead, TR, 29" x 2.35"

Saddle

Marin Speed Concept

Seatpost

TransX YSP23JL dropper, 1x remote lever
Drop: 125mm (SM), 150mm (MD-XL)

Seatpost Diameter

30.9mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

12mm x 148mm (Boost)

Max. Tire Size

Bottle Cage Mounts

Two inside front triangle

Colors

Gloss Metallic Blue/Holograph

Warranty

Lifetime frame; 1 year components, paint and decals

Weight

Miscellaneous

Internal cable routing

Price

$2,499.00

More Info

Marin website
