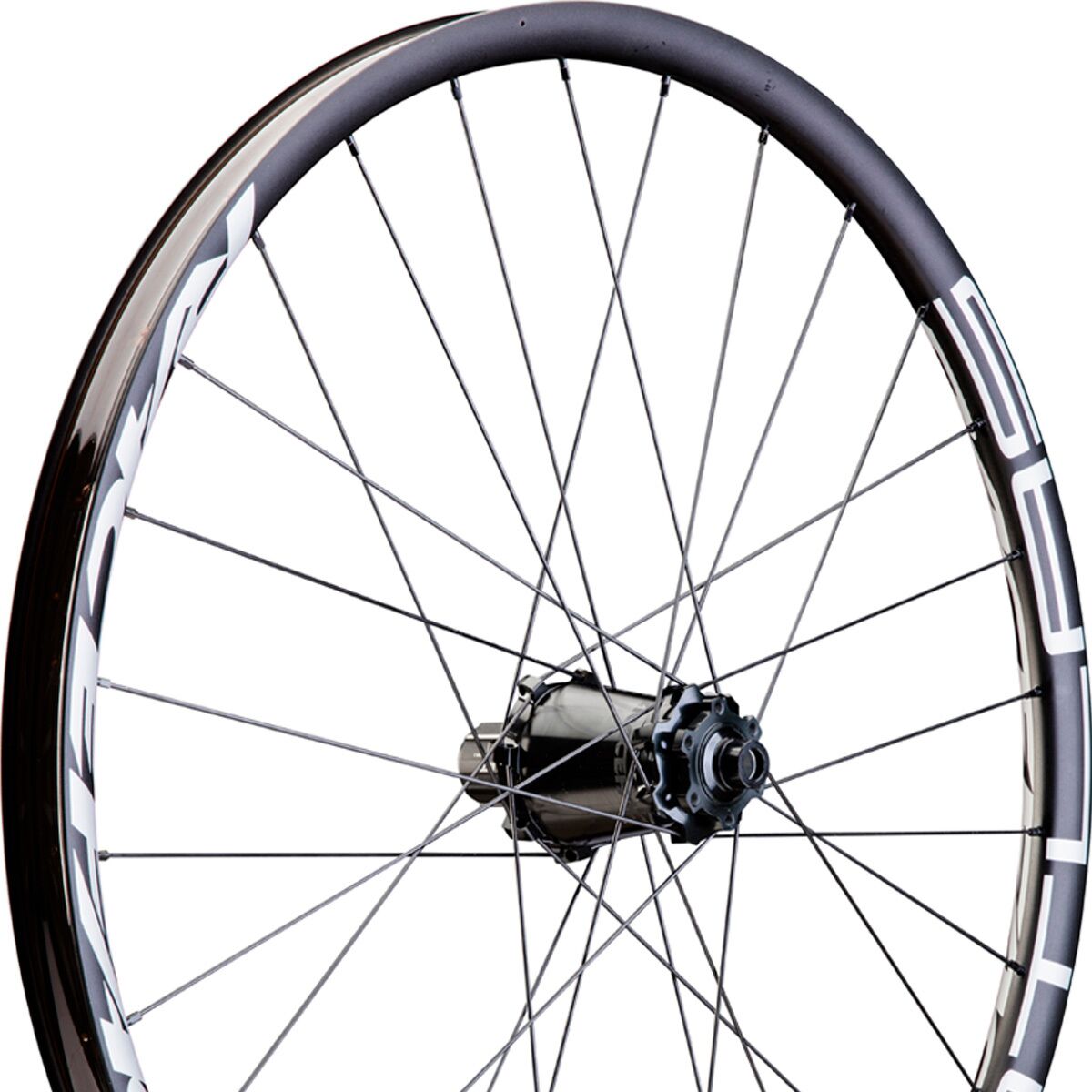

Race Face Atlas 30 29in DH Wheel Black, Rear, XD, 12x148mm	Race Face Atlas 30 29in DH Wheel Black, Rear, XD, 12x148mm $638.99	Buy
Race Face Atlas 30 29in DH Wheel Black, Rear, MicroSpline, 12x148mm	Race Face Atlas 30 29in DH Wheel Black, Rear, MicroSpline, 12x148mm $638.99	Buy
Free shipping on orders over $49 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $49 (continental U.S. only). International shipping available. Some exclusions apply. $608.99	Buy
Race Face Atlas Rear Wheel - 29" - 12x150/157mm - XD - Black	Race Face Atlas Rear Wheel - 29" - 12x150/157mm - XD - Black $608.99	Buy
Race Face Atlas Front Wheel - 29" - 15x110/20x110mm - Black	Race Face Atlas Front Wheel - 29" - 15x110/20x110mm - Black $435.99	Buy
Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $457.99	Buy
Race Face \| Atlas 30 27.5" Wheel Front, 20X110Mm \| Aluminum	Race Face \| Atlas 30 27.5" Wheel Front, 20X110Mm \| Aluminum $457.99	Buy
Race Face \| Atlas 30 29" Wheel Rear, 12X150/157Mm, Shimano Hg \| Aluminum	Race Face \| Atlas 30 29" Wheel Rear, 12X150/157Mm, Shimano Hg \| Aluminum $638.99	Buy
Race Face \| Atlas 30 29" Wheel - Oe Packaged 12X157Mm, 6 Bolt, Hg \| Aluminum	Race Face \| Atlas 30 29" Wheel - Oe Packaged 12X157Mm, 6 Bolt, Hg \| Aluminum $349.00	Buy
Race Face \| Arc Heavyduty 30 Alloy 29" Rim 32 Hole \| Aluminum	Race Face \| Arc Heavyduty 30 Alloy 29" Rim 32 Hole \| Aluminum $121.99	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Wheelsets

Specifications

Product

Race Face Atlas Wheels

Intended Use

Downhill

Freeride / Bike Park

Wheel Size

27.5" (650b)

Rim Material

Aluminum

Rim

6069 aluminum, 22mm height, dent and flat resistant bead design, 4.5mm spoke offset

Inner Rim Width

30mm

Hole Count

Tubeless Compatible

Yes

Rear Hub

Race Face Vault:
--6 double tooth individually sprung pawls (3 engage at a time)
--120 points of engagement (3 degrees)
--Shimano or SRAM XD cassette driver

Rear Axle

12mm x 150mm

12mm x 157mm

Front Hub

Race Face Vault

Front Axle

20mm x 110mm

Disc Mount Type

6 Bolt

Spokes

2.0/1.8 straight pull, 3x pattern (5 spares included), single spoke length for entire wheelset

Nipples

Colors

Black anodized

Weight

27.5": 4 lb 4.8 oz (1,950 g)

29": 4 lb 8.1 oz (2,044 g)

Miscellaneous

Large oversized hub flange for improved bracing angle and larger bearings

Wide bearing stance

Tool-free interchangeable end caps (sold separately)

Rim tape and tubeless valves pre-installed

4.5mm spoke offset improves spoke balance and wheel stiffness

Price

Front: $414.99

Rear: $579.99
