Salsa Timberjack Frame

Specifications

Product

Salsa Timberjack Frame

Intended Use

Cross Country

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	570.0mm	594.1mm	615.3mm	639.0mm	659.3mm
Head Tube Angle	66.4°	66.4°	66.4°	66.4°	66.4°
Head Tube Length	100mm	100mm	105mm	115mm	125mm
Seat Tube Angle	75.1°	75.1°	75.1°	75.1°	75.1°
Seat Tube Length	342.9mm	370.0mm	395.0mm	432.0mm	457.2mm
Bottom Bracket Height	56.6mm drop	56.6mm drop	56.6mm drop	56.6mm drop	56.6mm drop
Chainstay Length	420-437mm	420-437mm	420-437mm	420-437mm	420-437mm
Wheelbase	1120.0mm	1142.5mm	1164.5mm	1180.5mm	1211.7mm
Standover	702.9mm (29"), 685.5mm (27.5+)	722.6mm (29"), 705.2mm (27.5+)	742.1mm (29"), 724.7mm (27.5+)	772.1mm (29"), 754.8mm (27.5+)	792.9mm (29"), 775.5mm (27.5+)
Reach	410.7mm	433.6mm	453.6mm	475.5mm	492.6mm
Stack	599.0mm	599.0mm	607.4mm	613.5mm	625.5mm
Additional Info	All specifications listed are with 130mm travel fork. Chainstay length adjustable via Alternator 2.0 dropouts; wheelbase values given for 420mm chainstay setting. Standover measured 50mm forward of bottom bracket center with unsagged fork.

Sizes Additional Info

All specifications listed are with 130mm travel fork. Chainstay length adjustable via Alternator 2.0 dropouts; wheelbase values given for 420mm chainstay setting. Standover measured 50mm forward of bottom bracket center with unsagged fork.

View Full Geometry

Size	XS	SM	MD	LG	XL
Top Tube Length	570.0mm	594.1mm	615.3mm	639.0mm	659.3mm
Head Tube Angle	66.4°	66.4°	66.4°	66.4°	66.4°
Head Tube Length	100mm	100mm	105mm	115mm	125mm
Seat Tube Angle	75.1°	75.1°	75.1°	75.1°	75.1°
Seat Tube Length	342.9mm	370.0mm	395.0mm	432.0mm	457.2mm
Bottom Bracket Height	56.6mm drop	56.6mm drop	56.6mm drop	56.6mm drop	56.6mm drop
Chainstay Length	420-437mm	420-437mm	420-437mm	420-437mm	420-437mm
Wheelbase	1120.0mm	1142.5mm	1164.5mm	1180.5mm	1211.7mm
Standover	702.9mm (29"), 685.5mm (27.5+)	722.6mm (29"), 705.2mm (27.5+)	742.1mm (29"), 724.7mm (27.5+)	772.1mm (29"), 754.8mm (27.5+)	792.9mm (29"), 775.5mm (27.5+)
Reach	410.7mm	433.6mm	453.6mm	475.5mm	492.6mm
Stack	599.0mm	599.0mm	607.4mm	613.5mm	625.5mm
Additional Info	All specifications listed are with 130mm travel fork. Chainstay length adjustable via Alternator 2.0 dropouts; wheelbase values given for 420mm chainstay setting. Standover measured 50mm forward of bottom bracket center with unsagged fork.

Wheel Size

29"

27.5+

Frame Material

Aluminum

Frame Material Details

6061-T6 alloy, double and triple-butted main triangle

Rear Travel

Hardtail

Rear Shock

None

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Bottom Bracket

73mm English/BSA threaded

Rear Dropout / Hub Dimensions

148x12mm Boost

Front Derailleur Size

N/A (1x-specific)

Seatpost Diameter

30.9mm

Max Tire Size

29" x 2.6" or 27.5" x 2.8"

ISCG Tabs

None

Bottle Cage Mounts

One (XS) or two (SM/MD/LG/XL) inside front triangle (three pack on down tube), one under down tube, plus accessory mounts on top tube

Colors

Black

Warranty

3 years

Weight

5 lb 8 oz (2,495 g)

Miscellaneous

• 2021-2026 version
• Full-length internal cable routing
• Chainstay length adjustable via Alternator 2.0 dropouts, which accomodate either singlespeed or geared setups, and multiple hub standards
• Rear rack mounts
• Designed for 100-150mm travel forks with 42-51mm offset
• 34 tooth max chainring
• IS rear brake mounts; 180mm max rotor
• Weight given for size MD, with axle, Alternator plates, and headset
• Includes headset: FSA Orbit No.57E 1.5 ZS
• Includes seatpost clamp: Salsa Lip-Lock, 35mm

Price

$699.00

More Info

salsacycles.com

Review This Product

What do you think?

Salsa Timberjack Frame

Specifications

More Products

Kona Honzo ST Frame

Bird Zero 29 Frame

Niner AIR 9 Aluminum Frame

Kona Honzo DL Frame

Canfield Yelli Screamy Frame

Dartmoor Primal 27.5 V2 Frame

Surly Karate Monkey Frame

Banshee Enigma Frame

Deals

Deals


Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Free U.S. shipping on everything. International shipping available. Some exclusions apply. $3,249.00	Buy
Salsa Timberjack Ti Frame XL	Salsa Timberjack Ti Frame XL $3,249.00	Buy
Salsa Timberjack 24 Frame Pack Black	Salsa Timberjack 24 Frame Pack Black $26.99	Buy
Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Small	Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Small $699.00	Buy
Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Medium	Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Medium $699.00	Buy
Salsa Timberjack Frame - 29/27.5", Aluminum, Black, X-Small	Salsa Timberjack Frame - 29/27.5", Aluminum, Black, X-Small $699.00	Buy
Salsa Timberjack Frame - 29/27.5", Aluminum, Black, X-Large	Salsa Timberjack Frame - 29/27.5", Aluminum, Black, X-Large $699.00	Buy
Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Large	Salsa Timberjack Frame - 29/27.5", Aluminum, Black, Large $699.00	Buy
Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, X-Large	Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, X-Large $2,499.00	Buy
Salsa Timberjack XT Bike - 29", Aluminum, Blue, X-Large	Salsa Timberjack XT Bike - 29", Aluminum, Blue, X-Large $2,499.00	Buy
Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, Large	Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, Large $2,499.00	Buy
Salsa Timberjack XT Bike - 29", Aluminum, Blue, X-Small	Salsa Timberjack XT Bike - 29", Aluminum, Blue, X-Small $2,499.00	Buy
Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, Medium	Salsa Timberjack XT Bike - 27.5", Aluminum, Copper, Medium $2,499.00	Buy
Salsa Timberjack XT Bike - 29", Aluminum, Blue, Large	Salsa Timberjack XT Bike - 29", Aluminum, Blue, Large $2,499.00	Buy
Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Large	Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Large $2,099.00	Buy
Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, Large	Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, Large $2,099.00	Buy
Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, Medium	Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, Medium $2,099.00	Buy
Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, X-Large	Salsa Timberjack SLX Bike - 27.5", Aluminum, Mint Green, X-Large $2,099.00	Buy
Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Medium	Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Medium $2,099.00	Buy
Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Small	Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, Small $2,099.00	Buy
Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, X-Small	Salsa Timberjack SLX Bike - 29", Aluminum, Army Green, X-Small $2,099.00	Buy
Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Small	Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Small $2,199.00	Buy
Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Medium	Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Medium $2,199.00	Buy
Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, X-Large	Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, X-Large $2,199.00	Buy
Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, X-Small	Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, X-Small $2,199.00	Buy
Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Large	Salsa Timberjack Eagle 70 Transmission Bike - 29", Aluminum, Black Spruce, Large $2,199.00	Buy
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply. $699.00	Buy

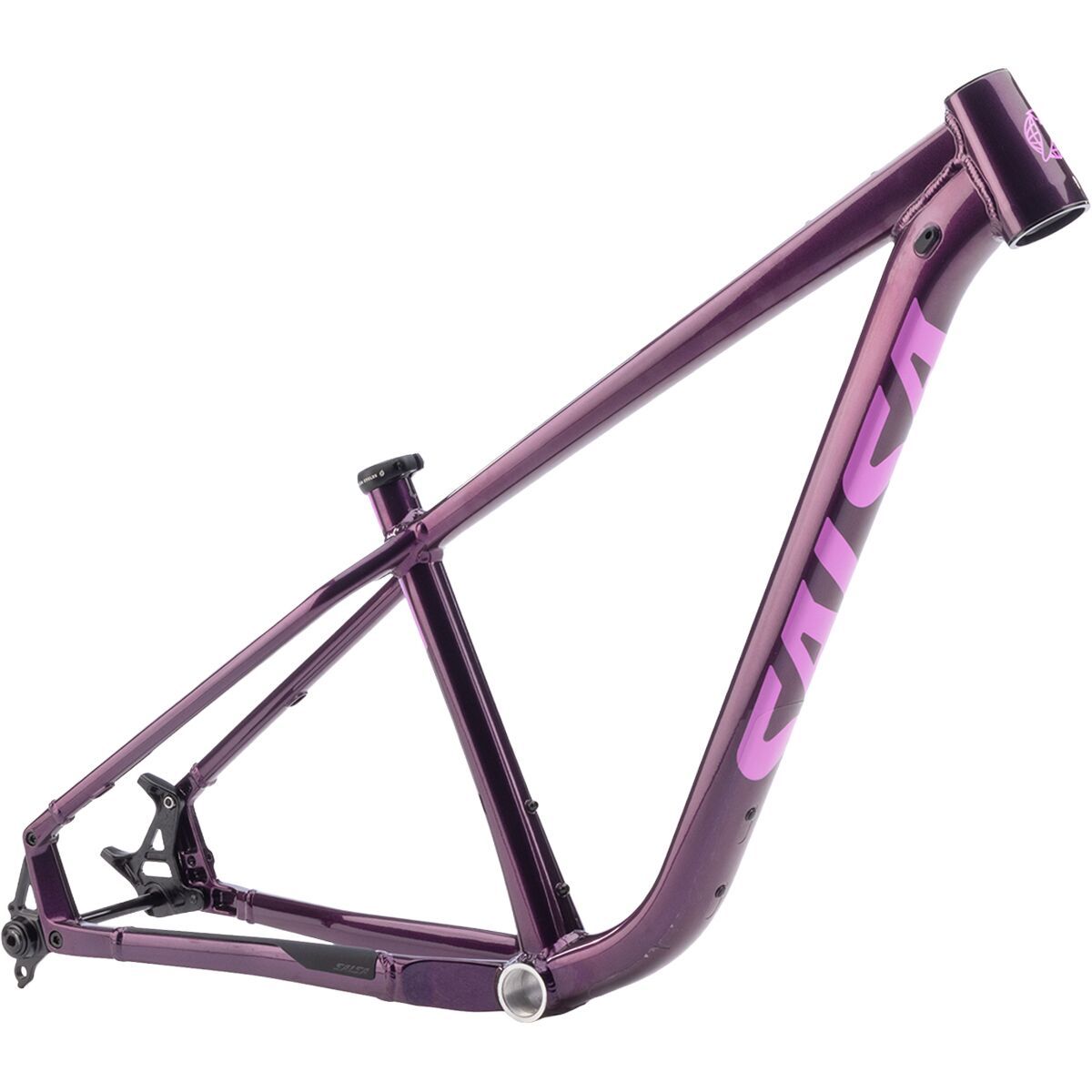

Salsa Timberjack Mountain Bike Frame Deep Purple, S	Salsa Timberjack Mountain Bike Frame Deep Purple, S $699.00	Buy

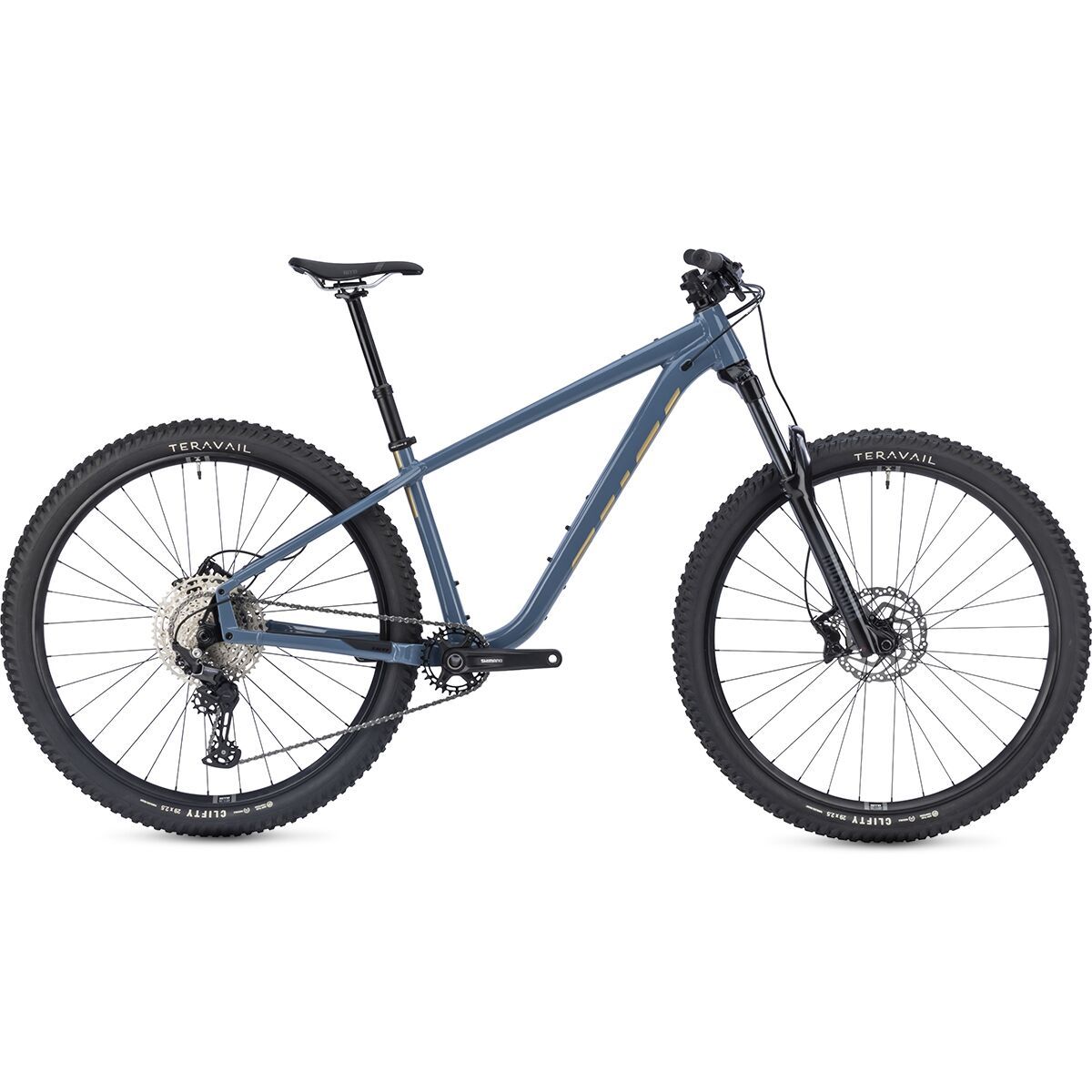

Salsa Timberjack Deore Mountain Bike Deep Teal, L	Salsa Timberjack Deore Mountain Bike Deep Teal, L $1,799.00	Buy
