Orange Four Frame

(discontinued)

Discontinued


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $1,960.00	Buy

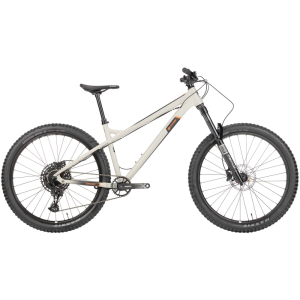

Orange Bikes \| Orange Crush Comp Bike \| Stork Grey \| L	Orange Bikes \| Orange Crush Comp Bike \| Stork Grey \| L $1,960.00	Buy
Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available Frames
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available Frames

Specifications

Product

Orange Four Frame

Intended Use

Trail

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	S	M	L	XL
Top Tube Length	590	610	630	650
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	100	110	110	130
Seat Tube Angle	74°	74°	74°	74°
Seat Tube Length	381	431.8	475.2	508
Bottom Bracket Height	330 (-25 drop)	330 (-25 drop)	330 (-25 drop)	330 (-25 drop)
Chainstay Length	424	424	424	424
Wheelbase	1132	1153	1173	1196
Standover	690	730	744	783
Reach	421	438	458	473
Stack	588	598	598	616
Additional Info	All measurements in mm unless otherwise noted

Sizes Additional Info

All measurements in mm unless otherwise noted

View Full Geometry

Size	S	M	L	XL
Top Tube Length	590	610	630	650
Head Tube Angle	67°	67°	67°	67°
Head Tube Length	100	110	110	130
Seat Tube Angle	74°	74°	74°	74°
Seat Tube Length	381	431.8	475.2	508
Bottom Bracket Height	330 (-25 drop)	330 (-25 drop)	330 (-25 drop)	330 (-25 drop)
Chainstay Length	424	424	424	424
Wheelbase	1132	1153	1173	1196
Standover	690	730	744	783
Reach	421	438	458	473
Stack	588	598	598	616
Additional Info	All measurements in mm unless otherwise noted

Wheel Size

27.5" (650b)

Frame Material

Aluminum

Frame Material Details

6061-T6 Reynolds custom butted tubing

Rear Travel

120mm

Rear Shock

FOX Float DPS Performance, 184x44mm

Head Tube Diameter

49mm parallel

Bottom Bracket

73mm

Rear Dropout / Hub Dimensions

Boost 12x148mm

Front Derailleur Size

None

Seatpost Diameter

30.9mm

Max Tire Size

ISCG Tabs

ISCG05

Bottle Cage Mounts

None

Colors

Jet black, sterling silver, cyan blue, charcoal grey, fizzy orange, norlando grey, tropicial blue, ron burgundy, wasabi green or mustard yellow

Warranty

5 year

Weight

N/A

Miscellaneous

1800 GBP
2019 model
Internal dropper post routing
Single-pivot suspension
Frame designed and built in Britain

Price

N/A

More Info

www.orangebikes.co.uk
