2020 Trek Powerfly FS 5 E-Bike
(discontinued)

Discontinued
s1600 2020 Trek Powerfly FS 5
c70 2020 Trek Powerfly FS 5
s1600 2020 Trek Powerfly FS 5
Related:
Trek
Where To Buy
$70 standard shipping on bikes (continental U.S. only).
$70 standard shipping on bikes (continental U.S. only).
$5,499.99
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Trek Powerfly FS 5 E-Bike
Model Year
2020
Intended Use
Trail
Rider
Unisex
Sizes and Geometry
S (High, Low)
M (High, Low)
ML (High, Low)
L (High, Low)
XL (High, Low)
View Full Geometry
Sizes Additional Info
Multiple values are for geometry with the Mino Link in High and Low position, respectively.
All measurements are in mm unless otherwise noted.
View Full Geometry
Wheel Size
27.5" (650b)
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Bosch Performance CX, alloy motor body, 250 watt, 75 Nm
Battery
Bosch PowerTube, Removable Integrated Battery
Battery Capacity
500 Wh
Display/Remote
Bosch Purion
Modes
Eco, Tour, Sport, Turbo, and Walk Assist
Max Speed with Assist
20 mph (32 km/h)
Frame Material
Aluminum
Frame Material Details

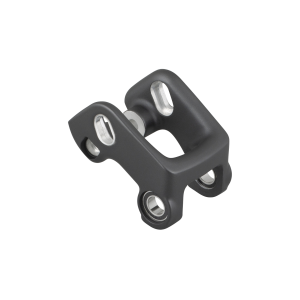

Alpha Platinum Aluminum, magnesium rocker link
Rear Travel
130mm
Rear Shock
RockShox Deluxe RL
Fork
RockShox Recon RL, Solo Air spring, Motion Control damper, tapered steerer, 51mm offset, Boost110, 15mm Maxle
Fork Travel
130mm
Head Tube Diameter
Tapered
Headset
Knock Block, integrated cartridge bearing
Handlebar
Bontrager Alloy, 31.8mm, 15mm rise, 750mm width
Stem
Bontrager Rhythm Comp, 31.8mm, Knock Block, 0°, 60mm on S, 70mm on M/ML/L, 80mm on XL
Grips
Bontrager XR Trail Comp, nylon lock-on
Brakes
Shimano MT200, Shimano RT56 6 bolt 180mm rotors
Brake Levers
Shimano MT200
Drivetrain
1x
Shifters
Shimano Deore M6000, 10-speed
Front Derailleur
None
Rear Derailleur
Shimano Deore M6000, mid cage, 42 tooth max cog
Chainguide
Yes
Cranks
FSA 310, 170mm length
Chainrings
15 tooth
Pedals
VP-536, nylon platform
Chain
KMC X10, 10-speed
Cassette
Shimano HG500, 11-42 tooth, 10-speed
Rims
Bontrager Kovee, double-wall, tubeless ready, 32 hole, 23mm width, presta valve
Hubs
Front: Formula DC-511, 6 bolt, Boost110, 15mm thru axle
Rear: Bontrager Alloy, sealed bearing, alloy axle, 6 bolt, Shimano 8/9/10 freehub, Boost148, 12mm thru axle
Spokes
DT Swiss 14g, black
Tires
Bontrager XR3 Comp, wire bead, 30 TPI, 27.5" x 2.35''
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
TranzX JD-YSP18, internal routing
Travel: 100mm on S, 130mm on M/ML/L/XL
Seatpost Diameter
31.6mm
Seatpost Clamp
Standard single bolt
Rear Dropout / Hub Dimensions
12mm x 148mm
Max. Tire Size

Bottle Cage Mounts
Yes
Colors
Matte Anthracite
Warranty
Lifetime frame, five year swingarm warranty
Weight
52 lb 10.3 oz (23,880 g)
Miscellaneous
Weight given for size M, with inner tubes
Total 300lb weight limit
Active Braking Pivot
Knock Block anti-fork rotation protection
Mino Link adjustable geometry
Control Freak internal routing
Price
$4,799.99
