2022 Pivot Shuttle SL Team WC E-Bike

(discontinued)

Discontinued

c70 photo 5423.jpg?VersionId=QcVQaJyQR 7y7Ce3y

s1600 photo 654972.jpg?VersionId=VZNKY1aYjQWG4O4zVFU TWALrjtjHd

s1600 photo 487774.jpg?VersionId=eMo82rGiYWreNor2ujSM

s1600 photo 986659.jpg?VersionId=eHel4n6Dm6aGRDNfNKb8wh.BzGjN1M

Pivot

Where To Buy
	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free U.S. shipping on everything. International shipping available. Some exclusions apply.	Browse available E-Bikes
	Free shipping on orders over $50 (contiguous U.S. only). International shipping available. Some exclusions apply.	Browse available E-Bikes

Specifications

Product

Pivot Shuttle SL Team WC E-Bike

Model Year

2022

Intended Use

Trail

Rider

Unisex

Sizes and Geometry

SM (Low, High)

MD (Low, High)

LG (Low, High)

XL (Low, High)

View Full Geometry

Size	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	598mm, 597mm	632mm, 631mm	646mm, 645mm	660mm, 659mm
Head Tube Angle	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.4°
Head Tube Length	95mm	112mm	117mm	130mm
Seat Tube Angle	76.0°, 76.5°	76.0°, 76.5°	76.0°, 76.5°	76.8°, 77.2°
Seat Tube Length	368mm	394mm	432mm	470mm
Bottom Bracket Height	347mm (27mm drop), 352mm (21.4mm drop)	347mm (27mm drop), 352mm (21.3mm drop)	347mm (27mm drop), 352mm (21.2mm drop)	347mm (27mm drop), 352mm (21.2mm drop)
Chainstay Length	432mm, 430mm	432mm, 430mm	434mm, 432mm	438mm, 436mm
Wheelbase	1186mm, 1185mm	1223mm, 1222mm	1240mm, 1239mm	1272mm, 1271mm
Standover	665mm, 674mm	668mm, 677mm	674mm, 682mm	678mm, 687mm
Reach	435mm, 439mm	465mm, 469mm	475mm, 482mm	500mm, 504mm
Stack	610mm, 607mm	626mm, 622mm	630mm, 626mm	642mm, 638mm
Additional Info	Geometry adjustable via flip chip in upper linkage

Sizes Additional Info

Geometry adjustable via flip chip in upper linkage

View Full Geometry

Size	SM (Low, High)	MD (Low, High)	LG (Low, High)	XL (Low, High)
Top Tube Length	598mm, 597mm	632mm, 631mm	646mm, 645mm	660mm, 659mm
Head Tube Angle	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.5°	65.0°, 65.4°
Head Tube Length	95mm	112mm	117mm	130mm
Seat Tube Angle	76.0°, 76.5°	76.0°, 76.5°	76.0°, 76.5°	76.8°, 77.2°
Seat Tube Length	368mm	394mm	432mm	470mm
Bottom Bracket Height	347mm (27mm drop), 352mm (21.4mm drop)	347mm (27mm drop), 352mm (21.3mm drop)	347mm (27mm drop), 352mm (21.2mm drop)	347mm (27mm drop), 352mm (21.2mm drop)
Chainstay Length	432mm, 430mm	432mm, 430mm	434mm, 432mm	438mm, 436mm
Wheelbase	1186mm, 1185mm	1223mm, 1222mm	1240mm, 1239mm	1272mm, 1271mm
Standover	665mm, 674mm	668mm, 677mm	674mm, 682mm	678mm, 687mm
Reach	435mm, 439mm	465mm, 469mm	475mm, 482mm	500mm, 504mm
Stack	610mm, 607mm	626mm, 622mm	630mm, 626mm	642mm, 638mm
Additional Info	Geometry adjustable via flip chip in upper linkage

Wheel Size

29"

E-Bike Class

Class 1: Pedal Assist (Pedelecs)

Motor

FAZUA RIDE 60, 43V, 60 Nm max torque, 250 W continuous power, 450 W max power

Battery

Integrated, non-removable unless motor is removed; second 210 Wh range extender battery available

Battery Capacity

430 Wh

Display/Remote

FAZUA LED Hub top tube display with USB-C port; FAZUA Ring Control remote; Bluetooth and ANT+ connectivity

Modes

Breeze, River, Rocket; plus Boost function and Walk Assist

Max Speed with Assist

20 mph (32 km/h)

Frame Material

Carbon Fiber

Frame Material Details

Hollow Core carbon front and rear triangles; molded chainstay, seatstay, and down tube protection

Rear Travel

132mm

Rear Shock

FOX FLOAT DPS Factory, Kashima coating, trunnion mount, 185mm x 55mm

Fork

FOX FLOAT 34 Factory E-MTB, FIT4 damper, Kashima coating, 44mm offset

Fork Travel

140mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Pivot Precision, sealed cartridge bearings, ZS44 upper, ZS56 lower

Handlebar

Phoenix Team Low Rise Carbon, 780mm width

Stem

Phoenix Team Enduro/Trail

Grips

Phoenix Factory, lock-on

Brakes

Shimano XTR M9120, 4-piston, Galfer 180mm rotors

Brake Levers

Shimano XTR M9120

Drivetrain

Shifters

Shimano XTR M9100, 12-speed, I-SPEC EV mounting bracket

Front Derailleur

None

Rear Derailleur

Shimano XTR M9100, 12-speed, SGS cage

Chainguide

Upper slider

Cranks

ROTOR eKAPIC E-MTB

Chainrings

ROTOR eKAPIC E-MTB, 32 tooth

Pedals

None

Chain

Shimano XTR M9100, 12-speed

Cassette

Shimano XTR M9100, 12-speed, 10-51 tooth

Rims

Reynolds Blacklabel XC, 309 30mm inner width front, 289 28mm inner width rear

Hubs

Industry Nine Hydra, 15x110mm Boost front, 12x157mm SuperBoost rear with MICRO SPLINE driver

Spokes

Tires

Maxxis Rekon, 3C MaxxTerra compound, EXO casing, TR, 29" x 2.4” WT

Saddle

WTB Volt World Cup (for Pivot/Phoenix), medium width, carbon rails

Seatpost

KS LEV-Ci dropper
Drop: 150mm (SM), 175mm (MD-XL)

Seatpost Diameter

31.6mm

Seatpost Clamp

Single bolt, 36.4mm

Rear Dropout / Hub Dimensions

12x157mm SuperBoost

Max. Tire Size

29" x 2.4"

Bottle Cage Mounts

One inside front triangle, plus accessory mounts under top tube

Colors

Desert Sage Green, Blue Denim

Warranty

10 years frame; 5 years Pivot/Phoenix components; 1 year paint/finish

Weight

36 lb 4 oz (16,443 g)

Miscellaneous

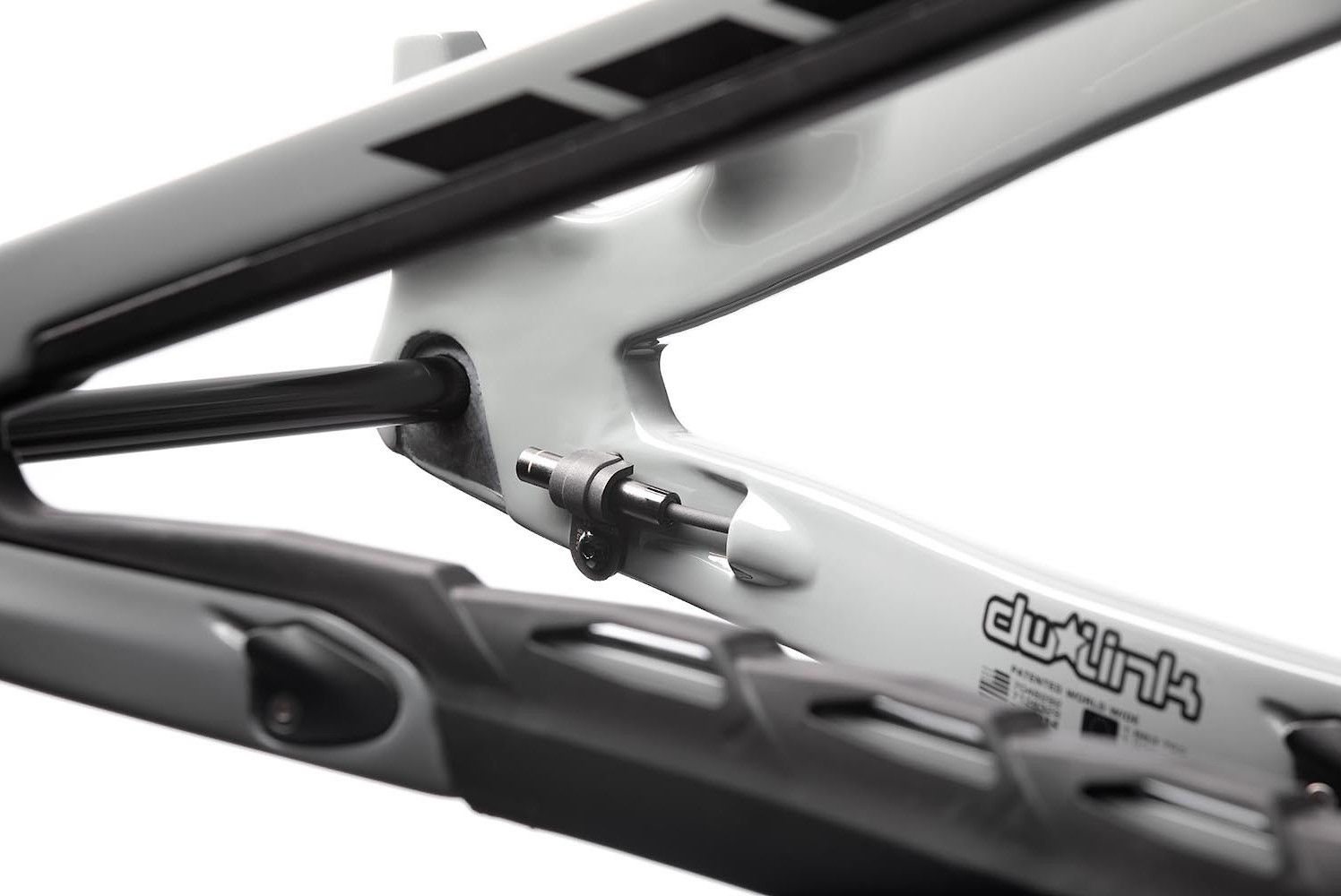

• dw-link rear suspension design

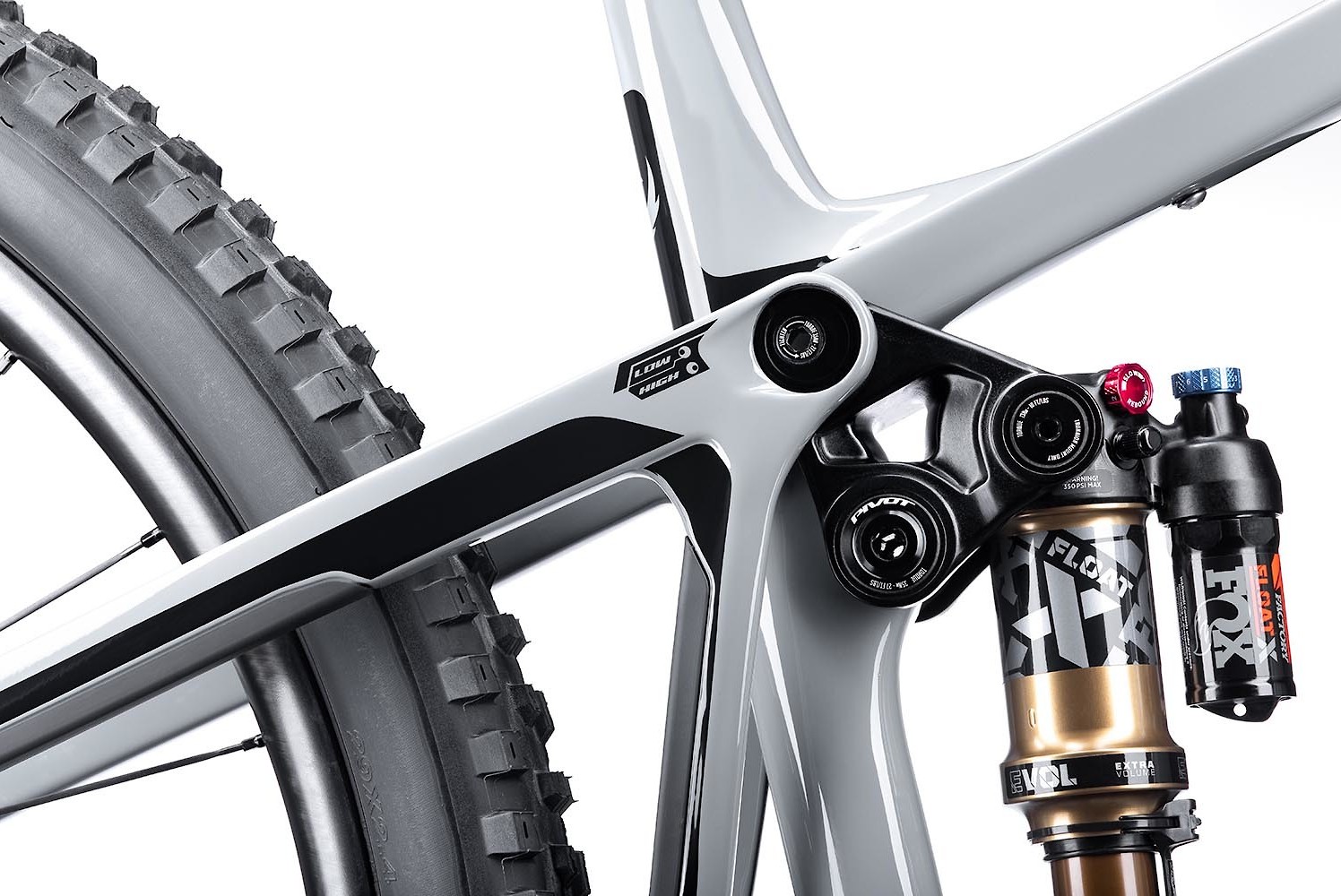

• Geometry adjustable via flip chip in upper linkage
• Cable Port System internal cable routing
• SRAM UDH (Universal Derailleur Hanger)
• Power settings customizable via FAZUA Mobile App
• European price: 12599 EUR

Price

$11,999.00
