2021 Mondraker Play 20 E-Bike
(discontinued)

Discontinued
s1600 photo 948523.jpg?VersionId=nRV40nEn75dY
c70 photo 948523
c70 play 20 02.jpg?VersionId=emQIHpgaE73m3 Q3o2YAPV3
c70 photo 262705
c70 play 20 04
c70 play 20 05.jpg?VersionId=6HIjDKC
s1600 photo 948523.jpg?VersionId=nRV40nEn75dY s1600 play 20 02.jpg?VersionId=I.vAy3ug s1600 photo 262705 s1600 play 20 04.jpg?VersionId=NWxSvOHLxjHBSOoa8Uo11cBKl s1600 play 20 05.jpg?VersionId=4c4rdU4nn2KG2goZPSf 2DI
Related:
Mondraker
Where To Buy
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (continental U.S. only).
International shipping available. Some exclusions apply.
$3,799.00
Free U.S. shipping on everything.
International shipping available. Some exclusions apply.
Free shipping on orders over $50 (contiguous U.S. only).
International shipping available. Some exclusions apply.
Free shipping on orders over $69 (continental U.S. only).
International shipping available. Some exclusions apply.

Specifications

Product
Mondraker Play 20 E-Bike
Model Year
2021
Intended Use
Cross Country
Trail
Rider
Kids
Sizes and Geometry
One Size
View Full Geometry
Sizes Additional Info

Wheel Size
Other: 20"
E-Bike Class
Class 1: Pedal Assist (Pedelecs)
Motor
Mahle-Ebikemotion X-35 rear hub
Battery
Mahle-Ebikemotion, integrated, non-removable
Battery Capacity
250 Wh
Display/Remote
Mahle-Ebikemotion
Modes
3
Max Speed with Assist
15.6 mph (25 km/h)
Frame Material
Aluminum
Frame Material Details
Play 6061 Hydroformed Alloy Stealth Evo
Rear Travel
Hardtail
Rear Shock
None
Fork
MDK 20 Kid, rigid alloy
Fork Travel
None (rigid)
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Onoff Saturn, sealed angular contact bearings
Handlebar
MDK XC 1.0, 6061 alloy, 25mm rise, 580mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Stem
MDK XC, 6061 forged alloy, 35mm length, 31.8mm bar clamp, 0° rise
Grips
Kids
Brakes
Tektro Auriga HDM291, 2-piston, 160mm 6-bolt rotors
Brake Levers
Tektro Auriga HDM291
Drivetrain
1x
Shifters
Shimano Alivio M3100, 9-speed, RAPIDFIRE+
Front Derailleur
None
Rear Derailleur
Shimano Alivio M3100, 9-speed, SGS cage, SHADOW RD
Chainguide
None
Cranks
Samox, 155mm length
Chainrings
Samox, direct mount, steel, 28 tooth
Pedals
None
Chain
Shimano HG53, 9-speed
Cassette
Shimano Alivio HG400, 9-speed, 11-36 tooth, HYPERGLIDE
Rims
MDK-XP1, 23mm internal width, tubeless ready, 32 hole
Hubs
Front: Formula DC20LW, 9x135mm

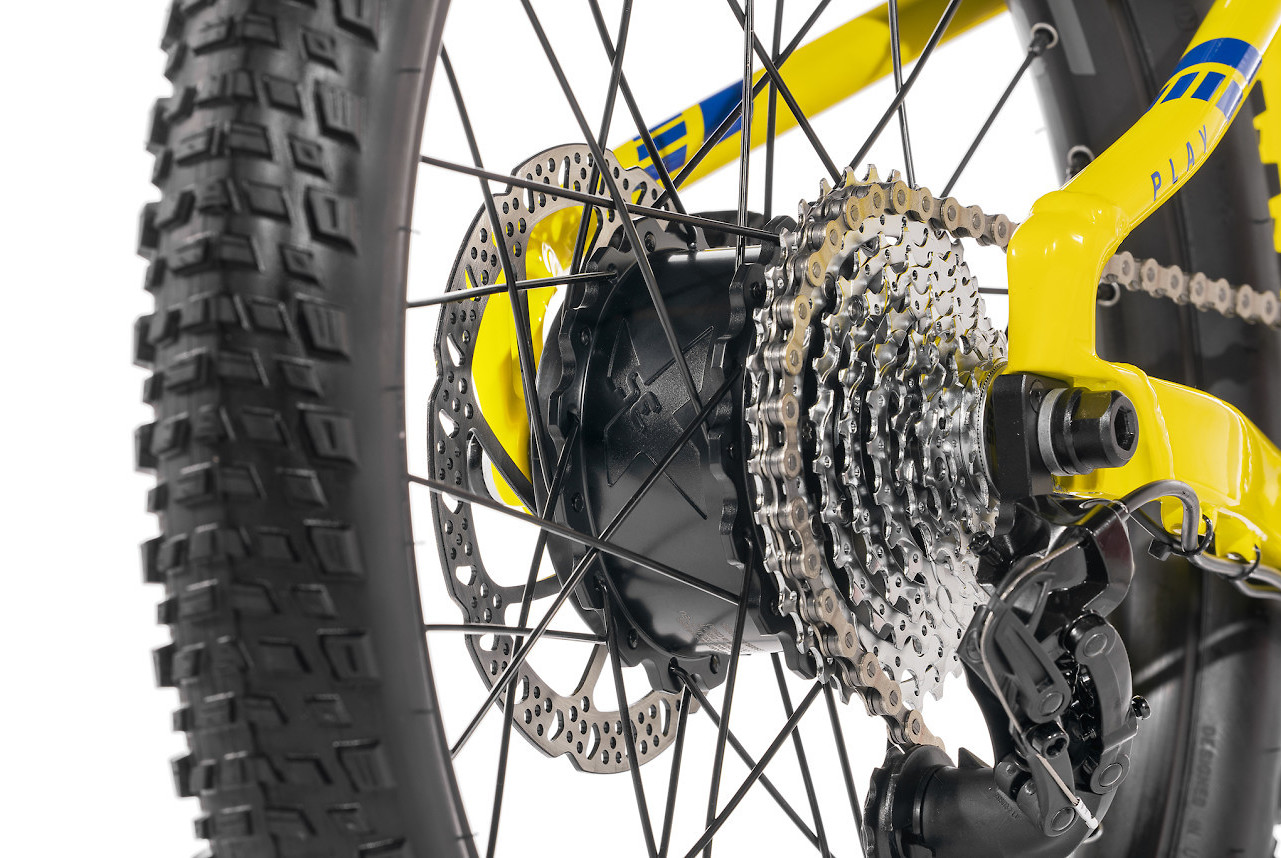

Rear: Mahle-Ebikemotion X-35, 9mm, HG driver
Spokes
CN round stainless steel
Tires
Kenda Booster, single compound, 30 TPI, wire bead, 20" x 2.4"
Saddle
MDK Kids
Seatpost
Pivotal
Seatpost Diameter

Seatpost Clamp
Single bolt
Rear Dropout / Hub Dimensions
9mm quick release
Max. Tire Size

Bottle Cage Mounts
None
Colors
Yellow
Warranty
Dependent on country of purchase
Weight
35 lb 0.9 oz (15,900 g)
Miscellaneous
- HHG internal cable routing
- European price: 2200 EUR
Price
N/A
More Info

mondraker.com
