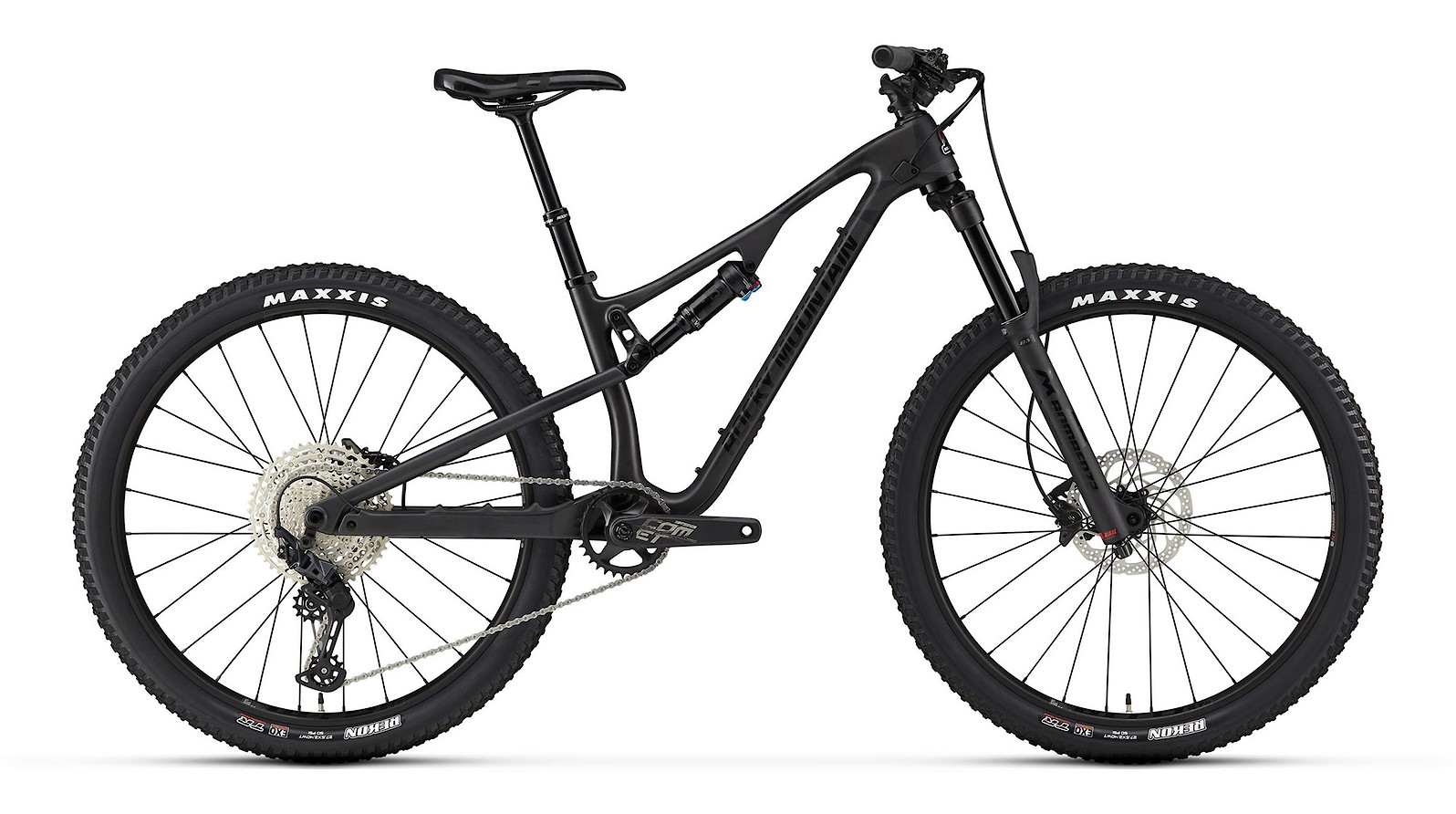

2022 Rocky Mountain Element Carbon 30 Bike

Views:
2022 Rocky Mountain Element Carbon 30 (29")
2022 Rocky Mountain Element Carbon 30 Bike 2022 Rocky Mountain Element Carbon 30 Bike
Create New Tag

Compare to other Bikes

Need more info? View our Trail Mountain Bikes buyer's guide.

Specifications

Product Rocky Mountain Element Carbon 30 Bike
Model Year 2022
Riding Type Trail
Rider Unisex
Sizes and Geometry
XS (slack, steep), SM (slack, steep), MD (slack, steep), LG (slack, steep), XL (slack, steep) View Geometry
Size XS (slack, steep) SM (slack, steep) MD (slack, steep) LG (slack, steep) XL (slack, steep)
Top Tube Length 542mm, 541mm 577mm, 575mm 605mm, 603mm 632mm, 630mm 664mm, 662mm
Head Tube Angle 64.7°, 65.5° 65.0°, 65.8° 65.0°, 65.8° 65.0°, 65.8° 65.0°, 65.8°
Head Tube Length 90mm 105mm 115mm 125mm 135mm
Seat Tube Angle 75.7°, 76.5° 76.0°, 76.8° 76.0°, 76.8° 76.0°, 76.8° 76.0°, 76.8°
Seat Tube Length 355mm 380mm 420mm 445mm 480mm
Bottom Bracket Height 28mm drop, 19mm drop 47mm drop, 36mm drop 47mm drop, 36mm drop 47mm drop, 36mm drop 47mm drop, 36mm drop
Chainstay Length 426mm, 425mm 436mm, 435mm 436mm, 435mm 436mm, 435mm 436mm, 435mm
Wheelbase 1127mm 1173mm 1202mm 1231mm 1265mm
Standover 769mm, 772mm 810mm, 813mm 808mm, 811mm 806mm, 810mm 804mm, 808mm
Reach 397mm, 405mm 425mm, 433mm 450mm, 458mm 475mm, 483mm 505mm, 513mm
Stack 561mm, 566mm 606mm, 610mm 615mm, 619mm 624mm, 628mm 633mm, 637mm
* Additional Info XS has 27.5" wheels; SM-XL have 29" wheels. Geometry adjustable via RIDE-4 flip chip at rear shock mount. Measurements with 2 values represent RIDE-4 geometry's Slackest and Steepest configurations; see Rocky Mountain's website for intermediate RIDE-4 geometry values.
Wheel Size 27.5" (650b), 29"
Frame Material Carbon Fiber
Frame Material Details SMOOTHWALL carbon front and rear triangles; molded chainstay, seatstay, and down tube protection
Rear Travel 120mm
Rear Shock FOX FLOAT DPS Performance, size-specific tune, 190mm x 45mm
Fork Marzocchi Z2, FLOAT air spring, EVOL, Rail damper, 44mm offset
Fork Travel 130mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset FSA Orbit No.57E, sealed bearings
Handlebar Rocky Mountain AM, 780mm width, 25mm rise, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Stem Rocky Mountain 31.8 XC, 50mm length, 5° rise, 31.8mm bar clamp
Grips Rocky Mountain Light, lock-on
Brakes Shimano MT4100, 2-piston, resin pads, Shimano RT30 180mm rotors
Brake Levers Shimano MT4100
Drivetrain 1x
Shifters Shimano SLX M7100, 12-speed
Front Derailleur None
Rear Derailleur Shimano SLX M7100, 12-speed
ISCG Tabs None
Chainguide None
Cranks Shimano Deore, 24mm spindle, 170mm length
Chainrings Shimano Deore, 32 tooth
Bottom Bracket FSA BB92, 92mm press-fit
Pedals None
Chain Shimano Deore M6100, 12-speed
Cassette Shimano Deore M6100, 12-speed, 10-51 tooth
Rims WTB ST Light i27 TCS 2.0, tubeless ready (tape and valves included), 28 hole
Hubs Shimano MT410, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes Stainless steel, 2.0
Tires Maxxis Rekon, EXO, TR, 2.4" WT
Saddle WTB Volt, 142mm width
Seatpost Rocky Mountain Toonie dropper
Drop: 125mm (XS/SM), 150mm (MD), 170mm (LG/XL)
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt, 34.9mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size
Bottle Cage Mounts 29: two inside front triangle
27.5": one inside front triangle, plus accessory mounts on down tube
Colors Carbon/Black
Warranty 5 years frame; 1 year paint, decals, and frame hardware
Weight 29 lb 15.4 oz (13,590 g)
Miscellaneous • XS has 27.5" wheels; SM-XL have 29" wheels
• Geometry and suspension rate adjustable via RIDE-4 flip chip at rear shock mount
• Internal cable routing
Price $4,259
