2022 Pivot Mach 4 SL Race XT Bike

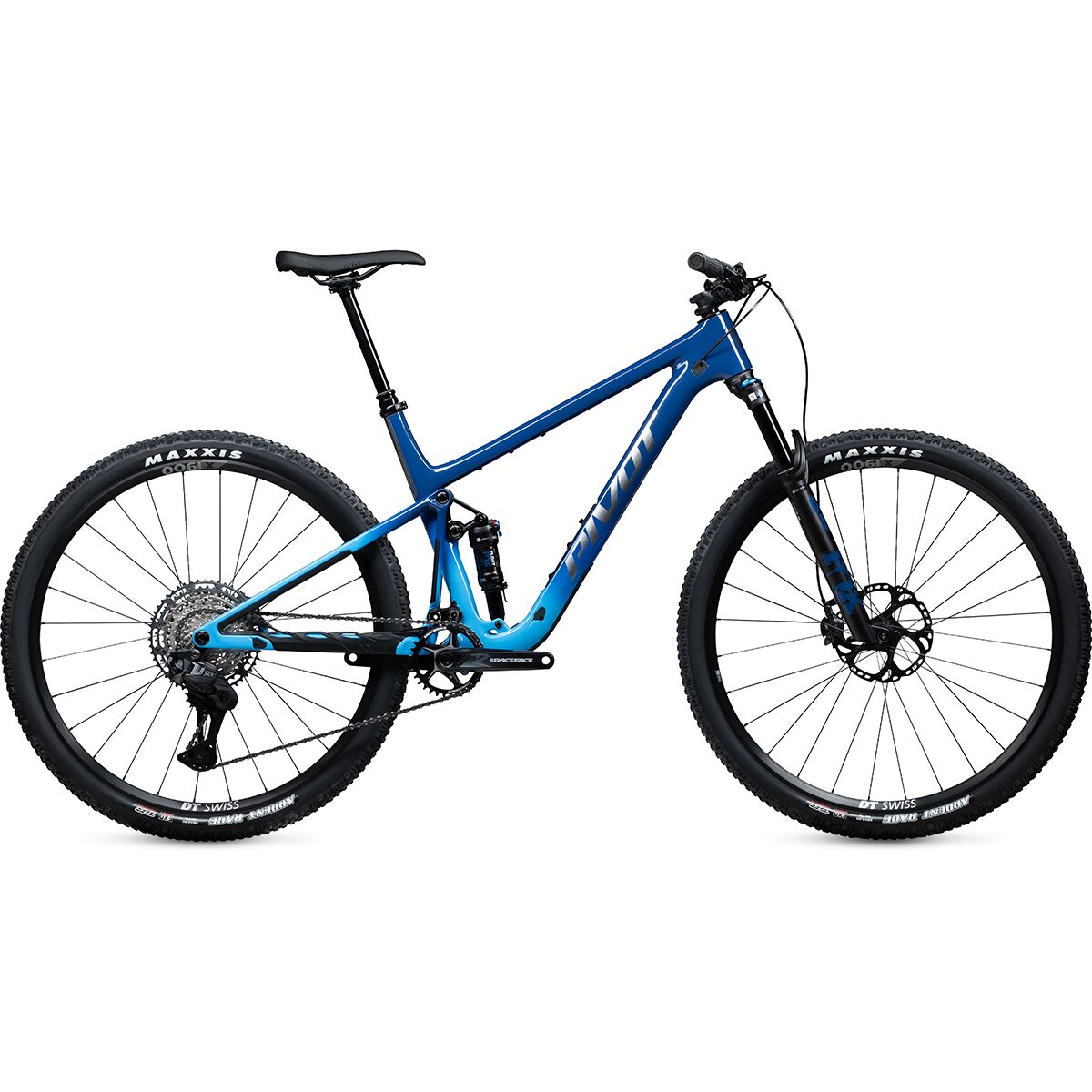

2022 Pivot Mach 4 SL (Greystorm, Team XX1 AXS build shown)
2022 Pivot Mach 4 SL Race XT Bike 2022 Pivot Mach 4 SL Race XT Bike
Create New Tag

Compare to other Bikes

Need more info? View our Cross Country Mountain Bikes or Trail Mountain Bikes buyer's guides.


Product Pivot Mach 4 SL Race XT Bike
Model Year 2022
Riding Type Cross Country, Trail
Rider Unisex
Sizes and Geometry
XS, SM, MD, LG, XL View Geometry
Top Tube Length 575mm 588mm 616mm 640mm 671mm
Head Tube Angle 67.5° 67.5° 67.5° 67.5° 67.5°
Head Tube Length 85mm 95mm 108mm 119mm 140mm
Seat Tube Angle 73.5° 73.5° 73.5° 73.5° 73.5°
Seat Tube Length 356mm 394mm 419mm 457mm 502mm
Bottom Bracket Height 334mm 334mm 334mm 334mm 334mm
Chainstay Length 431mm 431mm 431mm 431mm 431mm
Wheelbase 1103mm 1116mm 1146mm 1170mm 1203mm
Standover 623mm 664mm 696mm 699mm 722mm
Reach 392mm 402mm 427mm 447mm 472mm
Stack 589mm 599mm 611mm 622mm 641mm
Wheel Size 29"
Frame Material Carbon Fiber
Frame Material Details Hollow Core Molding Technology Carbon front and rear triangles; cold-forged alloy linkages; molded chainstay, seatstay, and down tube protection
Rear Travel 100mm
Rear Shock FOX FLOAT DPS Performance, 190mm x 40mm
Fork FOX FLOAT 34 Step-Cast (SC) Performance, GRIP damper, 44mm offset
Fork Travel 120mm
Head Tube Diameter Tapered, 1.125" top, 1.5" bottom
Headset Pivot Precision, sealed integrated cartridge bearings
Handlebar Phoenix Race Low Rise Aluminum, 780mm width
Stem Phoenix Team XC/Trail
Grips Phoenix Factory, lock-on
Brakes Shimano SLX M7100, 2-piston, Shimano SLX 6-bolt 160mm rotors
Brake Levers Shimano SLX M7100
Drivetrain 1x
Shifters Shimano SLX M7100, 12-speed, I-SPEC EV bracket
Front Derailleur None
Rear Derailleur Shimano Deore XT M8100, 12-speed, SGS cage
ISCG Tabs ISCG05 (front two inserts only)
Chainguide None
Cranks Race Face Ride
Chainrings Race Face Ride, 32 tooth
Bottom Bracket Press-fit BB92 (PF92)
Pedals None
Chain Shimano SLX M7100, 12-speed
Cassette Shimano SLX M7100, 12-speed, 10-51 tooth
Rims DT Swiss M1900, 25mm width
Hubs DT Swiss 370, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes DT Swiss M1900 wheelset
Tires Maxxis Ardent Race, EXO, TR, 120 TPI, 29" x 2.2"
Saddle Phoenix WTB Race Volt, narrow width
Seatpost FOX Transfer Performance Elite dropper
Drop: 100mm (XS), 125mm (SM/MD/LG), 150mm (XL)
Seatpost Diameter 30.9mm
Seatpost Clamp Single bolt, 34.9mm
Rear Dropout / Hub Dimensions 148x12mm Boost
Max. Tire Size 29" x 2.35-2.4"
Bottle Cage Mounts One inside front triangle on all sizes; XL can fit two inside front triangle
Colors Greystorm, Black Sunset
Warranty 10 years frame, 1 year paint and finish, 5 years Phoenix components
Weight N/A
Miscellaneous • dw-link rear suspension design
• Internal cable routing with Cable Port System
• SRAM UDH (Universal Derailleur Hanger)
• Frame weights start at 1845g
• Photos shows alternate builds
Price $5,999
