2013 Pivot M4X Bike

(discontinued)

Discontinued

Specifications

Product

Pivot M4X Bike

Model Year

2013

Intended Use

Dirt Jump / Slopestyle

Rider

Unisex

Sizes and Geometry

View Full Geometry

Size	S	L
Top Tube Length	22.3	23.5
Head Tube Angle	67.5°	67.5°
Head Tube Length	4.5	4.5
Seat Tube Angle	72.0°	72.0°
Seat Tube Length	15	15
Bottom Bracket Height	12.5	12.5
Chainstay Length	16.5	16.5
Wheelbase	42.1	43.3
Standover	25.5	25.5
Reach	15.33	16.53
Stack	21.46	21.46

Sizes Additional Info

Wheel Size

Frame Material

Aluminum

Frame Material Details

Aluminum Alloy

Rear Travel

100mm

Rear Shock

Fox Adaptive Logic Kashima with Boost Valve and Compression Tuning

Fork

100mm

Fork Travel

Fox

Head Tube Diameter

1.5” Tapered

Headset

Handlebar

Stem

Grips

Brakes

Brake Levers

Drivetrain

Shifters

Front Derailleur

Rear Derailleur

Shimano XT Deore

ISCG Tabs

ISCG 05

Chainguide

MRP

Cranks

Shimano XT Deore

Chainrings

Bottom Bracket

Hollow Box One Piece, 73mm Threaded Shell

Pedals

N/A

Chain

Cassette

Rims

DT Swiss

Hubs

Spokes

Tires

Kenda

Saddle

Seatpost

Seatpost Diameter

Seatpost Clamp

Quick Release

Rear Dropout / Hub Dimensions

142mm x 12mm

Max. Tire Size

Bottle Cage Mounts

Colors

BLack

Warranty

Weight

N/A

Miscellaneous

Price

$2,399.00

More Info

Review This Product

What do you think?

More Products

Deals

2013 Pivot M4X Bike

(discontinued)

Specifications

More Products

2025 Polygon Trid ZZ Bike

2024 Chromag Monk Bike

2024 Chromag Signature Bike

2025 Commencal Absolut Pike Bike

2024 Intense DJ Bike

2024 Evil Faction II Bike

2025 Specialized P. 3 Bike

2025 Marin San Quentin 27.5" 3 Bike

Deals

Deals


Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $50 (continental U.S. only). International shipping available. Some exclusions apply. $14,999.00	Buy
Pivot Cycles \| Pivot Shuttle Amp'd Team E-Bike 2026 \| Burgandy Berry Freeze \| L	Pivot Cycles \| Pivot Shuttle Amp'd Team E-Bike 2026 \| Burgandy Berry Freeze \| L $14,999.00	Buy
Pivot Cycles \| Pivot Shuttle Amp'd Pro E-Bike 2026 \| Burgandy Berry Freeze \| M	Pivot Cycles \| Pivot Shuttle Amp'd Pro E-Bike 2026 \| Burgandy Berry Freeze \| M $11,999.00	Buy
Pivot Cycles \| Pivot Shuttle Amp'd Ride E-Bike 2026 \| Burgandy Berry Freeze \| M	Pivot Cycles \| Pivot Shuttle Amp'd Ride E-Bike 2026 \| Burgandy Berry Freeze \| M $9,499.00	Buy
Pivot Cycles \| Pivot Shuttle Lt V3 Team Xx E-Bike 2026 \| Black Royal Purple \| L	Pivot Cycles \| Pivot Shuttle Lt V3 Team Xx E-Bike 2026 \| Black Royal Purple \| L $14,999.00	Buy
Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 Stone Cold \| White \| S	Pivot Cycles \| Pivot Shuttle Lt V3 Pro X0 E-Bike 2026 Stone Cold \| White \| S $12,599.00	Buy
Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply.	Free shipping on orders over $69 (continental U.S. only). International shipping available. Some exclusions apply. $9,499.00	Buy
Pivot Firebird Pro X0 T-Type MX Mountain Bike White Gold, M	Pivot Firebird Pro X0 T-Type MX Mountain Bike White Gold, M $9,499.00	Buy

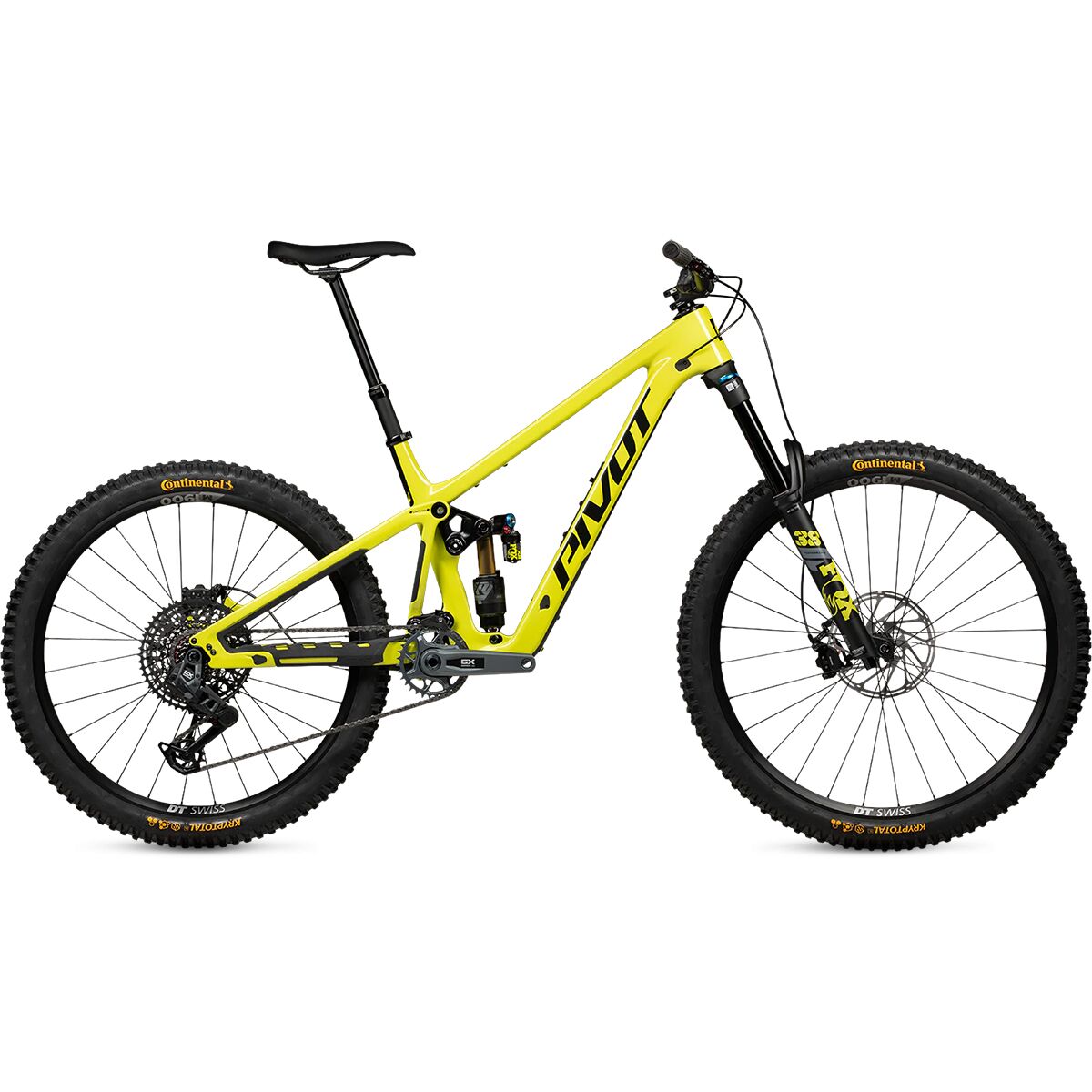

Pivot Firebird Ride Eagle 70/90 MX Mountain Bike YOLO, MD	Pivot Firebird Ride Eagle 70/90 MX Mountain Bike YOLO, MD $6,899.00	Buy

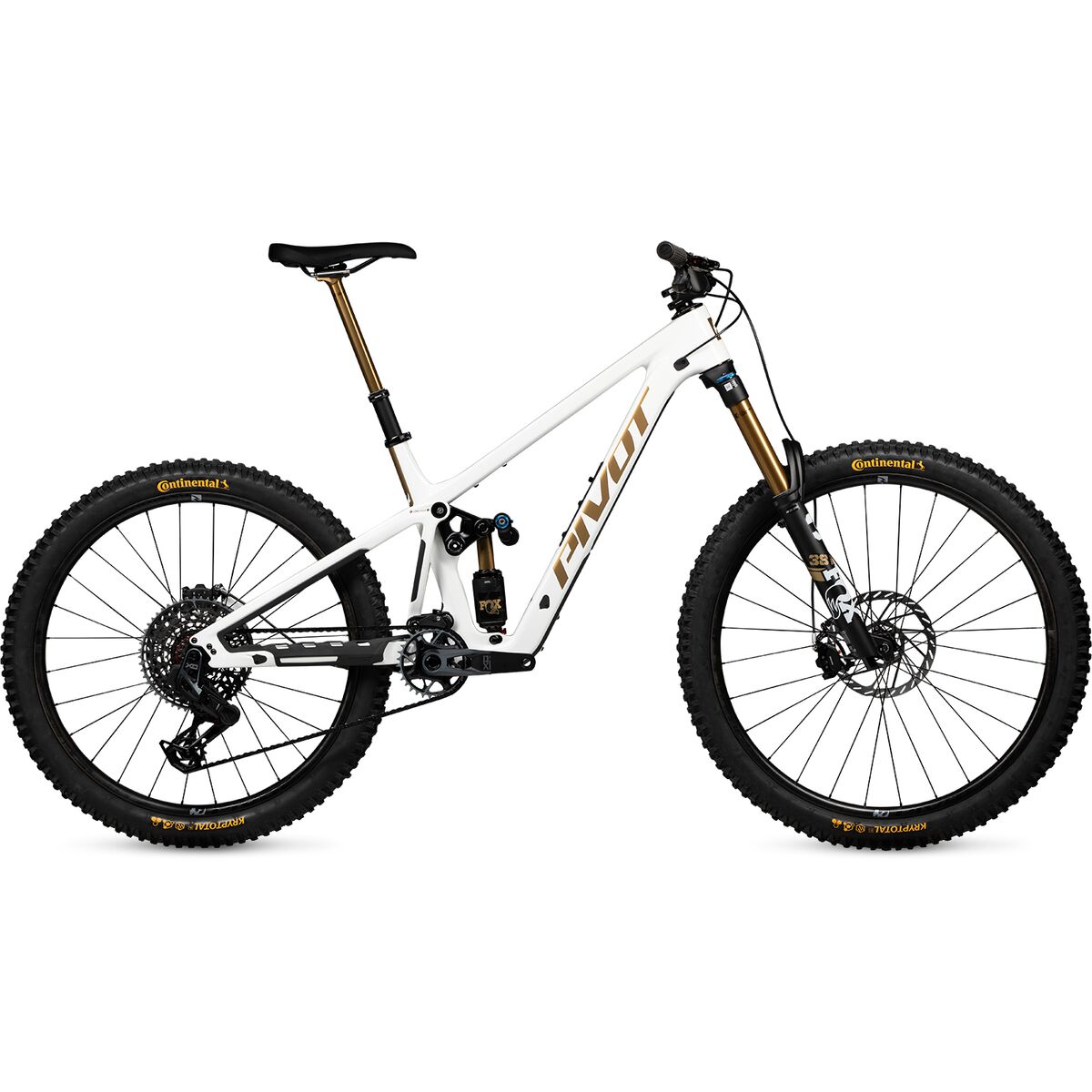

Pivot Firebird Pro X0 T-Type MX Carbon Wheel Mountain Bike White Gold, L	Pivot Firebird Pro X0 T-Type MX Carbon Wheel Mountain Bike White Gold, L $10,899.00	Buy

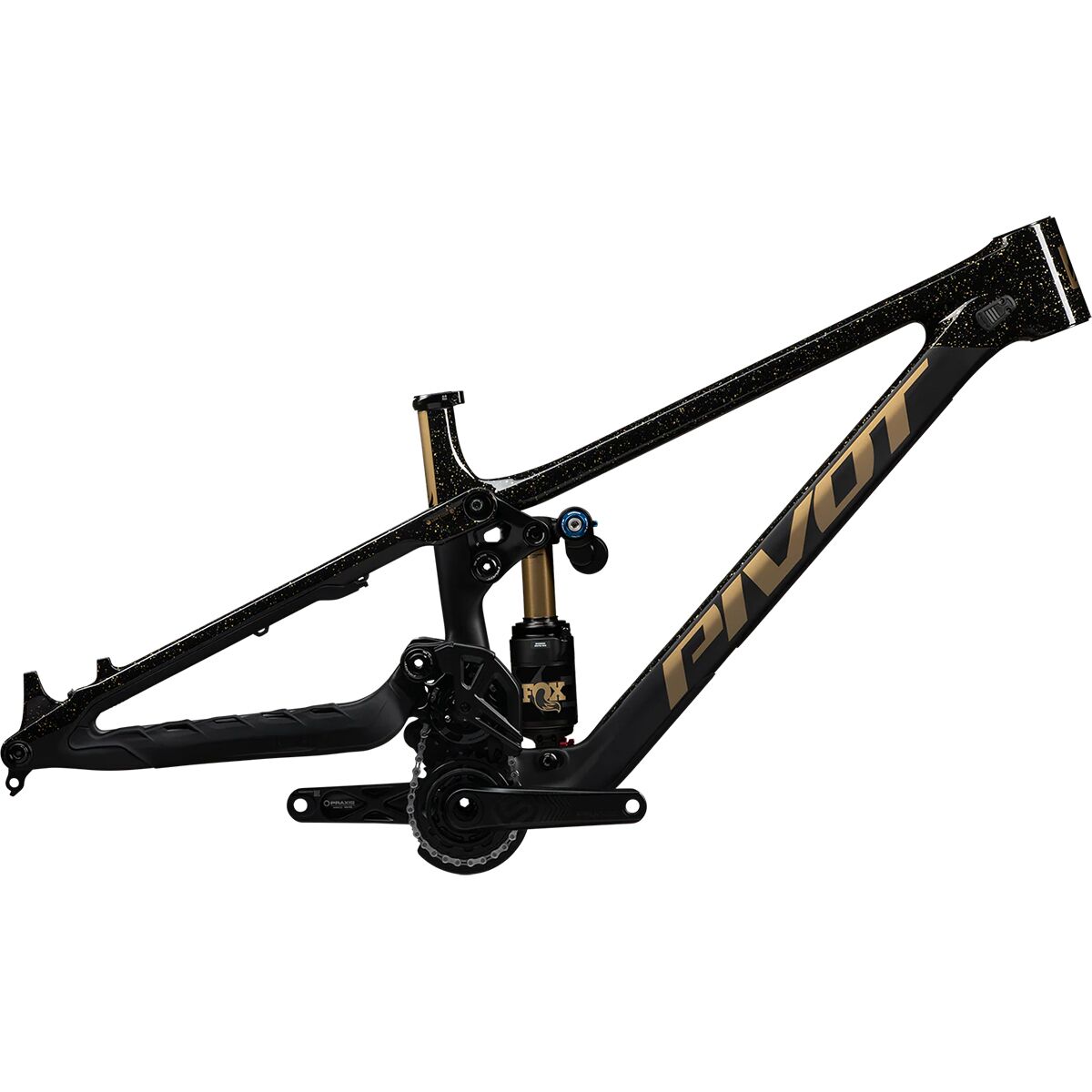

Pivot Phoenix V5 Downhill Frame Black Gold, S2	Pivot Phoenix V5 Downhill Frame Black Gold, S2 $5,199.00	Buy
